Запчасти Case IH 884 (07-38) - POWER TAKE OFF LEVER AND CONNECTIONS, H PATTERN SHIFT (04) - Drive Train

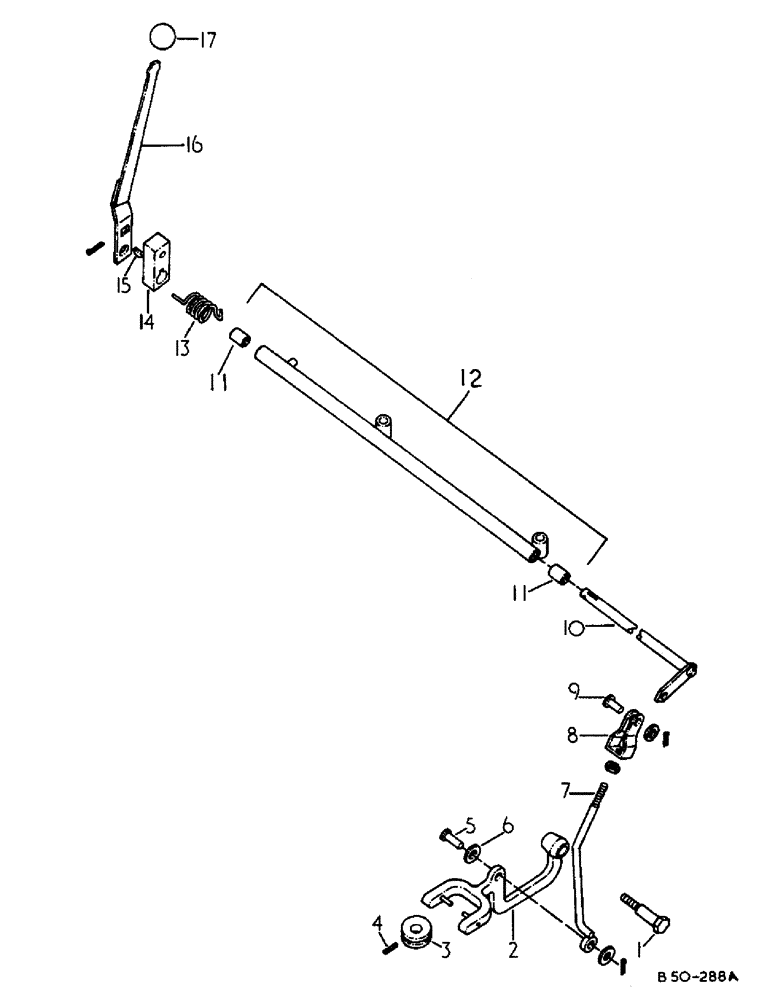

Схема запчастей Case IH 884 - (07-38) - POWER TAKE OFF LEVER AND CONNECTIONS, H PATTERN SHIFT (04) - Drive Train
8
14
12
9
4
13
3
5
10
6
2
17
16
7
11
1
11
15

Артикул

Название

Примечание

Количество

1

401754R1

BOLT,3/8" - 16 x 2.20"

control arm pivot shaft

1шт.

2

401749R2

LEVER ASSY.

LEVER ASSY, control

1шт.

3

530813R2

GUIDE BUSHING

COLLAR, IPTO control

1шт.

4

25215R1

PIN,3/16" x 7/8", Coiled

1шт.

5

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1.060 clevis

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

6

120394

WASHER,3/8", SAE

WASHER, 5/16 x .688 x .051

2шт.

7

3129234R1

ROD ASSY.

ROD ASSY, IPTO control

1шт.

425-115

NUT,5/16"-24, G5

5/16-NF pln type 5

2шт.

8

3129237R1

CLEVIS

IPTO control

1шт.

9

24660R1

CLEVIS PIN,5/16" x .719"

PIN, 5/16 x .719 x .562 clevis

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

10

3129240R1

SHAFT ASSY.

SHAFT ASSY, IPTO control cross over

1шт.

11

528839R1

BUSHING

2шт.

12

3129238R91

SUPPORT ASSY.

SUPPORT W/BUSHING, IPTO control shaft

1шт.

13

NOT USED THIS APPLICATION

1шт.

14

538719R1

PIVOT

handle control

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21903R1

WASHER

.531 x .750 x .054

1шт.

15

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

16

538720R1

LEVER ASSY.

LEVER ASSY, IPTO adj.

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

17

530090R1

KNOB

IPTO hand lever

1шт.

Выбрано товаров: 25
