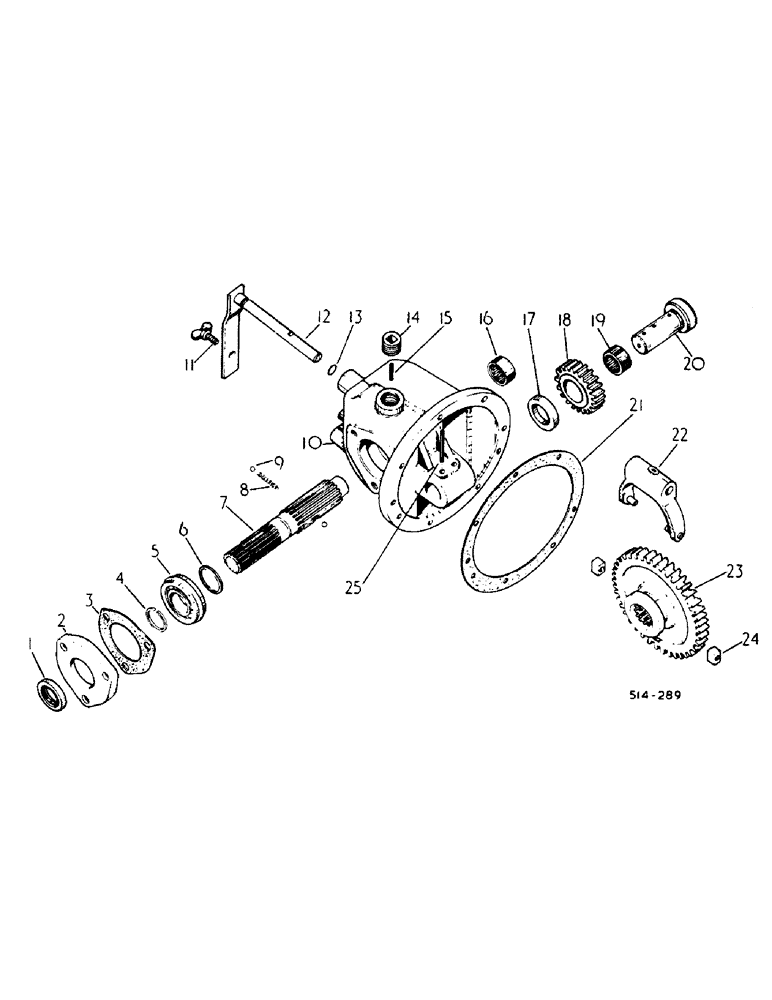

Запчасти Case IH 884 (07-22) - SIDE DRIVE POWER TAKE OFF, FOR TRACTORS WITH DUAL SPEED IPTO (04) - Drive Train

1

381480R91

OIL SEAL

output shaft

1шт.

1

534917R91

OIL SEAL

output shaft

1шт.

2

529327R1

FLANGED BEARING

output shaft brg

1шт.

321316R1

SCREW

1/2-13 x 1-1/4 hex hd cap

3шт.

3

529328R1

GASKET

output shaft brg retainer

1шт.

4

359141R1

RING, SNAP

RING, output shaft brg ret snap

1шт.

5

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, output shaft ball

1шт.

6

573984R1

SNAP RING

RING, sliding gear retaining snap

1шт.

7

67131C1

SHAFT

output

1шт.

8

529329R1

SPRING

driven gear poppet

1шт.

9

17009R1

BALL

9/32 cr stl

2шт.

10

529322R21

HOUSING ASSY.

HOUSING ASSY, side drive PTO

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

11

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW, selector fork shaft arm adj

1шт.

12

65772C1

SHAFT ASSY.

SHAFT W/PRODUCT GRAPHIC, selector fork

1шт.

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW, adj

1шт.

13

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32

1шт.

14

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4 x 14 autom sq soc hd pipe

1шт.

15

19791R1

PIN,1/4" x 1 1/8", Coiled

1шт.

16

529323R91

BEARING, NEEDLE

BEARING, output shaft needle

1шт.

17

67130C1

SPACER

idler gear

1шт.

18

529325R1

GEAR, IDLER

GEAR, side drive PTO idler, 21T

1шт.

19

287057R91

BEARING, NEEDLE

BEARING, idler gear needle

1шт.

20

67129C1

SHAFT

side drive PTO idler gear

1шт.

21

528650R1

GASKET

side drive PTO housing

1шт.

22

529331R1

FORK

ASSY, drive gear selector

1шт.

23

529330R1

GEAR

side drive PTO driven, 44T

1шт.

24

318721R1

BLOCK

selector fork

2шт.

25

618573R1

PIN,1/4" x 2 1/4", Coiled

1шт.

66068C1

GEAR

front clutch cup, 44T

1шт.
