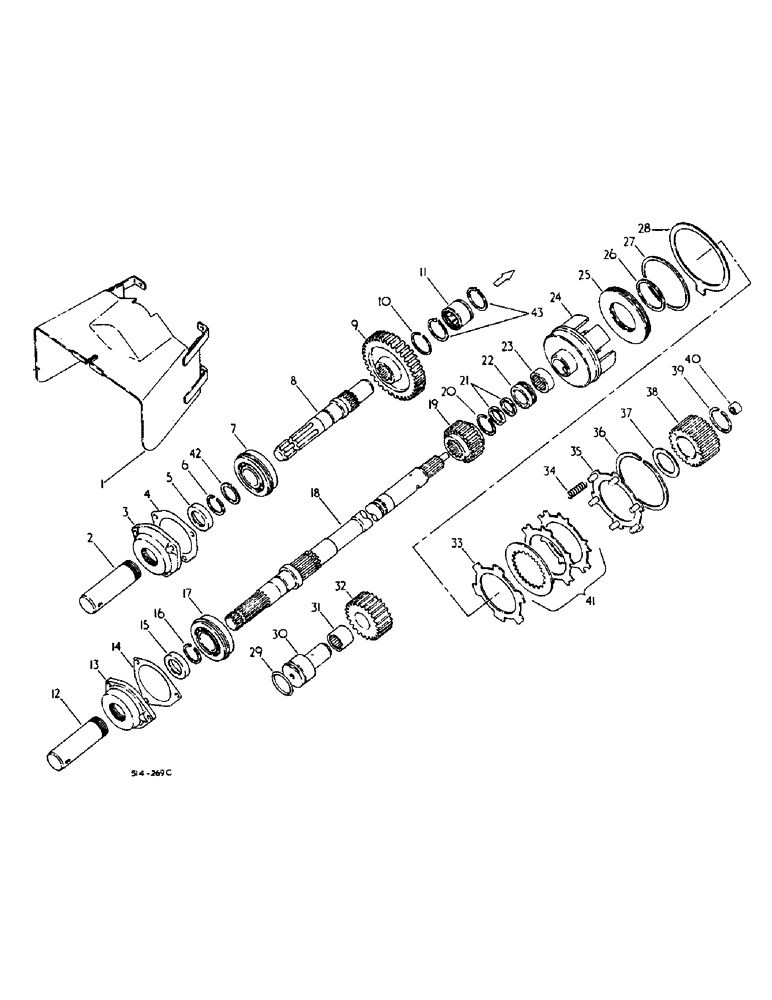

Запчасти Case IH 884 (07-20) - INDEPENDENT POWER TAKE OFF, DUAL SPEED (04) - Drive Train

1

401734R1

GUARD ASSY.

SHIELD ASSY, IPTO safety

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

2

406808R1

TUBE

ASSY, IPTO shaft protection

1шт.

3

401725R2

FLANGED BEARING

IPTO shaft brg, Serial Range: -6377

1шт.

3

1500086C1

FLANGED BEARING

IPTO shaft bearing, Start Serial: 6378

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

4

399843R3

GASKET

shaft brg retainer

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, shaft oil

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, shaft ball

1шт.

8

3113017R1

SHAFT

upper output, Serial Range: -6377

1шт.

8

1500087C1

SHAFT

upper output, Start Serial: 6378

1шт.

9

66192C1

GEAR

driven, 36T

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

RING, driven gear retainer

1шт.

11

112821R91

NEEDLE BEARING

shaft needle, Serial Range: -6377

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

shaft needle, Start Serial: 6378

1шт.

12

406808R1

TUBE

ASSY, IPTO shaft protection

1шт.

13

401725R2

FLANGED BEARING

IPTO shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

14

399843R3

GASKET

shaft brg retainer

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

RING, bearing retainer snap

1шт.

16

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

1шт.

17

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, shaft ball

1шт.

18

66180C2

SHAFT ASSY.

SHAFT ASSY, 1000 RPM, 21 spline

1шт.

19

404232R1

GEAR

lower shaft drive, 21T

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

RING, driven gear retainer

1шт.

21

166972R1

RING

shaft sealing

2шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

23

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING, lower shaft needle

1шт.

24

66068C1

GEAR

clutch cup, 44T, w/side drive P.T.O.

1шт.

24

3125149R1

CUP

clutch, machines w/Kimco 4WD axle and w/outside drive PTO

1шт.

24

1500020C1

CUP

front clutch, machines w/ZF 4WD axle and with outside drive PTO

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

25

401722R1

PISTON

clutch

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, piston seal - inner

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

RING, piston seal - outer

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32

1шт.

30

401726R1

SHAFT

IPTO idler

1шт.

31

570450R91

NEEDLE BEARING

idler shaft needle

1шт.

32

401727R1

PINION

GEAR, idler, 24T

1шт.

33

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

34

66182C1

SPRING

piston return

6шт.

35

66186C92

PLATE ASSY.

PLATE ASSY, clutch backing

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

36

401720R1

CIRCLIP

RING, backing plate snap

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

66183C2

HUB ASSY.,45T

HUB ASSY, clutch

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

RING, snap

1шт.

40

533325R91

BEARING, NEEDLE

BEARING, IPTO driven shaft needle

1шт.

41

3125257R91

PACKAGE

clutch plate service, consists of (6) disc, (5) plate,(1) O-ring, (1) O-ring, (6) spring

1шт.

NSS

NOT SOLD SEPARAT

DISC

6шт.

NSS

NOT SOLD SEPARAT

PLATE

5шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING

1шт.

66182C1

SPRING

6шт.

42

1500085C1

WASHER

1шт.

43

202307R1

SNAP RING,#206, Ext

2шт.

3054841R2

TUBE

CAP, IPTO upper shaft safety

1шт.

1093098R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, speed chart

1шт.

1287945C1

DECAL

PRODUCT GRAPHIC, IPTO overspeed 600 RPM maximum

1шт.
