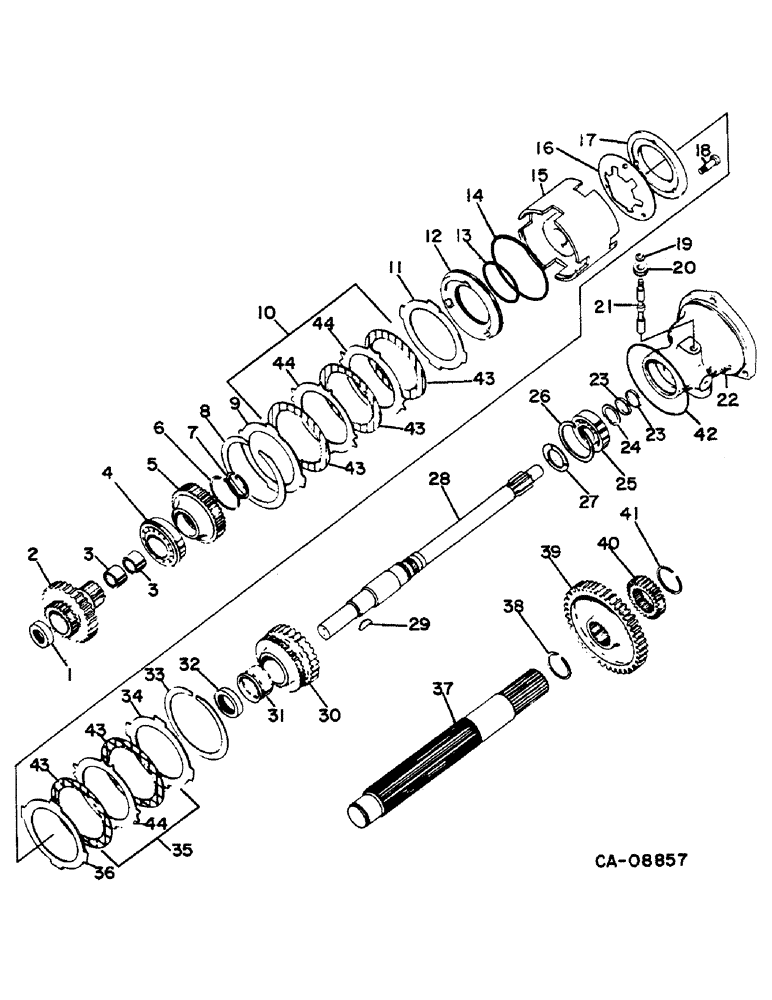

Запчасти Case IH 884 (07-18) - TORQUE AMPLIFIER (04) - Drive Train

1

3118322R91

BEARING, NEEDLE

1шт.

2

3118321R2

PINION

GEAR, direct drive hub, 28T

1шт.

3

550839R91

BEARING, NEEDLE

BEARING, clutch shaft needle

2шт.

4

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING, direct drive gear ball

1шт.

5

404199R3

SPROCKET ASSY.

CARRIER, direct drive clutch disc

1шт.

6

336000R1

SNAP RING,#175, 1.640", Ext

RING, disc carrier retaining

1шт.

7

583976R1

SNAP RING,#125, 1.179", Ext

RING, clutch cup retaining snap

1шт.

8

401720R1

CIRCLIP

RING, backing plate retaining

1шт.

9

402569R1

PLATE

clutch backing

1шт.

10

NSS

NOT SOLD SEPARAT

PACKAGE, ta clutch plate service, order components

1шт.

11

402572R1

PLATE

piston backing

1шт.

12

402570R1

PISTON

direct drive clutch

1шт.

13

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

RING, clutch piston inner

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

RING, clutch piston outer

1шт.

15

538989R2

CUP

direct drive clutch, Serial Range: -8021

1шт.

15

1502339C1

HOUSING

CUP, direct drive clutch, Start Serial: 8022

1шт.

16

402574R1

BELLEVILLE WASHER

WASHER, Belleville, Serial Range: -8021

2шт.

16

402574R1

BELLEVILLE WASHER

WASHER, Belleville, Start Serial: 8022

3шт.

17

402573R1

PLATE

clutch lock-up pressure

1шт.

18

402575R2

SCREW,1/4" - 28 x 1.32"

BOLT, piston return, Serial Range: -8021

3шт.

18

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT, piston return, Start Serial: 8022

3шт.

65240C1

SQUARE NUT

1/4-28 sq mach screw

3шт.

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

3шт.

19

896045R1

SNAP RING,#37, Ext

1шт.

20

531539R1

COLLAR

ta control

1шт.

21

536975R1

STEM

ta control

1шт.

22

531540R5

CAGE

ASSY, IPTO and clutch cup retainer

1шт.

P/N 531540R5, chicago rawhide seal 16061 = P/N 376930R91 made in England seal P/N 3125797R1 which now subs to 1277445C2.

1шт.

23

406275R1

RING

clutch shaft piston

2шт.

24

359141R1

RING, SNAP

RING, clutch shaft brg outer retaining

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, clutch shaft ball

1шт.

26

377911R1

RING, SNAP

RING, clutch shaft brg inner retaining

1шт.

27

402562R1

THRUST WASHER

WASHER, clutch shaft thrust

1шт.

28

1502173C91

SHAFT ASSY.

SHAFT ASSY, clutch, replaces 402558R21

1шт.

When shaft 1502173C91 is furnished for service of shaft 402558R21. IPTO shaft 71230C2 must also be ordered.

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW, 1/4 x 1/4 pln f/pt hdl/hs set

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd

1шт.

29

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff B clutch cup retainer key

1шт.

30

402563R2

PINION

GEAR ASSY, drive

1шт.

31

402566R1

BEARING ASSY

ASSY, sprag

1шт.

32

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SEAL, sprag bore oil

1шт.

33

401720R1

CIRCLIP

RING, backing plate retaining

1шт.

34

402569R1

PLATE

clutch backing, Serial Range: -8021

1шт.

34

1502340C1

PLATE

clutch backing, Start Serial: 8022

1шт.

35

NSS

NOT SOLD SEPARAT

PACKAGE, ta clutch plate service, order components

1шт.

36

402572R1

PLATE

piston backing

1шт.

37

404104R2

COUNTERSHAFT

SHAFT, ta counter

1шт.

38

381486R1

SNAP RING,#187, 1.759", Ext

RING, ta driven gear and pump gear retaining

1шт.

39

404105R1

PINION

GEAR, ta driven, 42T

1шт.

40

404106R1

GEAR

pump driven, 27T

1шт.

41

381486R1

SNAP RING,#187, 1.759", Ext

RING, ta driven gear and pump gear retaining

1шт.

42

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-5/8 x 1/8

1шт.

43

401716R3

DISC

PLATE, clutch driven

6шт.

44

401717R1

PLATE

clutch separator

4шт.

1502338C91

SHIM KIT

PACKAGE, shim service, consists of, Start Serial: 8022

1шт.

NSS

NOT SOLD SEPARAT

SHIM .014 IN.

2шт.

NSS

NOT SOLD SEPARAT

SHIM .024 IN.

2шт.

NSS

NOT SOLD SEPARAT

SHIM .036 IN.

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

1282783C91

PACKAGE

ta heavy duty update for converting tractors w/serial no. 8021 and below to heavy duty design, consists of

1шт.

1502339C1

HOUSING

CUP, clutch

1шт.

1502338C91

SHIM KIT

PACKAGE, shim service

1шт.

1502344C92

PACKAGE

regulator valve service

1шт.

401716R3

DISC

PLATE, clutch driven

6шт.

401717R1

PLATE

clutch separator

4шт.

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT, piston return

3шт.

65240C1

SQUARE NUT

1/4-28 sq mach screw

3шт.

1502340C1

PLATE

clutch backing

2шт.

402563R2

PINION

GEAR ASSY, drive

1шт.

406275R1

RING

clutch shaft piston

2шт.

401621R3

GASKET

clutch hsg top cover

1шт.

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-1/2 class 6

1шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 class 5

1шт.

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

clutch piston inner

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING, clutch piston outer

1шт.

402574R1

BELLEVILLE WASHER

WASHER, Belleville

3шт.
