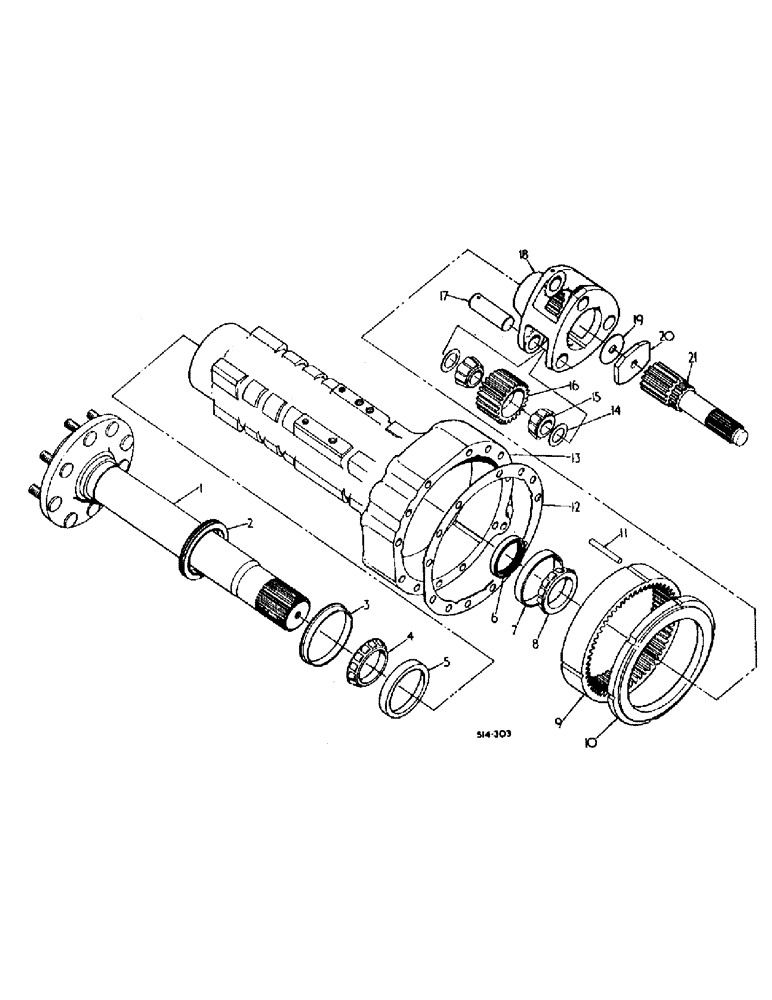

Запчасти Case IH 884 (07-16) - REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

539275R91

4WD AXLE ASSY

AXLE ASSY, rear, utility tractors

2шт.

1

527353R11

AXLE, REAR

AXLE ASSY, rear, row crop tractors

1шт.

P/N 535862R1 sleeve is part of the Axle. 3.130 id 3.62 od. & .700 Wide.

1шт.

1

404345R13

HALF SHAFT

AXLE ASSY, rear, all wheel drive tractors

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

2

105471C1

OIL SEAL

SEAL, rear axle outer oil

2шт.

3

399796R1

SLEEVE

wear

2шт.

4

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

rear axle outer cone

2шт.

5

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, rear axle outer cup

2шт.

6

399798R91

OIL SEAL

SEAL, rear axle inner oil, Replaces: 399798R91

2шт.

7

ST981

BEARING CONE,112.71mm OD x 19.05mm W

BEARING, rear axle inner cup

2шт.

8

ST2175

BEARING, CONE,79.25mm ID x 19.05mm W

BEARING ASSY, rear axle inner cone

2шт.

9

535317R1

GEAR, RING

66T

2шт.

10

114620C1

RING,260mm OD

brake outer disc

2шт.

11

529686R1

DOWEL

PIN, 3/8 x 2-1/4 dowel

6шт.

12

399762R3

GASKET

rear axle carrier

2шт.

13

3123815R2

CARRIER

rear axle LH

1шт.

13

3123816R1

CARRIER

rear axle RH, utility & all wheel drive tractors

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 8

22шт.

13

3123817R2

CARRIER

rear axle LH

1шт.

13

3123818R1

CARRIER

rear axle RH, row crop tractors

1шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

20шт.

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

5/8 x 6-1/4 phc type 8

2шт.

14

65421C2

SHIM KIT

PACKAGE, planet gear shim service, consists of: (3) shim .042, (3) shim .049, (3) shim .056

1шт.

NSS

NOT SOLD SEPARAT

SHIM .042

3шт.

NSS

NOT SOLD SEPARAT

SHIM .049

3шт.

NSS

NOT SOLD SEPARAT

SHIM .056

3шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, planet gear cone

12шт.

16

66128C2

PINION

GEAR, planet

6шт.

17

399812R1

SHAFT

PIN, planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

114613C1

CARRIER

planet gear, consists of: (3) shim .007, (3) shim .012, (3) shim .0299

2шт.

NSS

NOT SOLD SEPARAT

SHIM .007

3шт.

NSS

NOT SOLD SEPARAT

SHIM .012

3шт.

NSS

NOT SOLD SEPARAT

SHIM .0299

2шт.

19

65422C1

SHIM KIT

PACKAGE, rear axle retainer shim

1шт.

20

399748R1

SPACER

planet carrier ret

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-NF x 1-1/2 pln type 8

2шт.

21

404343R1

SHAFT

planetary drive RH

1шт.

21

404342R1

SHAFT

planetary drive LH

1шт.
