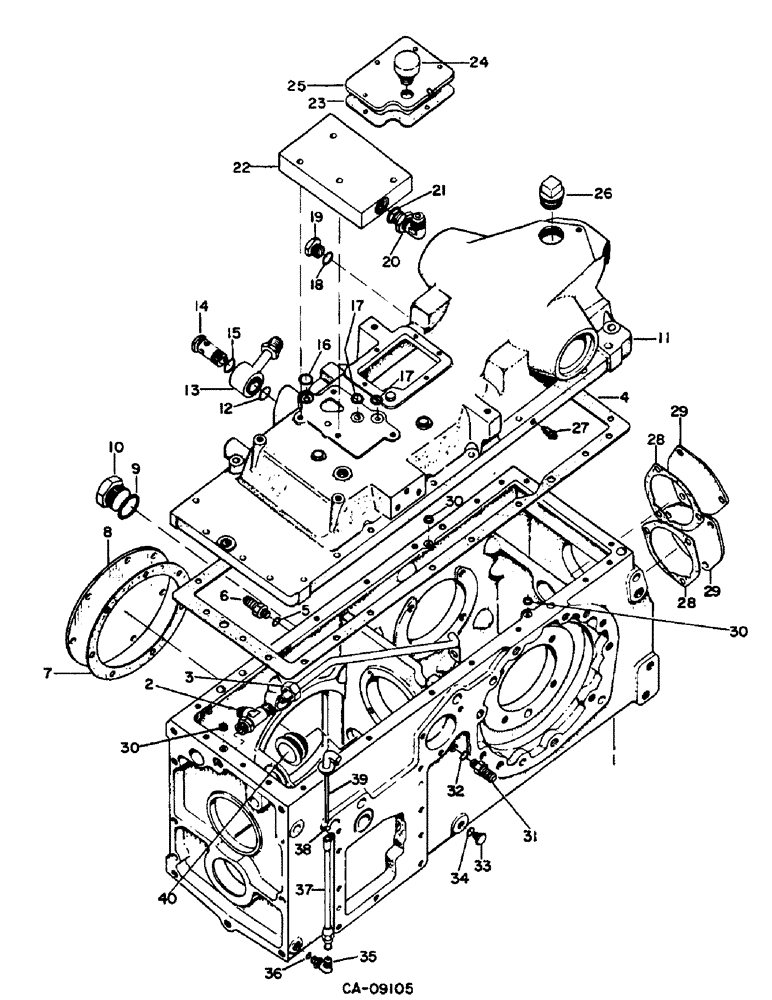

Запчасти Case IH 884 (07-10) - REAR FRAME COVER AND CONNECTIONS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
399848R71
FRAME ASSY
PLATE ASSY, clutch pressure, Includes: ref no. 2 thru 11 & 13, Serial Range: -9267
1шт.
1
1289949C91
FRAME ASSY
rear, Start Serial: 9268
1шт.
327412R1
PLUG,Cup, 13/16"
13/16 cup
1шт.
3113103R1
PLUG
3/4-14 auto hex-hd pipe
2шт.
349373R1
PLUG
1-1/4 cup
1шт.
19904R1
DOWEL,1/2" x 1"
PIN, 1/2 x 1.000 pln hdn-dowel
2шт.
19875R1
DOWEL,5/8" x 1 1/2"
PIN, 5/8 x 1.500 pln hdn dowel
1шт.
386194R1
PLUG,Cup, 3/4"
3/4 cup
2шт.
512870R1
PLUG,Cup, 2 1/4"
2-1/4 cup
1шт.
19846R1
DOWEL,1/2" x 1 1/4"
PIN, 1/2 x 1.250 pln hdn dowel
1шт.
70129R1
PLUG,Cup, 2"
2 cup
1шт.
23828R1
PLUG,Cup, 2 1/2"
2-1/2 cup
1шт.
330222R1
PLUG,Cup, 1 7/8"
1-7/8 cup
1шт.
151162R1
PLUG,Cup, 1 3/8"
1-3/8 cup
1шт.
327413R1
PLUG
1-1/2 cup
1шт.
3142063R1
PLUG
52mm cup
1шт.
318300R1
PLUG,Cup, 1"
1.0 cup
1шт.
TRACTORS W/FORWARD & REVERSE
1шт.
2
9411131
TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run
3/4-16 C-Z 37 deg hyd flared tube adj str thd 90 deg, transfer pump outlet tube
1шт.
3
68393C1
TUBE ASSY.
TUBE ASSY, return
1шт.
4
538649R92
GASKET KIT
PACKAGE, rear frame cover gasket w/three seals 406734R1
1шт.
6
3129671R1
FITTING
ADAPTER, brake pipe, RH brake tube
1шт.
7
405739R2
GASKET
side IPTO cover
1шт.
8
405738R1
COVER
side PTO
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
7шт.
9
296247R1
O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk
1 OD tube
1шт.
10
9410363
PLUG
1-5/16-12 str thd-o-ring boss
1шт.
11
529381R95
COVER ASSY
rear frame
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
179846
LEVER
11шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
3/8 x 2-3/4 pln type 5
2шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
1/2 x 1-5/8 pln type 5
2шт.
179888
LEVER
BOLT, 1/2 x 1-7/8 pln type 5
4шт.
444695
PLUG
3/8-18 autom-hex-soc-hd pipe
1шт.
444697
PLUG,Hex Soc, 3/8"-18
3/8-18 autom-hex-soc-hd pipe
1шт.
386194R1
PLUG,Cup, 3/4"
3/4 cup
1шт.
373553R1
PLUG,Cup, 7/8"
7/8 cup
1шт.
41600D
PLUG,Cup, 1 1/8"
1-1/8 cup
1шт.
24469R1
PLUG,Cup, 3 1/4"
3-1/4 cup
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
14шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
3шт.
231-1408
LOCK NUT,1/2"-13, GB
NUT, 1/2 pln p/t lock type 5
3шт.
536855R1
PLUG
3/4-16 C-Z str hd o-ring boss
1шт.
531144R1
STUD
top cover short
2шт.
531143R2
STUD
top cover long
2шт.
12
384376R1
O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro
15/16 x 1-1/16 x 1/16
1шт.
13
66762C1
PIPE,0.625" OD, 3.5" Length
TUBE ASSY, inlet union
1шт.
14
66766C1
PLUG
inlet union
1шт.
15
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
1шт.
16
21433R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
11/16 x 7/8 x 3/32, auxiliary valve manifold
1шт.
17
352221R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
9/16 x 3/4 x 3/32, auxiliary valve manifold
2шт.
19
9410359
PLUG
3/4-16 C-Z str thd o-ring boss
1шт.
20
9410978
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, auxiliary valve manifold
1шт.
21
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
1шт.
22
529382R1
MANIFOLD
aux valve
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
4шт.
23
399996R1
GASKET
linkage access cover
1шт.
24
65970C2
BREATHER ASSY.
BREATHER ASSY, hydraulic unit housing
1шт.
25
65969C1
COVER
linkage access
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
5шт.
26
20953R1
DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF
PLUG, 1-3/4-11 x 1/2 npte
1шт.
27
82301R1
BLEEDER,3/8" - 24 x 117mm
brake bleed
2шт.
27
3068777R1
SCREW
brake bleed
2шт.
28
399843R2
GASKET
IPTO cover
2шт.
29
399842R1
COVER
rear frame IPTO
2шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
6шт.
30
406734R1
SEAL
teflon
3шт.
31
3129671R1
FITTING
ADAPTER, brake pipe, LH brake inlet tube
1шт.
33
9410356
PLUG
7/16-20 str thd o-ring boss
1шт.
35
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
9/16-18 37 deg hyd flared tube adj str thd 90 deg, oil level gauge tube
1шт.
36
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube
1шт.
37
528059R1
TUBE
rear frame oil level gauge
1шт.
38
352219R1
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
1/4 x 3/8 x 1/16
1шт.
39
528054R2
DIPSTICK
GAUGE ASSY, rear frame oil level
1шт.
40
527748R1
PLUG
oil reservoir
1шт.
5
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube
2шт.
32
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube
1шт.
34
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube
1шт.
Выбрано товаров: 83
