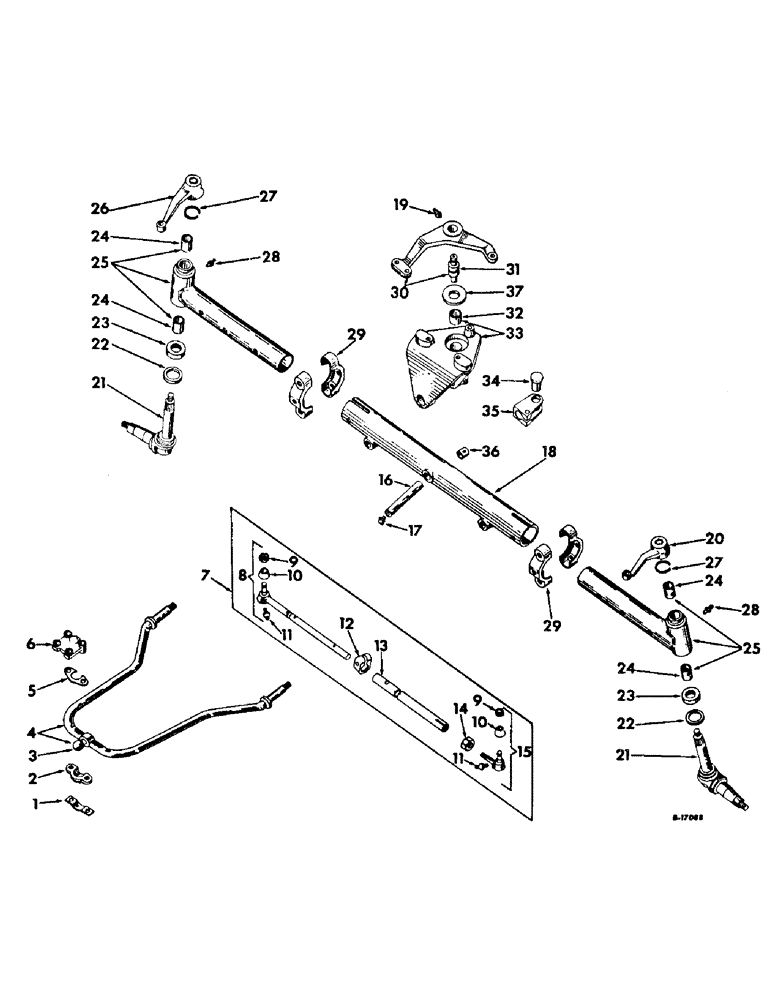

Запчасти Case IH 856 (J-22) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE AND CONNECTIONS, INTERNATIONAL TRACTORS Steering Mechanism

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

2

379953R1

CAP

stay rod ball socket

1шт.

3

10546D

BALL

stay rod

1шт.

4

379951R11

STAY ROD ASSY

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

5

379954R1

SHIM

stay rod ball socket

1шт.

6

379952R1

SOCKET

stay rod ball

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8-11 x 1-3/4 hex-hd cap

2шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 hex-hd cap

2шт.

7

384432R92

TIE-ROD

ROD ASSY, tie

2шт.

8

384434R92

ROD

ASSY, tie, welded end

2шт.

9

358901R1

SLOTTED NUT

tie rod

4шт.

10

387280R2

COVER

dust

4шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

12

359986R1

CLAMP

tie rod

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

2шт.

181436

BODY,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 hex-hd cap

2шт.

13

384433R1

TUBE,0.957" ID, 1.187" OD, 17.125" Length

tie rod

2шт.

14

374062R1

JAM NUT

NUT, jam

2шт.

15

384006R92

END

ASSY, tie rod, RH thread

2шт.

16

379941R1

AXLE PIN,38.1mm OD x 219.2mm L

PIN, front axle pivot

1шт.

17

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg angle drive type lub

1шт.

18

380004R21

AXLE ASSY, front

1шт.

19

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub, Serial Range: -9613

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPTF 1/8"-27 x .66 lg, Start Serial: 9614

1шт.

20

384017R3

ARM

RH steering knuckle

1шт.

21

401768R92

STEERING KNUCKLE

KNUCKLE W/OIL SEAL, 370254R91 and shield, 48701D, steering

2шт.

22

374387R1

WASHER

steering knuckle pivot felt

2шт.

23

369131R91

THRUST BEARING

ASSY, steering knuckle pivot thrust

2шт.

24

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

25

383995R12

EXTENSION

ASSY, front axle

2шт.

26

384016R3

ARM

LH steering knuckle

1шт.

27

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining

2шт.

28

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub, steering knuckle pivot pin

2шт.

29

383994R1

CLAMP, front axle

4шт.

102639

NUT,5/8"-11, G5

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

631191R1

BOLT,Hex, 5/8" - 11 x 5", Gr 8

SCREW, 5/8-11 x 5 hex-hd cap

4шт.

20843R1

BOLT,3/4" x 6 3/4", Gr 8

SCREW, 3/4-10 x 6-3/4 hex-hd cap

2шт.

30

399973R92

ARM

ASSY, center steering

1шт.

31

399974R1

SHAFT

center arm pivot

1шт.

16006R1

BALL

3/16 cr-stl

1шт.

32

399972R1

BUSHING,25.44mm ID x 28.59mm OD x 28.83mm L

pivot pin

1шт.

33

399976R92

BRACKET

BOLSTER ASSY, lower

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub, Serial Range: -9613

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPTF 1/8"-27 x .66 lg, Start Serial: 9614

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

U5360

AXLE PIN

PIN, 1/8 x 6-1/8 headed

1шт.

20296R1

HEX SOC SCREW,5/8"-11 x 2"

5/8-11 x 2 hex-soc-hd cap

2шт.

20295R1

HEX SOC SCREW,5/8"-11 x 3"

SCREW, 5/8-11 x 3 hex-soc-hd cap

2шт.

34

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 clevis

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

108639

BRACKET

1/4 x 1-1/8 cotter

1шт.

35

389052R1

CLEVIS COUPLING

CLEVIS, cylinder end

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

36

379943R1

BUSHING,38.11mm ID x 41.41mm OD x 38.1mm L

front axle pivot pin

2шт.

37

392991R1

SHIM

center arm pivot pin, .020

1шт.

37

392990R1

SHIM

center arm pivot pin, .010

1шт.
