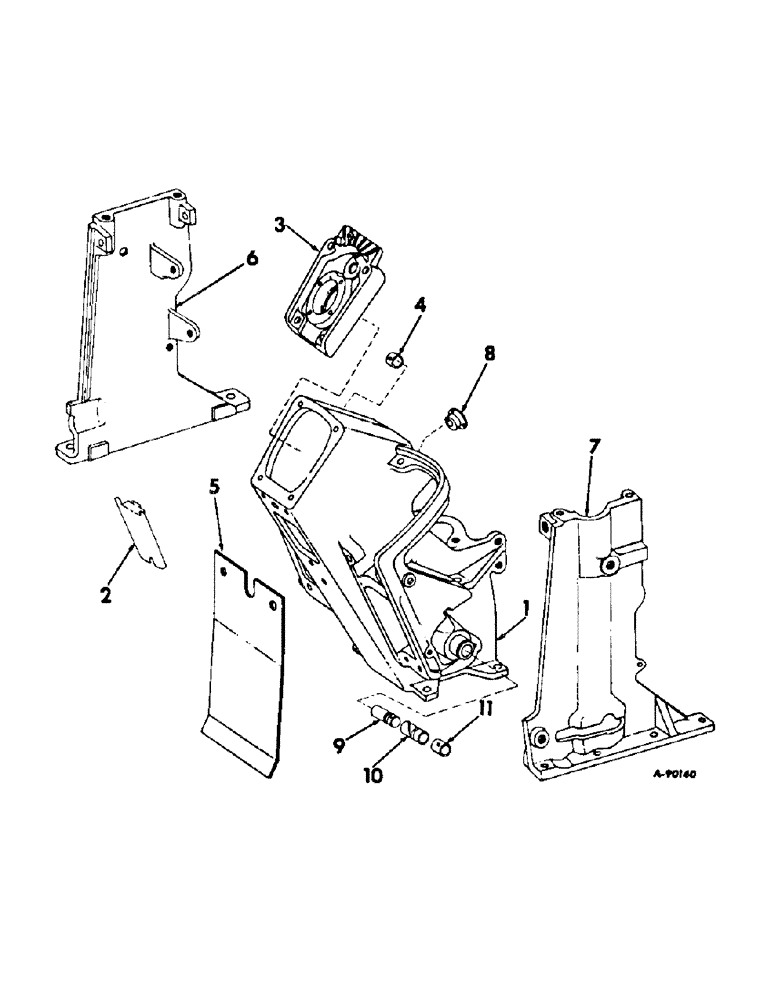

Запчасти Case IH 856 (J-02) - STEERING MECHANISM, STEERING AND GEAR SELECTOR SUPPORTS Steering Mechanism

1

398277R91

SUPPORT ASSY, steering and gear selector, composed of, (1) bushing 382638R2, (1) bushing 398274R1, (1) insert 398283R1, (1) pin 19955R1, (1) sleeve 404855R1, (1) support 398278R1 (NSS)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap, diesel engine tractors

3шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap, carbureted engine tractors

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap, Diesel engine tractors

1шт.

2

384429R1

COVER, steering support rear opening, carbureted engine tractors

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 C-Z hex-hd cap

1шт.

354825R1

WASHER

steering cover

1шт.

3

398276R1

COVER, steering and gear selector support

1шт.

21327R1

SCREW

5/16-18 x 1-1/4 C-Z hex-soc-hd cap

4шт.

4

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

range transmission selector cross shaft

1шт.

5

382750R1

SUPPORT

COVER, gear selector support

1шт.

5

401560R1

COVER ASSY, support, tractors with Allen cabs

1шт.

386858R1

SCREW,Hex Wshr Hd, 3/8" - 16 x 0.75"

3/8-16 x 3/4 cdp hex. washer hd cap

2шт.

6

398108R3

SUPPORT ASSY.

SUPPORT, gear selector left

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

7

398109R2

SUPPORT, gear selector right

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

1шт.

8

398283R1

INSERT, governor control rod

1шт.

19955R1

PIN,1/4" x 1/2", Coiled

1шт.

9

398273R1

BUSHING

range transmission shift support

1шт.

10

404855R1

SLEEVE CYLINDER

SLEEVE, transmission shift support

1шт.

11

398274R1

BUSHING,19.07mm ID x 22.24mm OD x 31.75mm L

transmission cross shaft

1шт.
