Запчасти Case IH 856 (K-11) - DRAWBARS AND HITCHES, THREE POINT HITCH QUICK COUPLER, CATEGORY II Drawbars & Hitches

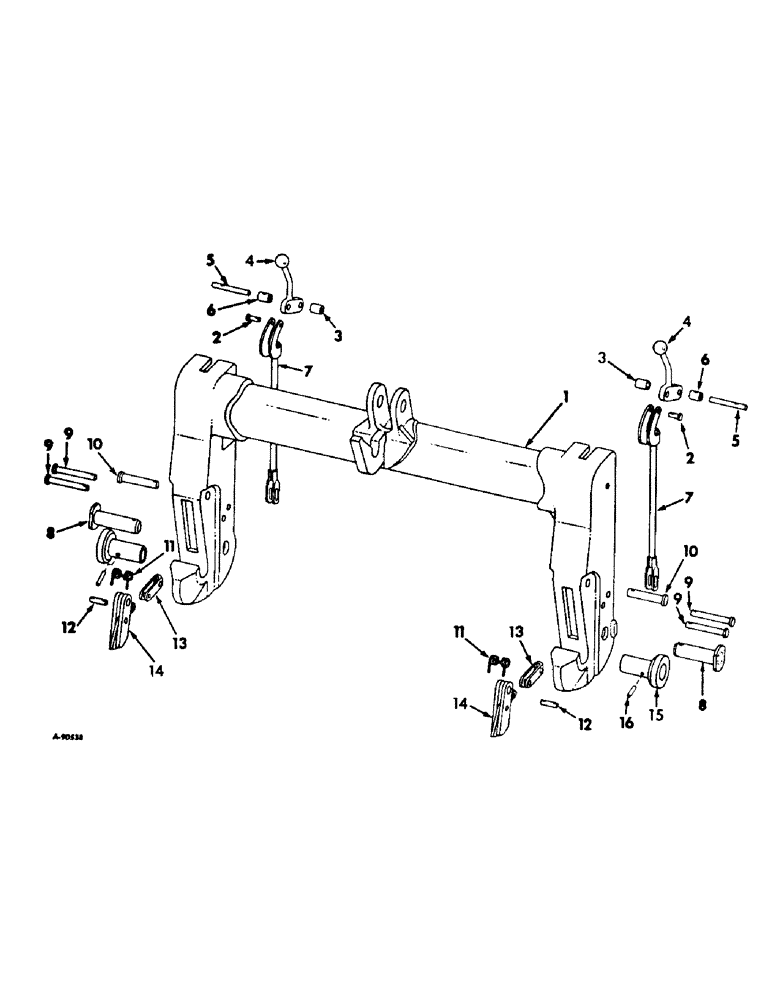

Схема запчастей Case IH 856 - (K-11) - DRAWBARS AND HITCHES, THREE POINT HITCH QUICK COUPLER, CATEGORY II Drawbars & Hitches
9
16
8
6
3
9
4
10
5
4
2
11
9
14
8
9
1
3
13
13
15
5
14
7
6
2
10
12
7
12

Артикул

Название

Примечание

Количество

ATTACHMENT, three point hitch quick coupler, 401228R91

1шт.

401230R91

COUPLING

COUPLER ASSY, quick, composed of ref nos 1 through 14 and attaching hardware

1шт.

1

401235R1

FRAME ASSY, quick coupler

1шт.

2

401245R1

PIN, hitch lever link

2шт.

3

401240R1

SPACER, lever hinge pin

2шт.

4

401236R1

LEVER

hitch

2шт.

5

401238R1

PIN, lever hinge

2шт.

6

401239R1

SPACER, lever hinge pin

2шт.

7

401237R1

ROD ASSY, hitch

2шт.

8

401248R1

PIN

stud

2шт.

9

401215R1

PIN

lower link

4шт.

10

401246R1

PIN

locking latch hinge

2шт.

11

401244R1

SPRING

double torsion

2шт.

12

401247R1

PIN, clevis slot

2шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .051 C-Z

4шт.

648002

KNIFE

1/8" x 3/4"

10шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

13

401243R1

CLEVIS

LINK, hitch lower

2шт.

14

401242R1

SUPPORT

PLATE ASSY, latch

2шт.

15

401232R1

ADAPTER

implement lower hitch pin

2шт.

16

21926R1

PIN,7/16" x 1 3/8", Coiled

2шт.

1001029R3

DECAL

PRODUCT GRAPHIC, IH

2шт.

Выбрано товаров: 22
