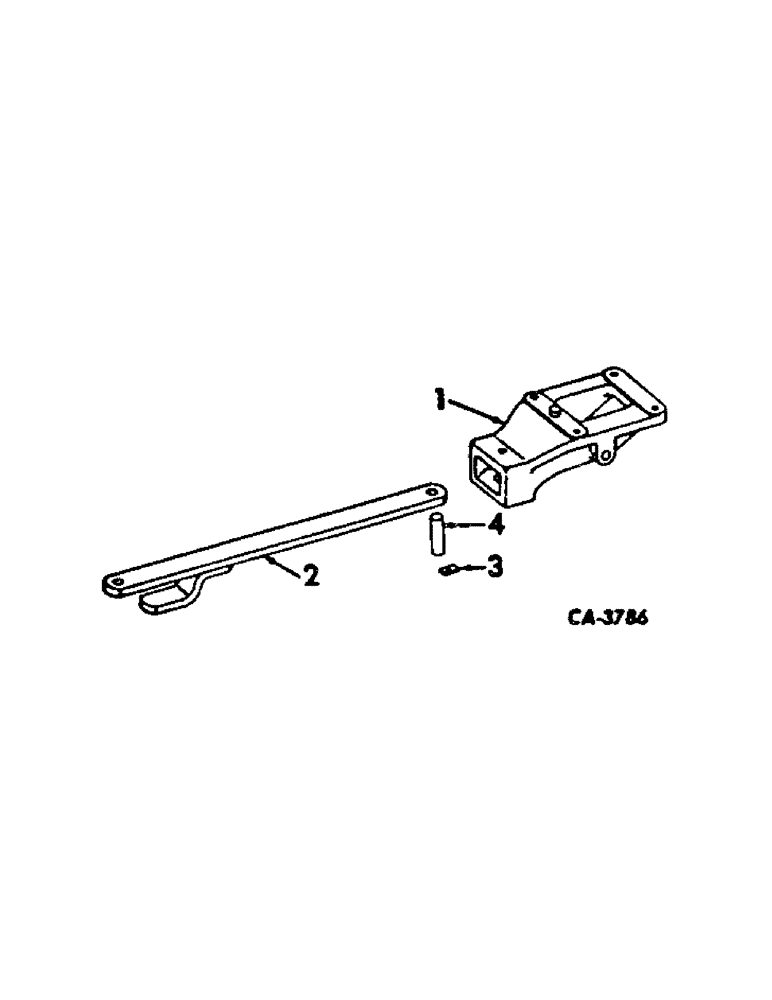

Запчасти Case IH 856 (K-02[A]) - DRAWBARS AND HITCHES, SWINGING DRAWBAR, FARMALL 856 DIESEL CUSTOM TRACTORS WITH TWO POINT HITCH Drawbars & Hitches

1

381707R21

SUPPORT

ASSY, swinging drawbar pivot, not included in the swinging drawbar attachment

1шт.

20324R1

DOWEL,1" x 2"

PIN, 1 x 2 dowel

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

2

383494R21

DRAWBAR ASSY, swinging

1шт.

220081

NUT

3/4-10 hex.

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, pivot pin lock

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

57654D

PIVOT PIN

PIN, drawbar pivot

1шт.
