(H-17) - CONTROLS, POWER BRAKE VALVE

Запчасти Case IH 856 (H-17) - CONTROLS, POWER BRAKE VALVE Controls

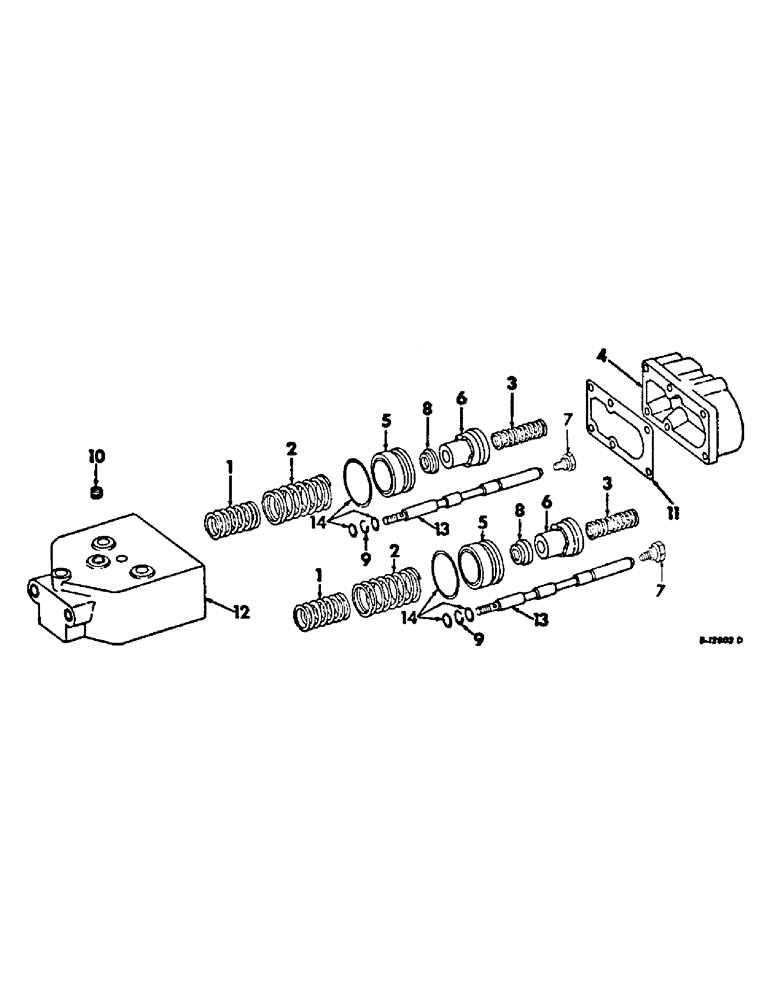

Схема запчастей Case IH 856 - (H-17) - CONTROLS, POWER BRAKE VALVE Controls
8
1
2
13
6
3
12
2
3
9
4
11
7
5
7
10
5
1
14
9
14
6
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

384186R93

VALVE

ASSY, power brake

1шт.

1

384492R1

SPRING

return

2шт.

2

384493R1

SPRING

large piston

2шт.

3

384494R2

SPRING, reaction, also order package, 384608R91

2шт.

4

384495R1

CAP

body

1шт.

5

384496R2

PISTON ASSY.

PISTON, large

2шт.

6

384497R2

PISTON, small, also order package, 384508R91

2шт.

7

384499R2

RETAINER

SPOOL END, valve, also order package, 384608R91

2шт.

8

384500R1

WASHER

return spring

2шт.

9

85633R1

RING

1/2 sq-snap, also order package, 384608R91

2шт.

10

384501R1

PLATE

orifice

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

6шт.

11

384503R1

GASKET

body cap

1шт.

12

BODY, power brake valve, not serviced seperately, order valve, 384186R93

1шт.

13

SPOOL, valve, not serviced seperately, order valve, 384186R93

2шт.

14

384502R92

GASKET

PACKAGE, valve o-ring and gasket service, also order package, 384608R91, consists of (1) gasket 384503R1, (4) o-ring 364839R1, (4) o-ring 399906R1 (NSS), (2) o-ring 399907R1 (NSS)

1шт.

384608R91

STRIPPER PACKAGE

PACKAGE, valve sealant and screw service, consists of (2) screw 439914 (NSS), (1) sealant 374539R1

1шт.
