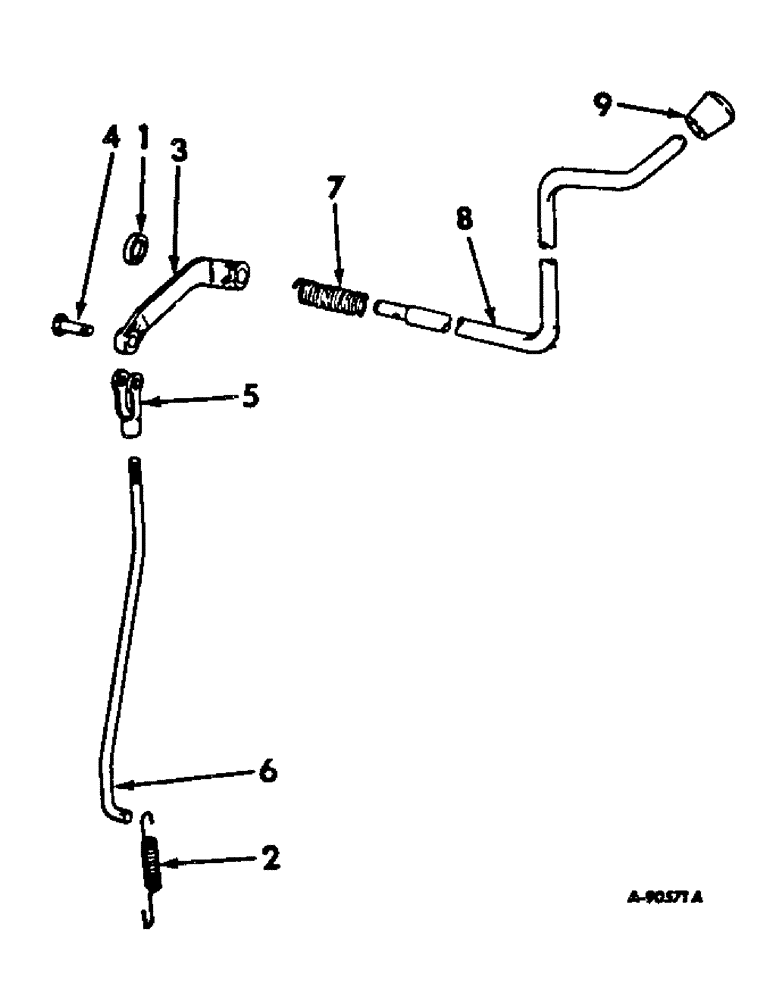

Запчасти Case IH 856 (H-14) - CONTROLS, POWER TAKE-OFF LEVER AND CONNECTIONS Controls

1

382483R1

WASHER

DISC, PTO handle friction, Farmall tractors, Serial Range: -31805

1шт.

1

382483R1

WASHER

DISC, PTO handle friction, International tractors, Serial Range: -9648

1шт.

1

533486R1

DRIVEN PLATE

DISC, independent PTO handle friction, Farmall tractors, Start Serial: 31806

1шт.

1

533486R1

DRIVEN PLATE

DISC, independent PTO handle friction, International tractors, Start Serial: 9649

1шт.

2

401222R1

VALVE SPRING

SPRING, IPTO linkage anti-friction

1шт.

3

399632R1

ARM

independent PTO, Farmall tractors, Serial Range: -31805

1шт.

3

399632R1

ARM

independent PTO, International tractors, Serial Range: -9648

1шт.

3

533487R1

ARM

independent PTO, Farmall tractors, Start Serial: 31806

1шт.

3

533487R1

ARM

independent PTO, International tractors, Start Serial: 9649

1шт.

4

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Independent PTO actuating rod end 3/8" x 1.060"

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

5

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 rod end adjustable

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

6

399633R1

ROD

independent PTO actuating

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

7

399635R1

VALVE SPRING

SPRING, independent PTO handle rod

1шт.

8

399634R2

ROD

independent PTO handle, Farmall tractors, Serial Range: -31805

1шт.

8

399634R2

ROD

independent PTO handle, International tractors, Serial Range: -9648

1шт.

533488R1

STEM

ROD, independent PTO handle, Farmall tractors, Start Serial: 31806

1шт.

533488R1

STEM

ROD, independent PTO handle, International tractors, Start Serial: 9649

1шт.

443023

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, 3/16" x 1", Type F

1шт.

9

387885R1

KNOB

independent PTO handle rod

1шт.

529144R1

SPACER

BUSHING, independent PTO lever, tractors with cab, illustrated with tractor cab and connections unit, see section N

1шт.

529143R1

LEVER

ASSY, independent PTO, tractors with cab, illustrated with tractor cab and connections unit, see section N

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.
