Запчасти Case IH 856 (H-09) - CONTROLS, CLUTCH CONTROLS AND TRANSMISSION BRAKE Controls

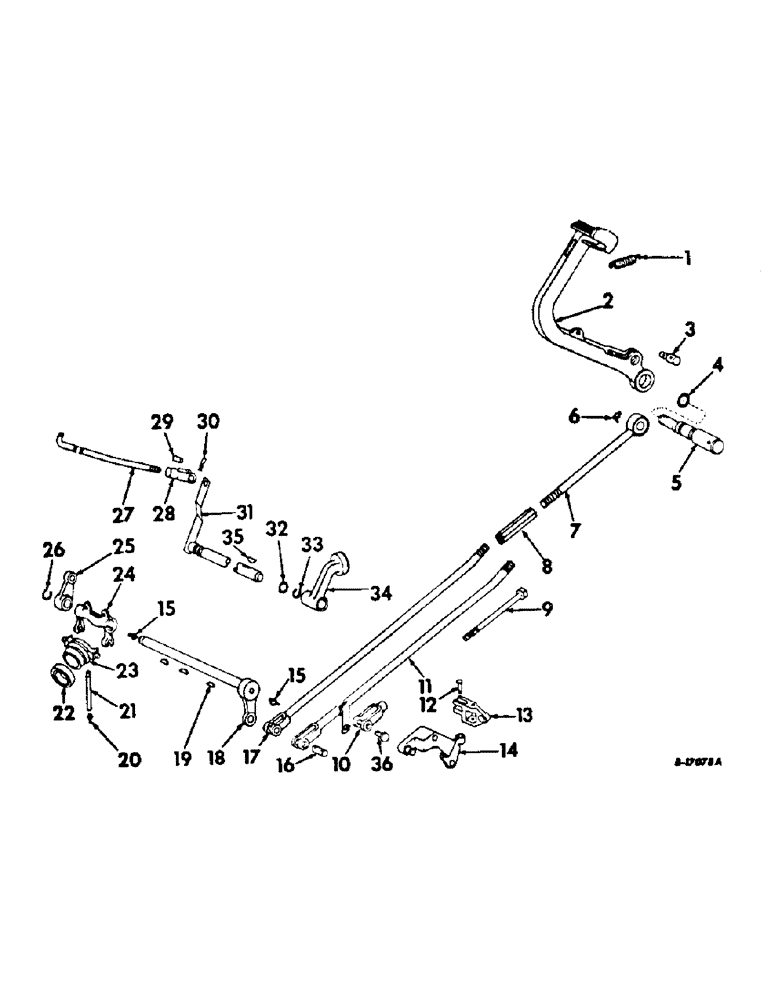

Схема запчастей Case IH 856 - (H-09) - CONTROLS, CLUTCH CONTROLS AND TRANSMISSION BRAKE Controls
7
26
31
2
21
11
8
10
14
34
28
33
24
1
3
22
16
4
18
5
20
9
15
27
32
35
12
23
30
15
19
36
17
13
6
29
25

Артикул

Название

Примечание

Количество

1

626206R1

SPRING

clutch pedal return

1шт.

2

397468R1

PEDAL

clutch

1шт.

3

384047R1

BALL JOINT

PIN, clutch pedal pivot

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

4

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16, clutch pedal pivot shaft

1шт.

5

395249R1

SHAFT

clutch pedal

1шт.

443329

NUT, 5/8-11 hex. lock

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

364030R1

SPACER

clutch shaft

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

6

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive tupe lub

1шт.

7

380178R11

ROD

ASSY, clutch operating rear

1шт.

18266R1

NUT, 5/8-11 LH thd hex. jam

1шт.

8

384248R1

TURNBUCKLE

1шт.

9

391946R1

BOLT,Hex, 1/4" - 28 x 5 1/2"

SCREW, 1/4-28 x 5-1/2 hex-hd cap, dump valve actuating, tractors with torque amplifier

1шт.

10

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4 rod end adj, tractors with torque amplifier

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

11

385142R91

ROD

ASSY, clutch operating front, tractors with torque amplifier

1шт.

12

382491R2

PIN

bellcrank pivot, tractors with torque amplifier

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

1шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga

2шт.

13

382490R1

LEVER

BELLCRANK, clutch brake, tractors with torque amplifier

1шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

14

382489R11

PIVOT ASSY.

PIVOT ASSY, valve operating, tractors with torque amplifier

1шт.

445572

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

SCREW, 5/16-18 x 2-3/4 hex-hd cap

1шт.

20330R1

BOLT,5/16" x 3 3/4", Gr 8

SCREW, 5/16-18 x 3-3/4 hex-hd cap

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

16

382492R2

AXLE PIN,15.77mm OD x 35.56mm L

PIN, clutch rod clevis

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

17

383192R11

ROD

ASSY, clutch operating, front

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

18

380180R12

SHAFT

ASSY, clutch relese

1шт.

19

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

3/16 x 7/8 woodruff 11

3шт.

20

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, 5/16-32 NEF str lub, clutch release sleeve

1шт.

20

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Clutch release sleeve, tractors w/auxiliary fuel tank 1/8"-27 x .66 lg

1шт.

21

365720R1

PIPE

clutch release sleeve grease, used only w/bearing, 365867R91

1шт.

105412

ELBOW,90 Degree, 1/8" NPT

1/8 90 deg pipe, tractors w/auxiliary fuel tank

1шт.

219377

NIPPLE, 1/8 x 7 pipe, tractors w/auxiliary fuel tank

1шт.

999819R91

COUPLING

COUPLER, grease gun lubrication, tractors w/auxiliary fuel tank

1шт.

22

69789C91

BEARING ASSY

PACKAGE, clutch release bearing, consists of bearing and installing instructions, replaces 365867R91

1шт.

23

380109R1

SLEEVE

clutch release

1шт.

445684

PLUG

1/8-27 auto sq-hd pipe, used w/pre-lubed clutch release bearing

1шт.

24

380110R1

FORK

clutch release

1шт.

24

380110R1GV

CLUTCH

Value, Clutch Release

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

25

384306R1

LEVER

transmission brake operating

1шт.

26

384305R1

RING

clutch release shaft snap

1шт.

27

384307R1

ROD

transmission brake operating

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x 3/32

1шт.

28

213-318

CLEVIS

1/2-20 x 2-9/16 adj rod end, transmission brake operating rod

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

29

384308R2

PIN,12.53mm OD x 28.45mm L

operating rod clevis

1шт.

30

460047R1

CLIP, SPRING

PIN, quick attachable cotter, transmission brake operating rod

1шт.

31

384309R11

SHAFT

ASSY, transmission brake

1шт.

32

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, transmission brake shaft

1шт.

33

384305R1

RING

transmission brake shaft snap

1шт.

34

384311R11

PEDAL

LEVER W/FACING, transmission brake

1шт.

35

124552

SCREW

3/16 x 1 woodruff

13шт.

36

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end, tractors with torque amplifier

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

1шт.

Выбрано товаров: 67
