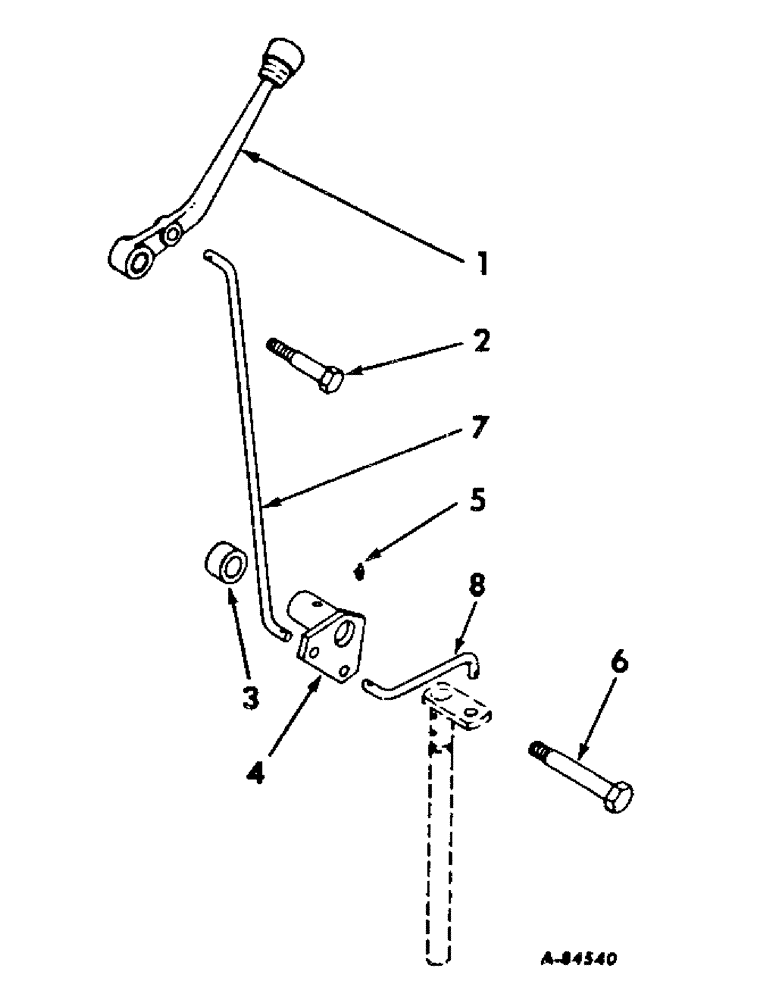

Запчасти Case IH 856 (H-08) - CONTROLS, TRANSMISSION CONTROLS, TRACTORS WITH ALL WHEEL DRIVE Controls

1

385820R1

LEVER, transmission drive shift

1шт.

2

385821R1

BOLT

transmission drive shift lever

1шт.

3

385822R1

SPACER, torque amplifier replacement tractors w/o torque amplifier

1шт.

4

385824R91

BELLCRANK ASSY, transmission drive

1шт.

5

66584D

FITTING

3/16 str drive type lub

1шт.

6

385827R1

BOLT,Hex, 5/8" - 11 x 3 3/4"

bellcrank pivot

1шт.

7

385829R2

ROD, transmission drive actuating, Farmall tractors

1шт.

7

398621R1

ROD, transmission drive actuating, International tractors

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

496-21047

WASHER

15/32 x 59/64 x .065

2шт.

8

385830R1

ROD, transmission drive shifter

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

496-21047

WASHER

15/32 x 59/64 x .065

2шт.
