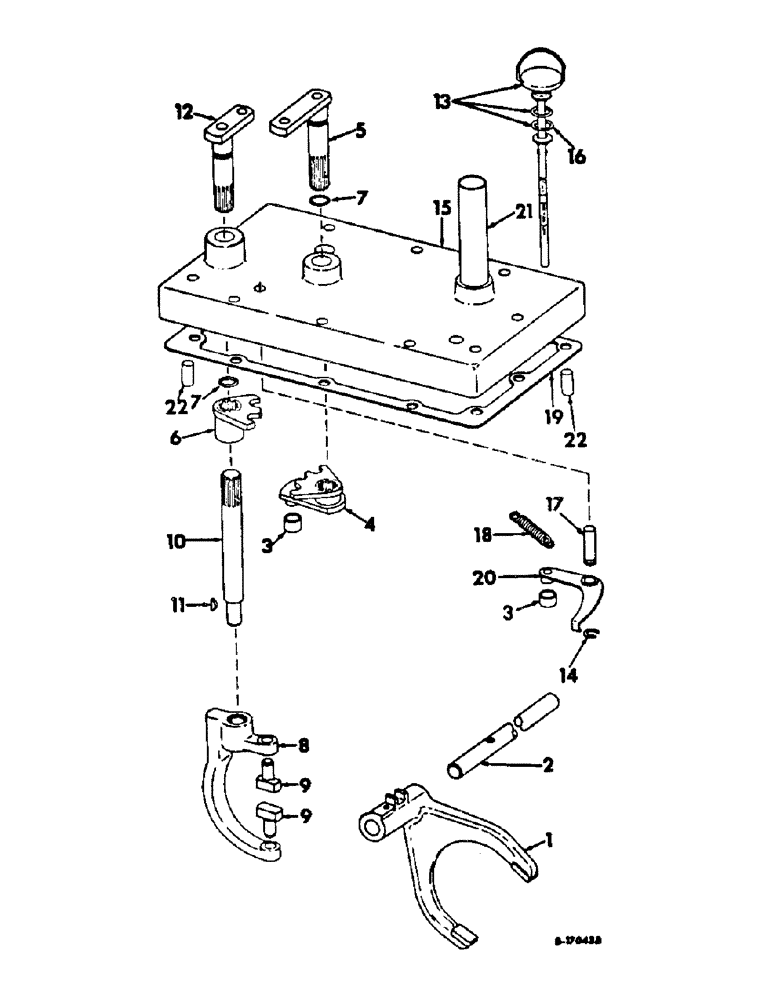

Запчасти Case IH 856 (H-06) - CONTROLS, GEAR SHIFT MECHANISM, RANGE TRANSMISSION Controls

1

398279R1

FORK

hi-lo shift

1шт.

398280R1

PIN

hi-lo shift fork

1шт.

20648R1

BOLT,5/16" x 7/8", Gr 8

SCREW, 5/16-18 x 7/8 hex-hd cap

1шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

3

380115R2

ROLLER

detent

2шт.

4

398285R2

ARM

ASSY, hi-lo operating

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

5

398281R3

SHAFT

ASSY, hi-lo shift, also order o-ring, 379181R1

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

6

528183R1

SECTOR

ASSY, reverse detent plate

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

7

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, used w/398281R1

2шт.

7

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 x 1/16, used w/398281R2, 398291R2 and 398291R3

2шт.

8

380308R1

FORK

reverse shift

1шт.

9

380309R1

PAD

reverse shift fork

2шт.

19371R1

PIN,1/8" x 3/4", Coiled

2шт.

10

398297R1

SHAFT

reverse shift lower

1шт.

11

218217

KEY

3/16 x 5/8 Woodruff 61

1шт.

12

398291R3

SHAFT

ASSY, reverse shift upper, also order o-ring, 379181R1

1шт.

615168R1

WASHER

23/32 x 1-1/2 x 11 ga

1шт.

13

398311R92

GAUGE ASSY.

GAUGE ASSY, oil level

1шт.

14

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shift control arm pivot pin #50, .392" Dia, E-Type

1шт.

15

398298R11

COVER

ASSY, rear frame front, includes ref nos 17, 21 & 22

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

10шт.

16

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8

2шт.

17

398299R1

PIN

shift control pivot

1шт.

18

398304R1

SPRING

shift control arm

1шт.

19

380315R1

GASKET

rear frame front cover

1шт.

20

398300R1

ARM

ASSY, shift control

2шт.

Ref #20 (P/N 398300R1) See quality comments.

1шт.

21

386450R1

GUIDE

oil level gauge

1шт.

22

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

2шт.

527854R93

PACKAGE, hi-lo shift conversion, without torque amplifier, Farmall tractors, consists of, Serial Range: -19780

1шт.

527854R93

PACKAGE, hi-lo shift conversion, without torque amplifier, International tractors, consists of, Serial Range: -9063

1шт.

398285R2

ARM

ASSY, hi-lo operating

1шт.

533927R1

CARRIER

shift collar

1шт.

393521R1

COLLAR

hi-lo shift

1шт.

398279R1

FORK

hi-lo shift

1шт.

380067R1

GASKET

clutch housing

1шт.

69681C1

GASKET

drive ATT opening cover

1шт.

380315R1

GASKET

rear frame front cover

1шт.

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 x 1/16, hi-lo shaft

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

398281R3

SHAFT

ASSY, hi-lo shift

1шт.

391827R2

SHAFT

23 T main

1шт.

527855R93

PACKAGE, hi-low shift conversion, with torque amplifier, Farmall tractors, consists of, Serial Range: -19780

1шт.

527855R93

PACKAGE, hi-low shift conversion, with torque amplifier, International tractors, consists of, Serial Range: -9063

1шт.

398285R2

ARM

ASSY, hi-lo operating

1шт.

533927R1

CARRIER

shift collar

1шт.

393521R1

COLLAR

hi-lo shift

1шт.

398279R1

FORK

hi-lo shift

1шт.

380067R1

GASKET

clutch housing

1шт.

69681C1

GASKET

drive ATT opening cover

1шт.

380315R1

GASKET

rear frame front cover

1шт.

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 x 1/16, hi-lo shift shaft

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

398281R3

SHAFT

ASSY, hi-lo shift

1шт.

392235R2

SHAFT

23 T main

1шт.
