Запчасти Case IH 856 (H-04) - CONTROLS, ENGINE SPEED CONTROLS Controls

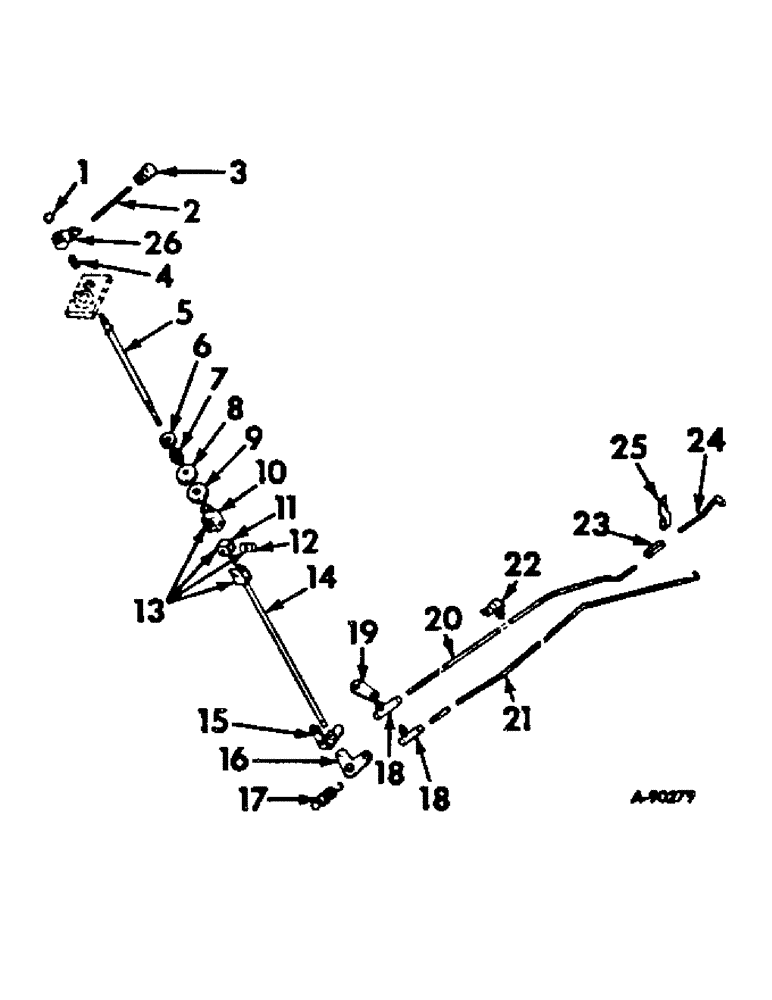

Схема запчастей Case IH 856 - (H-04) - CONTROLS, ENGINE SPEED CONTROLS Controls
6
16
2
25
14
22
18
1
26
23
19
24
8
7
13
10
21
5
9
12
11
20
4
18
3
15
17

Артикул

Название

Примечание

Количество

1

192105

HOLE PLUG BUTTON,1"

PLUG, 1 in. C-Z button

1шт.

2

397929R91

HANDLE

ASSY, governor control

1шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 stover hex. lock

1шт.

615029R1

WASHER

3/8 x 3/4 x .065

1шт.

106265

WASHER,1/2"

9/16 x 1-3/8 x .109

1шт.

3

397931R2

GRIP

governor control handle

1шт.

3

397931R2GV

SPRING

Value, Knob

1шт.

4

30A

SPRING

governor control handle

1шт.

5

382683R11

SHAFT

W/PIN, 443149, governor control upper, order shaft assy, 404238R11 yoke assy, 404240R1 and set screw 333800R1

1шт.

443149

GROOVED PIN,3/16" x 1 1/4", Type E

Pin, Grooved, 3/16" x 1 1/4", Type E

1шт.

5

404238R11

SHAFT

W/PIN, 443149, governor control

1шт.

443149

GROOVED PIN,3/16" x 1 1/4", Type E

Pin, Grooved, 3/16" x 1 1/4", Type E

1шт.

6

369461T1

RETAINER, governor control spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

7

369462R1

SPRING

governor control

1шт.

8

382684R1

GASKET

DISC, governor control friction

1шт.

9

382685R11

RETAINER

RETAINER ASSY, governor control friction

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

10

382689R11

YOKE ASSY, upper, tractors w/out tilt steering ATT order shaft assy, 404238R11 yoke assy, 404240R1 and set screw, 333800R1, tractors w/tilt steering ATT order shaft, 404246R1, yoke assy, 404240R1 and set screw, 333800R1 and shaft 404246R1

1шт.

333800R1

BOLT,Set, 1/4" - 20 x 1/4", Cup Pt

SCREW, 1/4-20 x 1/4 hex-soc-hols cup point set

1шт.

14

382694R11

ROD

SHAFT ASSY, governor control lower

1шт.

385681R1

PIN

1/4 x 1-1/4 str

1шт.

15

382695R11

BRACKET

SUPPORT ASSY, governor control shaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

382696R11

LEVER

ASSY, governor control rod operating, carbureted engine tractors

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

17

369470R1

VALVE SPRING

SPING, governor control balancing, carbureted engine tractors

1шт.

18

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z type SP ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

1шт.

19

392955R11

LEVER

ASSY, governor control rod operating, diesel engine tractors

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

20

401313R1

ROD, governor control, rear, diesel engine tractors

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

455332

NUT,Jam, 5/16"-18, G5, LH

5/16-24 hex. jam LH

1шт.

21

382697R1

ROD, governor control to governor, carbureted engine tractors

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

22

384013R1

GUIDE, governor control rod, carbureted engine tractors

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

23

369474R1

TURNBUCKLE

governor control rod, diesel engine tractors

1шт.

24

392956R1

ROD, governor control, front, diesel engine tractors

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

25

384594R1

GUIDE, governor control rod, diesel engine tractors

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

26

397932R1

HUB

governor control handle

1шт.

142494

GUIDE

PIN, 5/32 x 3/4 groove

1шт.

Выбрано товаров: 48
