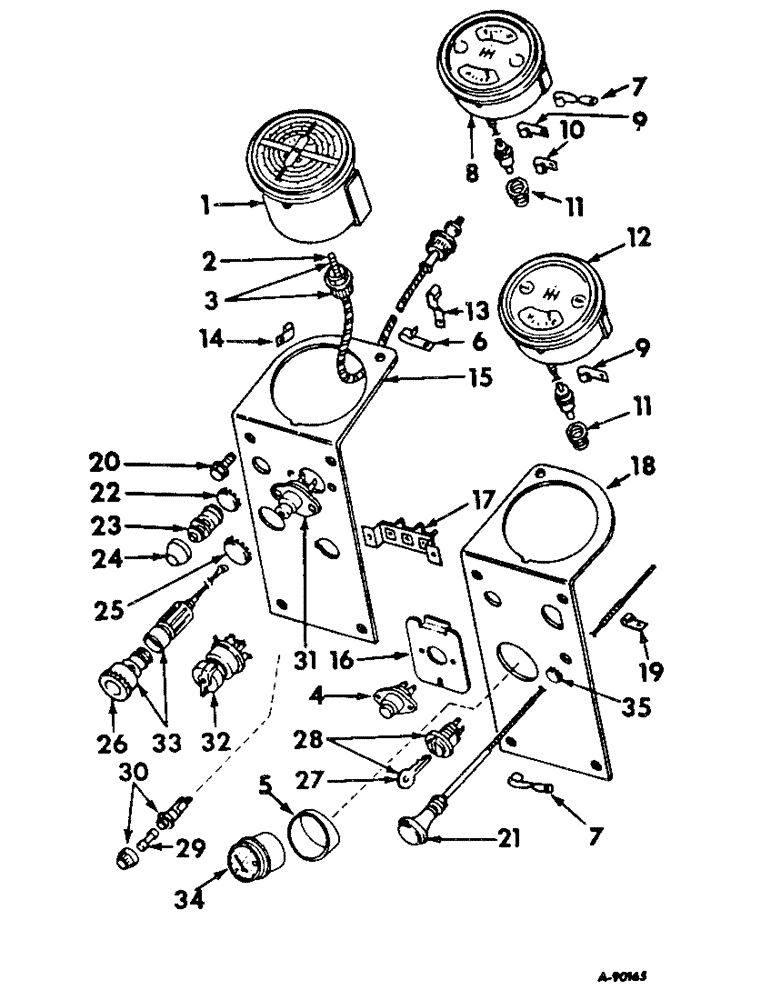

Запчасти Case IH 856 (H-02) - CONTROLS, ENGINE CONTROLS AND INSTRUMENTS Controls

1

398095R91

SPEEDOMETER

-TACHOMETER ASSY

1шт.

2

393327R91

CABLE ASSY.

CORE ASSY, tachometer flexible drive shaft, used w/shaft, 393326R91, carbureted engine tractors

1шт.

2

393329R91

CORE

ASSY, tachometer flexible drive shaft, used w/shaft, 393328R91, diesel engine tractors

1шт.

3

393326R91

CABLE

SHAFT ASSY, tachometer flexible drive, polypropylene jacketed casting, carbureted engine tractors

1шт.

3

393328R91

CABLE

SHAFT ASSY, tachometer flexible drive, polypropylene jacketed casting, diesel engine tractors

1шт.

4

397940R93

SWITCH

ether starting push button, diesel engine tractors

1шт.

120611

NUT,#10 - 32

no. 10-32 C-Z sq

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt-pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

397943R1

SPACER, electric air cleaner indicator

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

6

361774R1

CLIP, tachometer flexible drive shaft, on LH gear selector support, carbureted engine tractors

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

7

370208R1

SUPPORT

CLIP, choke cable rear, gasoline engine tractors

2шт.

8

397937R92

CLUSTER

ASSY, gauge, gasoline engine tractors

1шт.

8

398094R92

CLUSTER

ASSY, gauge, diesel engine tractors

1шт.

8

399323R92

IGNITION SWITCH

CLUSTER ASSY, gauge, diesel engine tractors w/o electric fuel gauge

1шт.

9

355574R1

CLIP

capillary tube, gasoline engine tractors

1шт.

9

370205R1

CLIP, capillary tube twisted, Farmall custom tractors

1шт.

10

351699R1

CLIP, capillary tube, gasoline engine tractors

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

51510DA

RESTRICTOR

BUSHING, capillary tube bulb installation

1шт.

12

397938R92

GAUGE

CLUSTER ASSY, gauge, LP gas engine tractors

1шт.

13

370740R1

CLAMP

CLIP, tachometer flexible drive shaft, twisted, carbureted engine tractors, on rear tool box mounting bracket

1шт.

13

384558R1

CLIP

tachometer flexible drive shaft, short, diesel engine tractors except Farmall custom, on clutch housing upper RH rear tapped hole

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

13

362123R1

CLIP

tachometer flex drive shaft short, Farmall custom tractors

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

362123R1

CLIP

tachometer flexible drive shaft, on torque amplifier handle support bracket

1шт.

15

382724R91

PANEL

ASSY, instrument LH

1шт.

16

395073R1

PANEL

ether starting push button, diesel engine tractors

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 C-Z hex-hd cap

2шт.

17

378336R91

BLOCK

ASSY, junction

1шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

397941R11

PANEL ASSY, instrument RH, carbureted engine tractors

1шт.

18

397944R11

PANEL ASSY, instrument RH, diesel engine tractors

1шт.

19

30740R1

CLEVIS PIN,M16x 80

CLIP, choke control, carbureted engine tractors, 2 used LP gas engine tractors

1шт.

NLS

NO LONGER SERVICED

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

LP gas engine tractors 3/8"-16, G5

1шт.

21

374219R93

CABLE

CONTROL ASSY, choke, gasoline engine tractors

1шт.

21

374219R93GV

CABLE

Value, Choke Cable

1шт.

21

374218R92

CABLE

CONTROL ASSY, choke, LP gas engine tractors

1шт.

21

374281R92GV

CABLE

Value, Choke Cable

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

22

374342R1

PLUG

horn switch

1шт.

23

393209R91

SWITCH

horn, less cap

1шт.

24

371487R1

CYLINDER END CAP

CAP, horn switch dust, gray

1шт.

25

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigarette lighter hole button

1шт.

26

378781R91

PACKAGE

UNIT, pop-out

1шт.

27

382458R2

KEY

switch

1шт.

28

403562R1

IGNITION SWITCH

SWITCH ASSY, ignition key

1шт.

496-21047

WASHER

15/32 x 59/64 x .065

2шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting nut

1шт.

29

106653

FUSE

cartridge type AGC 20

1шт.

30

376852R91

HOUSING

ASSY, fuse

1шт.

31

397940R93

SWITCH

ASSY, push button starting

1шт.

120611

NUT,#10 - 32

no. 10-32 C-Z sq

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

32

403571R1

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

33

382671R91

CIGAR LIGHTER

CIGARETTE LIGHTER PARTS ACCESSORY

1шт.

34

397942R91

INDICATOR

ASSY, electric air cleaner

1шт.

35

383621R1

PLUG, choke control hole button, diesel engine tractors

1шт.
