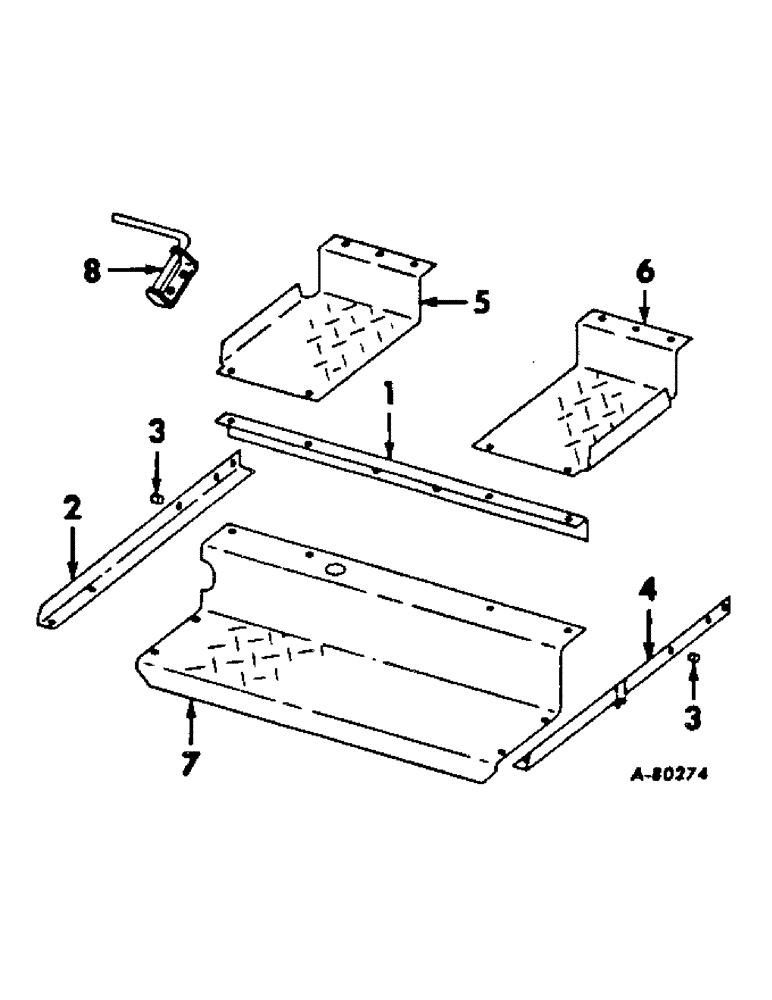

Запчасти Case IH 856 (A-11) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORM EXTENSIONS, INTERNATIONAL TRACTORS Chassis, Radiator & Sheet Metal
№
Артикул
Название
Примечание
Количество
387914R91
SPARE PART PARTS ACCESSORY, platform extension, tractors without hitches or over-center clutch
1шт.
1
387903R1
SPARE PART ANGLE, platform extension support
1шт.
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
SCREW, 5/8-11 x 1-1/2 hex-hd cap
2шт.
2
387904R11
SPARE PART ANGLE ASSY, platform support LH
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
180125
SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5
SCREW, 3/8-16 x 1-3/8 znd hex-hd cap
1шт.
180129
BOLT,Hex, 3/8" - 16 x 1 7/8"
SCREW, 3/8-16 x 1-7/8 znd hex-hd cap
1шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
SCREW, 3/8-16 x 2 znd hex-hd cap
5шт.
20803R1
WASHER
WASHER, 13/32 x 1 x 11 ga C-Z
4шт.
3
600192R1
SPACER
SPACER, platform support
2шт.
4
387905R11
SPARE PART ANGLE ASSY, platform support RH
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
180125
SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5
SCREW, 3/8-16 x 1-3/8 znd hex-hd cap
1шт.
180129
BOLT,Hex, 3/8" - 16 x 1 7/8"
SCREW, 3/8-16 x 1-7/8 znd hex-hd cap
1шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
SCREW, 3/8-16 x 2 znd hex-hd cap
5шт.
20803R1
WASHER
WASHER, 13/32 x 1 x 11 ga C-Z
4шт.
5
387908R1
SPARE PART EXTENSION, platform front LH
1шт.
6
387909R1
SPARE PART EXTENSION, platform front RH
1шт.
7
387910R3
SPARE PART EXTENSION, platform rear
1шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
SCREW, 3/8-16 x 7/8 znd hex-hd cap
4шт.
8
387911R11
SPARE PART BRACKET ASSY, handle & light support
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
SCREW. 3/8-16 x 7/8 znd hex-hd cap
1шт.
180125
SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5
SCREW, 3/8-16 x 1-3/8 znd hex-hd cap
1шт.
20803R1
WASHER
WASHER, 13/32 x 1 x 11 ga C-Z
2шт.
Выбрано товаров: 30
