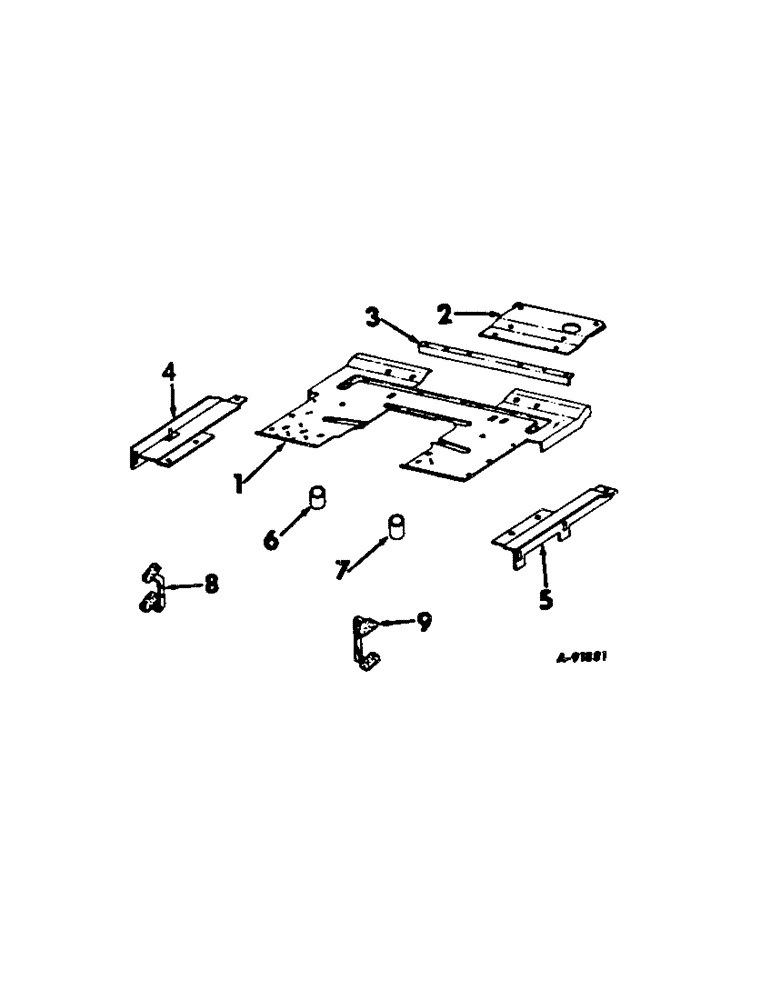

Запчасти Case IH 856 (A-10) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORMS AND EXTENSIONS, FARMALL TRACTORS WITH S/N 19496 & ABOVE Chassis, Radiator & Sheet Metal

1

406278R4

SPARE PART PLATFORM, rear frame

1шт.

406279R4

SPARE PART PLATFORM, rear frame, tractors w/cab

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

2

406280R1

SPARE PART PLATFORM, rear frame front

1шт.

3

406281R1

SPARE PART ANGLE ASSY, platform support

1шт.

14995R1

BOLT

BOLT, 3/8-16 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

400715R2

SPARE PART EXTENSION ASSY, fender to platform mounting LH

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8-16 x 1-1/8 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

127507H

WASHER

WASHER, 13/32 x 7/8 x .179

1шт.

5

400716R1

SPARE PART EXTENSION ASSY, fender to platform mounting RH

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8-16 x 1-1/8 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

127507H

WASHER

WASHER, 13/32 x 7/8 x .179

1шт.

6

51852H

SPACER

SPACER, platform

2шт.

7

379718R1

SPACER,1/2" X-Strng Pipe x 1.281"

SPACER, platform

4шт.

187491

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

SCREW, 3/8-16 x 5-1/2 hex-hd cap

2шт.

Q1597

WASHER

WASHER, 13/32 x 3/4 x 16 ga

2шт.

8

395230R1

STEP

SPARE PART STEP ASSY, LH mounting

1шт.

271607

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5

SCREW, 3/4-10 x 1-1/2 hex-hd cap

1шт.

Q3501

WASHER

WASHER, 25/32 x 1-1/4 x 16 ga

1шт.

375250R1

SCREW,Flg, 5/8" - 11 x 2 1/4"

SCREW, 12 pt-hd cap, thru clutch housing rear frame and step support

1шт.

9

395123R1

STEP

STEP ASSY, RH mounting

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

1шт.

Q3501

WASHER

WASHER, 25/32 x 1-1/4 x 16 ga

1шт.
