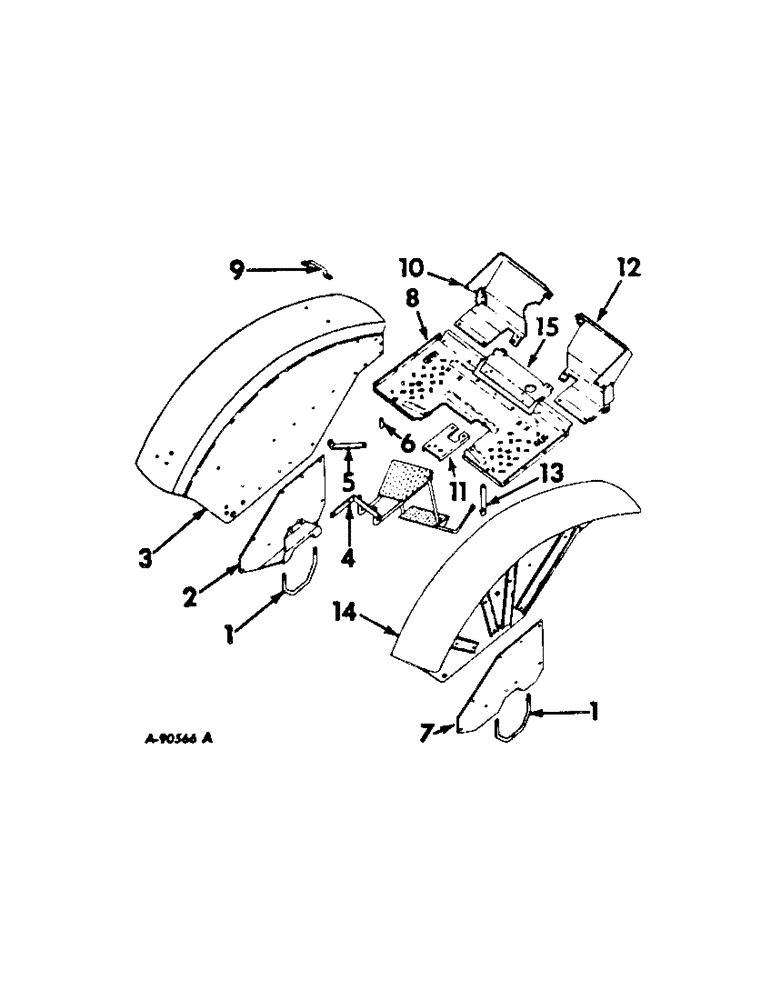

Запчасти Case IH 856 (A-10[A]) - CHASSIS, RADIATOR AND SHEET METAL, FENDERS AND PLATFORMS, INTERNATIONAL TRACTORS Chassis, Radiator & Sheet Metal

1

379376R1

BOLT,3/4" - 10 x 8.50" W x 7.50" L

U-BOLT, fender mounting

2шт.

220081

NUT

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

4шт.

2

379714R91

SPARE PART SUPPORT ASSY, LH fender

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

380831R21

SPARE PART SUPPORT ASSY, LH full coverage fenders

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

2шт.

575807R1

WASHER

WASHER, 13/32 x 1 x 11 ga

4шт.

3

379706R93

SPARE PART FENDER ASSY, LH

1шт.

3

386102R93

SPARE PART FENDER ASSY, LH, tractors w/23.1-30, 23.1-34 rear tires

1шт.

102635

NUT,3/8"-16, G5

4шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

575807R1

WASHER

WASHER, 13/32 x 1 x 11 ga

4шт.

3

380825R93

SPARE PART FENDER ASSY, LH full coverage

1шт.

3

386109R93

SPARE PART FENDER ASSY, LH full coverage fender with 23.1-30 or 23.1-34 rear tires

1шт.

102635

NUT,3/8"-16, G5

7шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

7шт.

575807R1

WASHER

WASHER, 13/32 x 1 x 11 ga

7шт.

4

383193R92

SPARE PART STEP ASSY, mounting

1шт.

4

385831R91

SPARE PART STEP ASSY, mounting, tractors with all wheel drive

1шт.

271608

PIVOT

SPARE PART SCREW, 3/4-10 x 1-5/8 hex-hd cap

1шт.

5

384332R1

SPARE PART BRACKET, fender support, LH

1шт.

102635

NUT,3/8"-16, G5

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

2шт.

575807R1

WASHER

WASHER, 13/32 x 1 x 11 ga

2шт.

6

379718R1

SPACER,1/2" X-Strng Pipe x 1.281"

SPACER, platform

4шт.

7

379715R91

SPARE PART SUPPORT ASSY, RH fender

1шт.

7

380832R11

SPARE PART SUPPORT ASSY, RH full coverage fenders

1шт.

102635

NUT,3/8"-16, G5

2шт.

179846

LEVER

2шт.

575807R1

WASHER

WASHER, 13/32 x 1 x 11 ga

4шт.

8

406279R4

SPARE PART PLATFORM, rear frame, also order platform, 406280R1

1шт.

8

406289R1

SPARE PART PLATFORM, rear frame, for tractors w/over center clutch, also order platform, 406280R1

1шт.

102635

NUT,3/8"-16, G5

14 used on tractors with platform extension

10шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8 used on tractors with platform extension

4шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

4шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065)

8шт.

575807R1

WASHER

WASHER, 13/32 x 1 x 11 ga

4шт.

9

381050R1

SPARE PART HANDLE, fender

1шт.

102635

NUT,3/8"-16, G5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

446211

SPARE PART WASHER, 7/16 x 7/8 x .065

2шт.

10

398502R1

SPARE PART SHIELD ASSY, LH mud

1шт.

10

395617R1

SPARE PART SHIELD ASSY, LH mud, tractors w/all wheel drive

1шт.

102635

NUT,3/8"-16, G5

8шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

9шт.

11

384393R1

SPARE PART SUPPORT, safety switch, for tractors w/over center clutch

1шт.

102635

NUT,3/8"-16, G5

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

12

398505R1

SPARE PART SHIELD ASSY, RH mud

1шт.

102635

NUT,3/8"-16, G5

7шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

103321

LOCK WASHER,3/8"

8шт.

13

384333R1

SPARE PART BRACKET, fender support, RH

1шт.

102635

NUT,3/8"-16, G5

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

2шт.

575807R1

WASHER

WASHER, 13/32 x 1 x 11 ga

2шт.

14

379707R93

SPARE PART FENDER ASSY, RH

1шт.

14

386103R93

SPARE PART FENDER ASSY, RH, tractors with 23.1-30 or 23.1-34 rear tires

1шт.

102635

NUT,3/8"-16, G5

4шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

575807R1

WASHER

WASHER, 13/32 x 1 x 11 ga

4шт.

14

380826R92

SPARE PART FENDER ASSY, RH full coverage

1шт.

14

386110R92

SPARE PART FENDER ASSY, RH, full coverage fender with 23.1-30 or 23.1-34 rear tires

1шт.

102635

NUT,3/8"-16, G5

7шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

7шт.

575807R1

WASHER

WASHER, 13/32 x 1 x 11 ga

7шт.

15

406280R1

SPARE PART PLATFORM, rear frame front

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.
