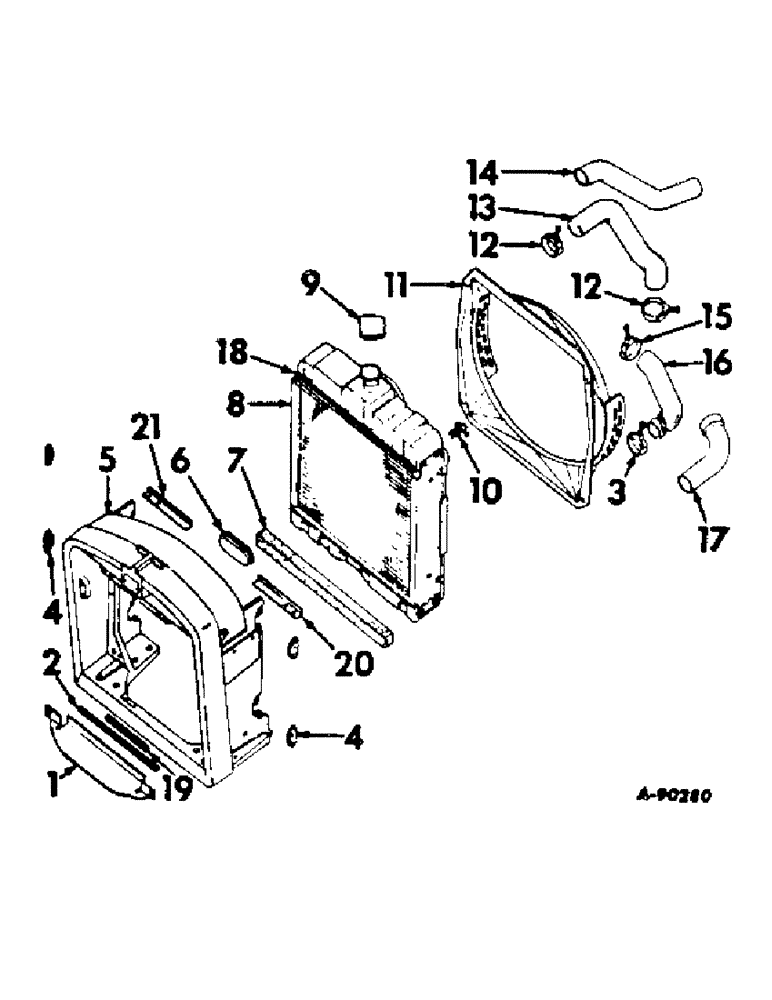

Запчасти Case IH 856 (A-06) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AND CONNECTIONS Chassis, Radiator & Sheet Metal

1

383407R1

BAFFLE, radiator air, International tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

2

385631R1

SEAL

radiator air baffle long, International tractors

1шт.

3

81448H

EXCITER

CLAMP, radiator outlet hose lower

1шт.

4

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

5

398640R2

SUPPORT, radiator

1шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, Farmall tractors

5шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, International tractors

6шт.

384317R1

SCREW, 5/8-11 x 2-3/4 12-pt-hd cap, Farmall tractors

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

383788R1

PLUG

radiator support

1шт.

7

383839R1

GASKET

GASKET, radiator baffle, Farmall tractors

1шт.

8

383950R91

RADIATOR ASSY, less filler cap, gasoline engine tractors

1шт.

8

386860R91

RADIATOR

ASSY, less filler cap, diesel & LP gas engine tractors, heavy duty use on gasoline engine tractors

1шт.

9

402281R1

CYLINDER END CAP

CAP, radiator pressure filler

1шт.

10

614201R1

VALVE

COCK, 1/4 drain, radiator

1шт.

11

396592R1

HOUSING ASSY, fan, carbureted engine tractors

1шт.

11

406413R1

HOUSING ASSY, fan, carbureted engine tractors with Allen cab and air conditioner

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 plain button

1шт.

11

396594R1

HOUSING ASSY, fan, diesel engine tractors

1шт.

11

406402R1

HOUSING ASSY, fan, diesel engine tractors w/Allen cab and air conditioner

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

12

81448H

EXCITER

CLAMP, radiator hose

2шт.

13

380379

HOSE, radiator inlet, carbureted engine tractors

1шт.

14

380380R1

RADIATOR HOSE,50.80 mm ID x 358.10 mm, SAE 20R4, CLASS R, GRADE 1

Inlet, Diesel engine tractors 50.80 mm ID x 358.10 mm, SAE 20R4, CLASS R, GRADE 1

1шт.

15

81448H

EXCITER

CLAMP, radiator outlet hose upper, carbureted engine tractors

1шт.

15

39219H

CLAMP

radiator outlet hose upper, diesel engine tractors

1шт.

16

378704R1

RADIATOR HOSE,2.00" ID x 10.50", SAE 20R4, CLASS R, GRADE 1

Outlet, Carbureted engine tractors 2.00" ID x 10.50", SAE 20R4, CLASS R, GRADE 1

1шт.

17

380448R2

RADIATOR HOSE,55.90 mm ID x 213.40 mm, SAE 20R4 CLASS SC

Outlet, Diesel engine tractors 55.90 mm ID x 213.40 mm, SAE 20R4 CLASS SC

1шт.

18

385631R1

SEAL

radiator air, on radiator

1шт.

19

389600R1

STRIP

SEAL, radiator air

1шт.

20

398629R1

BAFFLE, grille LH air, Farmall tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

398630R1

BAFFLE, grille RH air, Farmall tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
