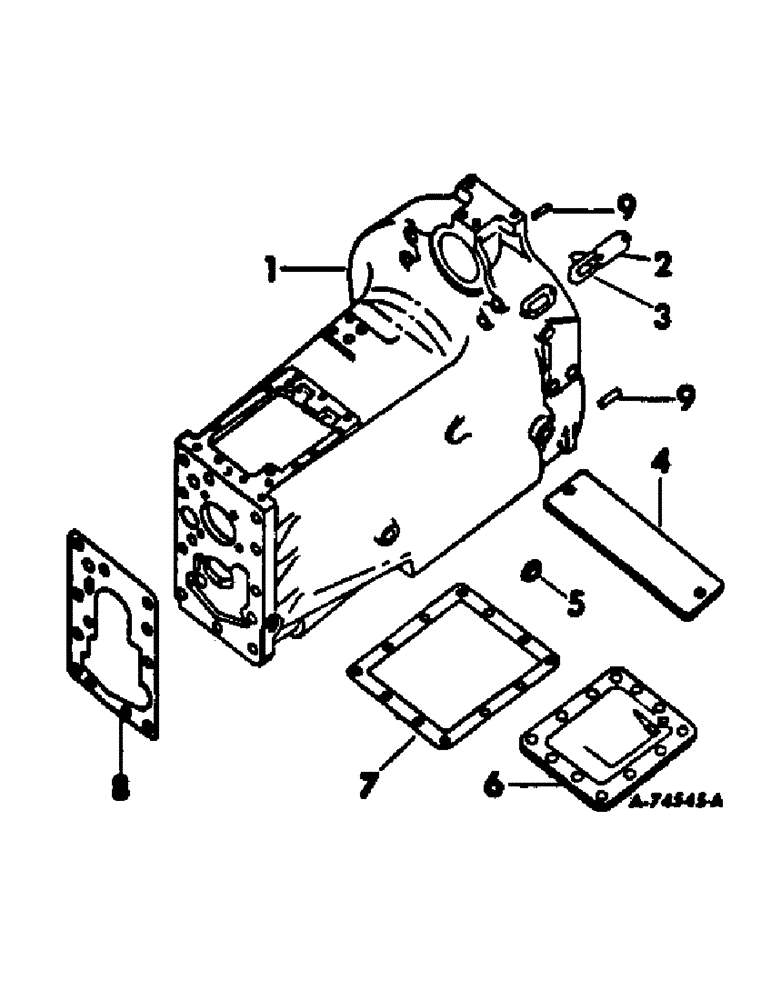

Запчасти Case IH 856 (A-03) - CHASSIS, RADIATOR AND SHEET METAL, CLUTCH HOUSING AND COVERS Chassis, Radiator & Sheet Metal

1

380066R92

SPARE PART HOUSING W/PLUG, 444788 and seat, 381611R1, clutch

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-soc pipe

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap, carbureted engine tractors

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap,Farmall tractors

8шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap, Farmall diesel custom

9шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap, International tractors

10шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Diesel engine tractors

2шт.

103323

LOCK WASHER,1/2"

2шт.

103325

LOCK WASHER,5/8"

Farmall tractors

8шт.

103325

LOCK WASHER,5/8"

Farmall diesel custom

9шт.

103325

LOCK WASHER,5/8"

International tractors

10шт.

1017956R1

PLUG,Cap, .610" OD

Plastic closure, optional with 104940

4шт.

104940

PLUG

CORK, 5/8 x 13/16 long #4 taper, optional with 1017956R1

4шт.

1017957R1

PLUG

PLUG, plastic closure, optional with 104942

1шт.

104942

DISC

CORK, 3/4 x 15/16 long #6 taper, optional with 1017957R1

1шт.

2

380073R1

SPARE PART COVER, engine timing opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

2шт.

3

380072R1

SPARE PART POINTER, engine timing

1шт.

4

380068R1

BAR

COVER, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

5

381611R1

SEAT

SEAT, valve

1шт.

6

384077R11

COVER

COVER W/PLUG, clutch housing bottom

1шт.

NLS

NO LONGER SERVICED

12шт.

6

380069R1

SPARE PART COVER, clutch housing bottom rear, tractors with over-center clutch

1шт.

103735

HOUSING

SPARE PART PIN, 1/4 x 1/2 chamfered straight

1шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto. sq-soc-pipe

1шт.

NLS

NO LONGER SERVICED

12шт.

7

384078R1

GASKET

GASKET, clutch housing bottom cover

1шт.

8

380067R1

GASKET

GASKET, clutch housing (replaces 380067R1)

1шт.

9

45979D

STUD

PIN, rear engine support dowel, carbureted engine tractors

2шт.

9

375362R1

PIN,12.69mm OD x 34.8mm L

PIN, rear engine support dowel, diesel engine tractors

2шт.
