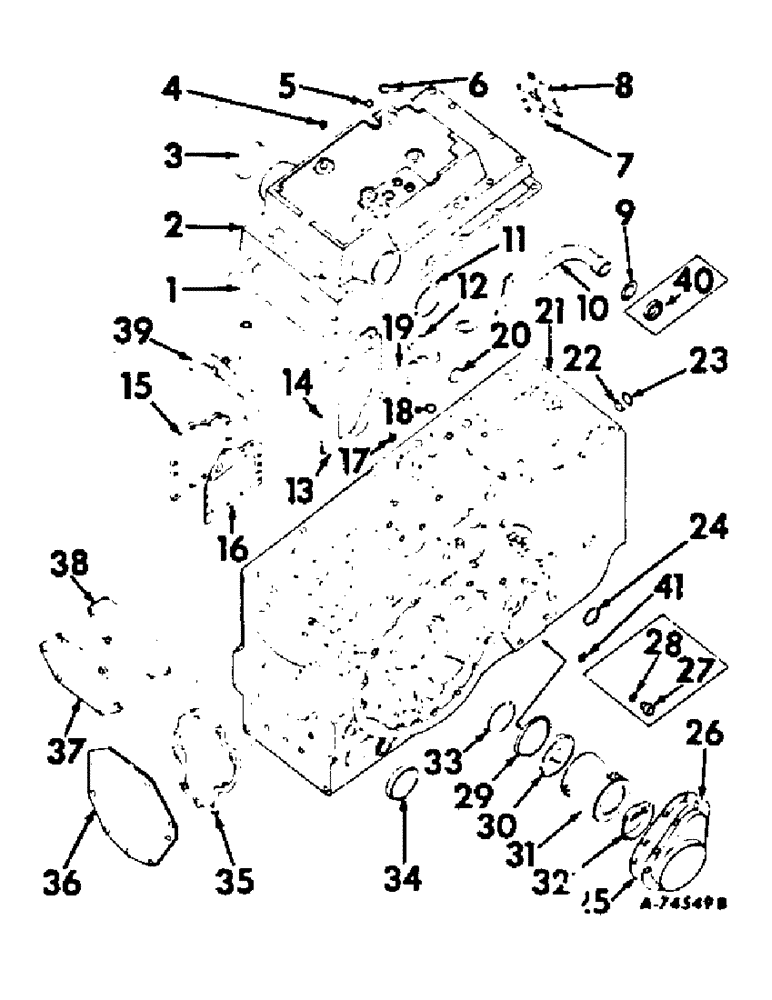

Запчасти Case IH 856 (A-02) - CHASSIS, RADIATOR AND SHEET METAL, REAR FRAME, COVER AND CONNECTIONS Chassis, Radiator & Sheet Metal

1

380264R2

GASKET

GASKET, rear frame cover

1шт.

2

398352R21

COVER

COVER ASSY, rear frame

1шт.

2

398353R91

SPARE PART COVER ASSY, rear frame, tractors w/draft control

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

SCREW, 5/8-11 x 3-7/8 hex-hd cap

16шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

PLUG, 1/4-18 NPTF sq-soc pipe

1шт.

3

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH

1шт.

4

380263R1

PLUG

PLUG, cup eccentric shaft & mounting bolt openings

5шт.

5

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

O-RING, 1 x 1-3/16 x 3/32, cover to seat support, small

2шт.

5

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

O-RING, 1-1/8 x 1-3/16 x 3/32, cover to seat support

1шт.

6

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

O-RING, 2-5/16 x 2-1/2 x 3/32, cover to seat support, large

1шт.

7

382416R1

GASKET

GASKET, valve adj opening cover

1шт.

8

382415R1

COVER

COVER, valve adj opening

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

9

360610R1

O-RING,1.609" ID x 0.139" Width

O-RING, 1-5/8 x 1-7/8 x 1/8, hydraulic filter suction tube

1шт.

10

382240R11

TUBE

TUBE ASSY, hydraulic filter suction

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

1шт.

11

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH

1шт.

12

387926R2

RING

RING, seal, draft control port cover

2шт.

13

385757R1

GASKET

GASKET, drive attachment opening cover, not used on tractors with all wheel drive

1шт.

14

380330R3

COVER

COVER, drive attachement opening, not used on tractors with all wheel drive

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

15

382243R1

COVER ASSY

COVER, pump opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

12шт.

16

382244R1

GASKET

GASKET, pump cover opening

1шт.

17

NLS

NO LONGER SERVICED

BREATHER, used w/390965R11 only

2шт.

18

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL, rear frame pressure port oil

1шт.

19

382758R1

COVER

COVER, draft control port

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

20

386007R1

SPARE PART PLUG, clutch pedal shaft, tractors with over-center clutch

1шт.

21

390965R41

SPARE PART FRAME ASSY, rear, composed of (1) frame w/tubes 390965R4 (NSS), (1) oil seal 537545R92, (1) pin 19846R1, (4) pin 19968R1, (2) pin 19969R1, (1) plug 172558, (1) plug 172574, (2) plug 444788, (2) plug 383331R1, (1) plug 9409947

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 dowel, clutch housing

1шт.

19968R1

DOWEL,3/4" x 1 3/4"

PIN, 3/4 x 1-1/4 dowel, rear axle carrier

4шт.

19969R1

DOWEL,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 dowel, cover

2шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-soc pipe

2шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto. sq-soc pipe

1шт.

22

380271R1

RETAINER

RETAINER, sealing ring

1шт.

23

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

O-RING, 1-1/4 x 1-1/2 x 1/8, clutch housing suction tube

1шт.

24

382242R1

RETAINER

RETAINER, hydraulic filter suction tube

1шт.

25

382257R1

GASKET

GASKET, oil filter cover

1шт.

26

382256R1

COVER ASSY

COVER, oil filter

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

27

(Not used in this application)

1шт.

28

(Not used in this application)

1шт.

29

382247R1

O-RING,5.237" ID x 0.103" Width

SEAL, hyd filter cartridge retainer

1шт.

30

382246R11

RETAINER

RETAINER, hyd filter cartridge

1шт.

31

386122R91

SERVICE KIT

PACKAGE, hyd filter service, includes reference nos. 25 & 29

1шт.

32

386121R92

VALVE

VALVE ASSY, filter relief

1шт.

33

383331R1

PLUG,Cup, 4.26"

PLUG, rear axle opening cup

2шт.

34

383331R1

PLUG,Cup, 4.26"

PLUG, torsion bar cup

2шт.

35

381467R1

GASKET

GASKET, independent PTO opening cover

1шт.

36

380272R1

COVER

COVER, independent PTO opening

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

9шт.

37

383329R1

COVER

COVER, draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

6шт.

38

383330R1

GASKET

GASKET, draft control adj opening cover

1шт.

39

385932R12

PIPE

PIPE ASSY, differential lub

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

1шт.

40

(Not used in this application)

1шт.

41

172574

PLUG,Exp, 1 1/2"

PLUG, 1-1/2 expansion, pump suction port

1шт.
