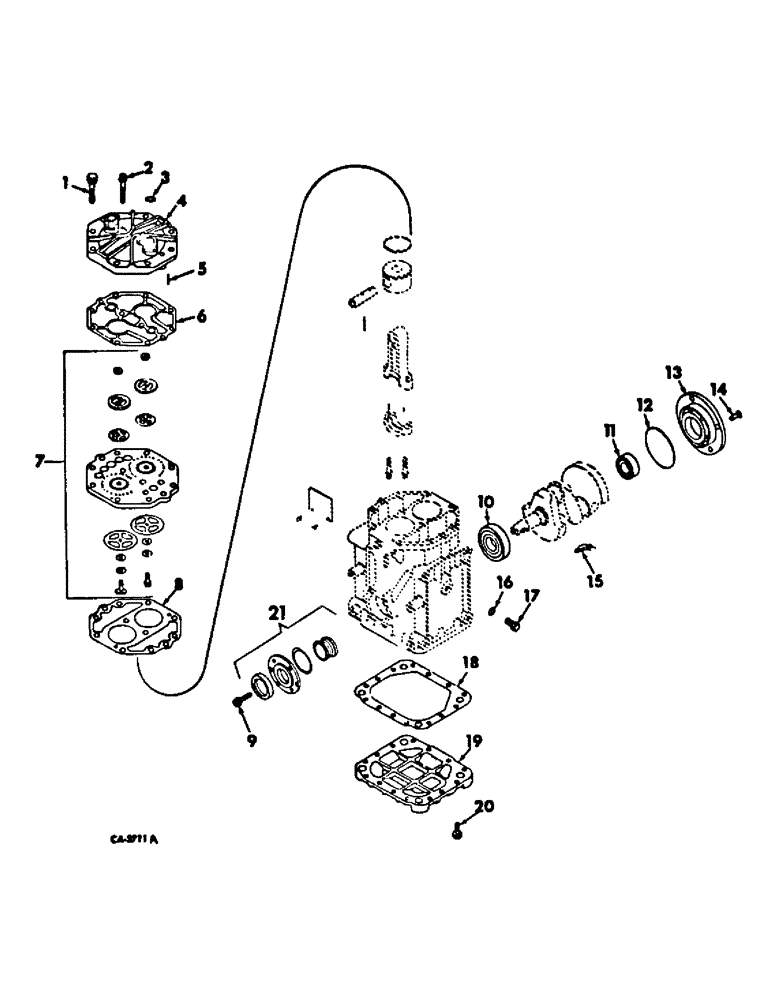

Запчасти Case IH 856 (N-33) - PARTS ACCESSORIES AND ATTACHMENTS, COMPRESSOR Accessories & Attachments

417888C92

COMPRESSOR

ASSY, air conditioner

1шт.

1

20641R1

SCREW

5/16-18 x 1-3/8 hex-hd mach

8шт.

2

374805R1

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

SCREW, 5/16-18 x 1-1/2 znd 12 pt hd

2шт.

3

431762C1

GASKET

service valve

2шт.

4

431758C1

HEAD

cylinder

1шт.

5

21247R1

DOWEL,1/8" x 3/4"

PIN, 1/8 x 3/4 dowel

2шт.

6

431756C1

CYLINDER HEAD GASKET

head

1шт.

7

431759C1

PLATE

W/VALVES, compressor

1шт.

8

431761C1

CYLINDER HEAD GASKET

valve plate

1шт.

9

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

10-24 x 1/2 znd hed-hd mach,Course threads

6шт.

10

432399C1

BEARING, front

1шт.

11

432398C1

BEARING

rear

1шт.

12

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

o-ring

1шт.

13

431757C1

HOUSING

rear bearing

1шт.

14

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

1/4-20 slt-fil-hd-cr-rec mach

4шт.

15

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

16

431764C1

SEAL,8.484mm ID x 1.778mm Width

o-ring oil plug

1шт.

17

86982693

PLUG

3/8-24 C-Z hex. outside hd filler

1шт.

18

431760C1

GASKET

base

1шт.

19

431755C1

PLATE

base

1шт.

20

21024R1

SCREW

1/4-20 x 5/8 slt hex-hd mach

14шт.

21

428606C91

SEAL

shaft seal front

1шт.

384189C91

KIT, rotalock cylinder head

1шт.
