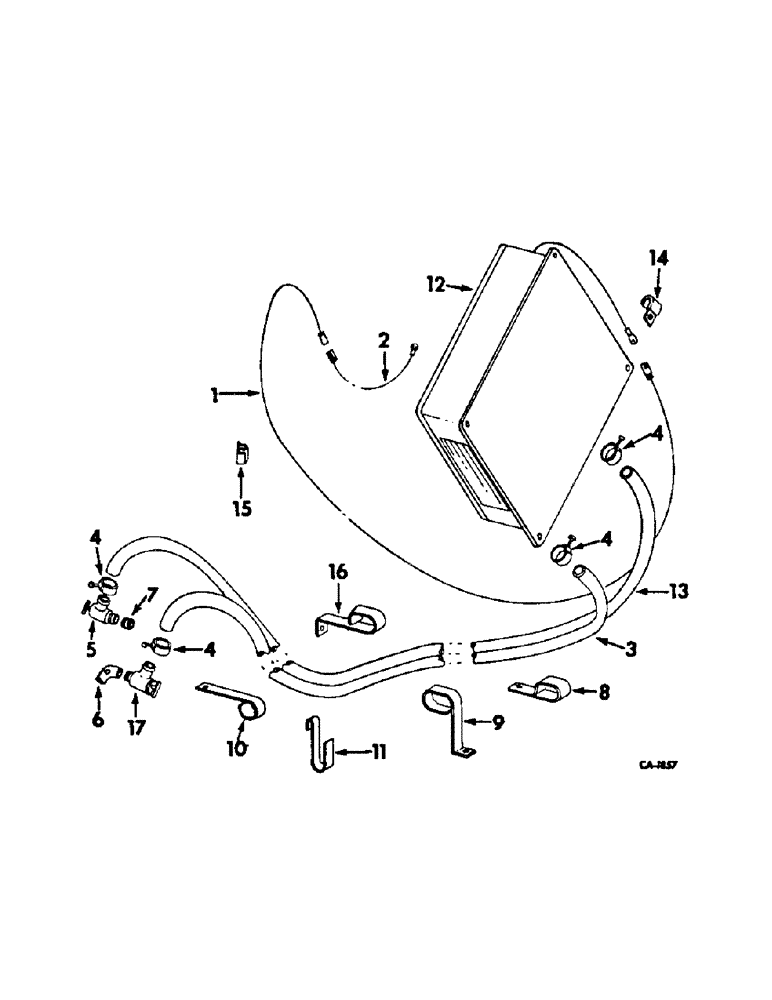

Запчасти Case IH 856 (N-25) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER AND CONNECTIONS, EXCEL CABS Accessories & Attachments

1

529733R1

CABLE ASSY, heater to power switch

1шт.

2

529734R1

CABLE ASSY, heater power from circuit braker

1шт.

3

HOSE, heater inlet, used 114 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

187954

GROMMET,1" ID x 1 3/4" x .062"

1 x 1-3/4 rubber

1шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

5

301803R91

VALVE

ASSY, shut-off, at water pump

1шт.

6

444056

ELBOW

3/8-16 45 deg auto. pipe, carbureted engine tractors

1шт.

6

86982696

TEE

1/2 x 3/8 x 1/2 reducing pipe, diesel engine tractors

1шт.

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 3/8 x 1-1/8 pipe, diesel engine tractors

1шт.

7

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe, carbureted engine tractors

1шт.

7

120127

NIPPLE, 3/8 x 2-1/2 pipe, carbureted engine tractors Nipple, 3/8" NPT x 2 1/2"

1шт.

120755

COUPLING,3/8" NPT

3/8 pipe

1шт.

8

395467R2

CLIP

heater hose, double

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

394271R1

CLIP

heater hose

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

Diesel engine tractors 3/8"-16, G5

1шт.

10

534673R1

CLIP, heater hose twisted, double, carbureted engine tractors

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 5/8 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

534671R1

CLIP, heater hose, single, diesel engine tractors

1шт.

11

529741R2

CLIP, heater hose, diesel engine tractors

1шт.

12

391172R91

HEATER ASSY, tractor cab, for components see list of parts under details of tractor cab heater

1шт.

611112R1

SPACER,1/8" Pipe x 13/16"

1/8 x 13/16 std pipe

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

24987R1

SCREW, 1/4-20 x 1-1/2 C-Z slt-pan-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

HOSE, heater outlet, use 144 in. PF 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

187954

GROMMET,1" ID x 1 3/4" x .062"

1 x 1-3/4 rubber

1шт.

14

114213R1

CLIP, heater cable

1шт.

15

394763R1

CLIP,ELECTRICAL

CLIP, heater cable snap, on

5шт.

16

534672R1

CLIP, heater hose, double, carbureted engine tractors

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-f-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

941980R91

LOCK VALVE

VALVE ASSY, shut-off, at engine block

1шт.
