(N-16) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB DIMENSIONS, EXCEL CABS

Запчасти Case IH 856 (N-16) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB DIMENSIONS, EXCEL CABS Accessories & Attachments

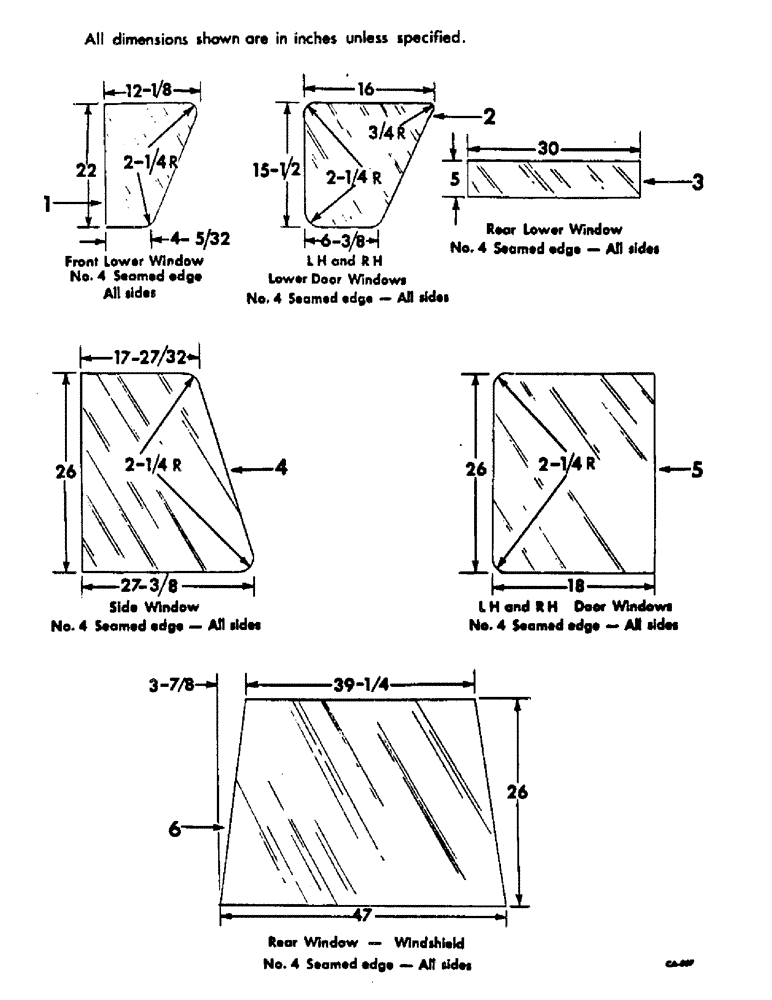

Схема запчастей Case IH 856 - (N-16) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB DIMENSIONS, EXCEL CABS Accessories & Attachments
1
5
6
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

533531R1

GLASS

lower windshield

2шт.

2

533521R1

GLASS, lower door

2шт.

3

533529R1

GLASS, lower rear panel

1шт.

4

533533R1

GLASS

side panel

2шт.

5

533519R1

GLASS

upper door

2шт.

6

533504R1

GLASS, windshield and rear window

2шт.

Выбрано товаров: 6
