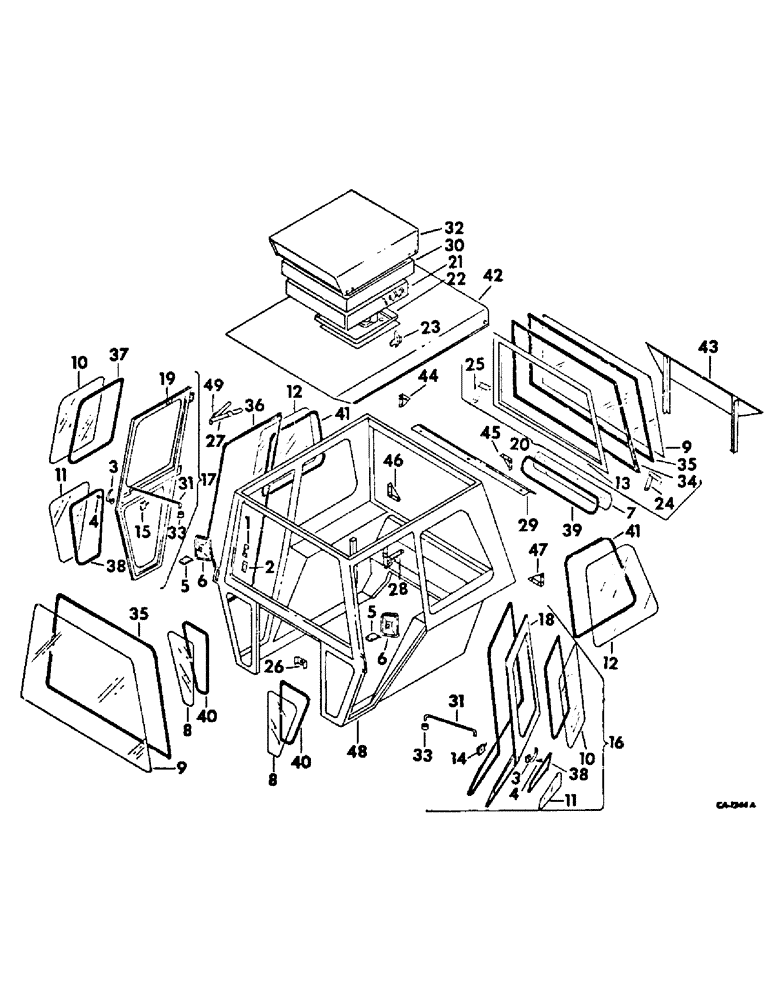

Запчасти Case IH 856 (N-13) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB, EXCEL CABS Accessories & Attachments
№
Артикул
Название
Примечание
Количество
1
533512R1
LARGE PLATE
PLATE, striker
2шт.
23110R1
SCREW, 1/4-20 x 5/8 znd slt-pan-hd mach
1шт.
121637
LOCK WASHER
WASHER, 1/4 znd light lock
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
2
533513R1
SHIM, striker plate
1шт.
3
533523R1
HANDLE
W/KEY, outside door
2шт.
179355
SCREW, 10-24 x 3/4 cr-rec-ov-hd mach
4шт.
4
533857R1
KEY, door handle
2шт.
5
533510R1
BRACKET, mirror mounting
2шт.
6
533511R1
MIRROR
rear view
2шт.
120367
NUT,Hex, 1/4" - 28, Gr 5
1/4-28 znd hex.
2шт.
121637
LOCK WASHER
WASHER, 1/4 znd light lock
2шт.
7
533529R1
GLASS, lower rear panel, refer to tractor cab glass dimensions, this section
1шт.
8
533531R1
GLASS
lower windshield, refer to tractor cab glass dimensions, this section
1шт.
9
533504R1
GLASS, windshield and rear window, refer to tractor cab glass dimensions, this section
1шт.
10
533519R1
GLASS
upper door, refer to tractor cab glass dimensions, this section
1шт.
11
533521R1
GLASS, lower door, refer to tractor cab glass dimensions, this section
1шт.
12
533533R1
GLASS
side panel, refer to tractor cab glass dimension, this section
1шт.
13
533501R91
WINDOW ASSY, rear
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 12 znd hex-hd cap
4шт.
121637
LOCK WASHER
WASHER, 1/4 znd light lock
4шт.
14
533524R1
HANDLE
LATCH, inside LH door
1шт.
440502
SCREW,Hex Hd, #10-24 x 5/8"
10-24 x 5/8 C-Z hex-hd cap
2шт.
131183
WASHER, no. 10 znd lt lock
2шт.
15
533525R1
LATCH
inside RH door
1шт.
440502
SCREW,Hex Hd, #10-24 x 5/8"
10-24 x 5/8 C-Z hex-hd cap
2шт.
131183
WASHER, no. 10 znd lt lock
2шт.
16
533514R91
DOOR ASSY, LH cab
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
SCREW, 1/4-20 5/8 znd hex-hd cap
4шт.
121637
LOCK WASHER
WASHER, 1/4 znd light lock
8шт.
17
533515R91
DOOR ASSY, RH
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
SCREW, 1/4-20 x 5/8 znd hex-hd cap
4шт.
121637
LOCK WASHER
WASHER, 1/4 znd light lock
8шт.
18
533517R91
FRAME, LH door
1шт.
19
533518R91
FRAME, RH door
1шт.
20
533502R91
FRAME ASSY, rear window
1шт.
21
533499R1
SCREEN, filter
1шт.
22
533500R91
PANEL ASSY, blower, refer to cab pressurizer listing, this section
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
23
533497R1
LATCH, pressurizer cover
1шт.
436732
SCREW,Slotted Pan Hd, #10-24 x 1/2"
10-24 x 1/2 C-Z slt-pan-hd mach
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
24
533506R1
ADJUSTER
sash LH
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT LOCK, 3/8"-16, GB
2шт.
477242R1
WASHER
13/32 x 1 x .030 C-Z flat
4шт.
25
533507R1
ADJUSTER, sash RH
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT LOCK, 3/8"-16, GB
2шт.
477242R1
WASHER
13/32 x 1 x .030 C-Z flat
4шт.
26
533528R1
CLIP, cowl shroud, Farmall tractors, Serial Range: -12136
1шт.
26
533528R1
CLIP, cowl shroud, International tractor, Serial Range: -7651
1шт.
436734
SCREW,Slotted Pan Hd, #10-24 x 3/4"
10-24 x 3/4 C-Z slt-pan-hd mach
4шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
4шт.
446161
WIRE CONNECTOR,6 Pole
7/32 x 7/16 x .036 C-Z
4шт.
27
537465R1
DOOR
CHECK, RH, also order bolts, 537467R1, nut, 19296R1 & spring, 537466R1 unless already so equipped
1шт.
537467R1
BOLT (SPREADER),Shoulder, 5/16" - 18
BOLT, 5/16-18 shoulder
2шт.
19296R1
NUT,5/16"-18, G5
5/16-18 cdp hex.
1шт.
28
537464R1
DOOR
CHECK, LH, also order two bolts, 537467R1, nut, 19296R1 & spring, 537466R1 unless already so equipped (replaces 537466R10
1шт.
537467R1
BOLT (SPREADER),Shoulder, 5/16" - 18
BOLT, 5/16-18 shoulder
2шт.
19296R1
NUT,5/16"-18, G5
5/16-18 cdp hex.
1шт.
29
533495R1
SHIELD, rear window rain
1шт.
30
533498R1
FILTER
pressurizer
1шт.
31
533508R1
ADJUSTER, door
2шт.
32
533496R1
COVER, pressurizer
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 znd hex-hd cap
4шт.
121637
LOCK WASHER
WASHER, 1/4 znd light lock
4шт.
33
533509R1
GROMMET
GOMMET, plastic
4шт.
34
533503R1
SEAL, rear window frame weather, 174 in. long, purchase locally
1шт.
35
533505R1
SEAL, rear window glass & windshield molding, 145 in. long, purchase locally
2шт.
36
533516R1
SEAL, door weather, 149 in. long, purchase locally.
2шт.
37
533520R1
SEAL, upper door glass molding, 86 in. long, purchase locally
2шт.
38
533522R1
SEAL, lower glass molding, 52 in. long, purchase locally
2шт.
39
533530R1
SEAL, lower rear panel glass molding, 75 in long, purchase locally
1шт.
40
533532R1
SEAL, lower windshield glass molding, 58 in. long, purchase locally
2шт.
41
533534R1
SEAL, side panel glass molding, 102 in. long, purchase locally
2шт.
42
533494R1
ROOF ASSY, tractor cab
1шт.
120376
NUT,5/16"-18, G5
11шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
SCREW, 5/16-18 x 3/4 znd hex-hd cap
11шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
11шт.
43
535736R1
PANEL, rear reinforcement
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16-18 x 3/4 znd hex. washer hd lock
15шт.
22512R1
SCREW, 5/16-18 x 2-1/4 cdp hex-hd cap
4шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x .051 C-Z, under bolt head
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z hex. washer hd lock
19шт.
44
535737R1
GUSSET, rear upper RH
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16-18 x 3/4 znd hex. washer hd lock
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z hex. washer hd lock
4шт.
45
535738R1
GUSSET, rear upper LH
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16-18 x 3/4 znd hex. washer hd lock
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z hex. washer hd lock
4шт.
46
535739R1
GUSSET, rear lower RH
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16-18 x 3/4 znd hex. washer hd lock
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z hex. washer hd lock
3шт.
47
535740R1
GUSSET, rear lower LH
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16-18 x 3/4 znd hex. washer hd lock
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z hex. washer hd. lock
3шт.
48
536036R91
FRAME ASSY, cab
1шт.
49
537466R1
SPRING
door check
2шт.
Выбрано товаров: 105
