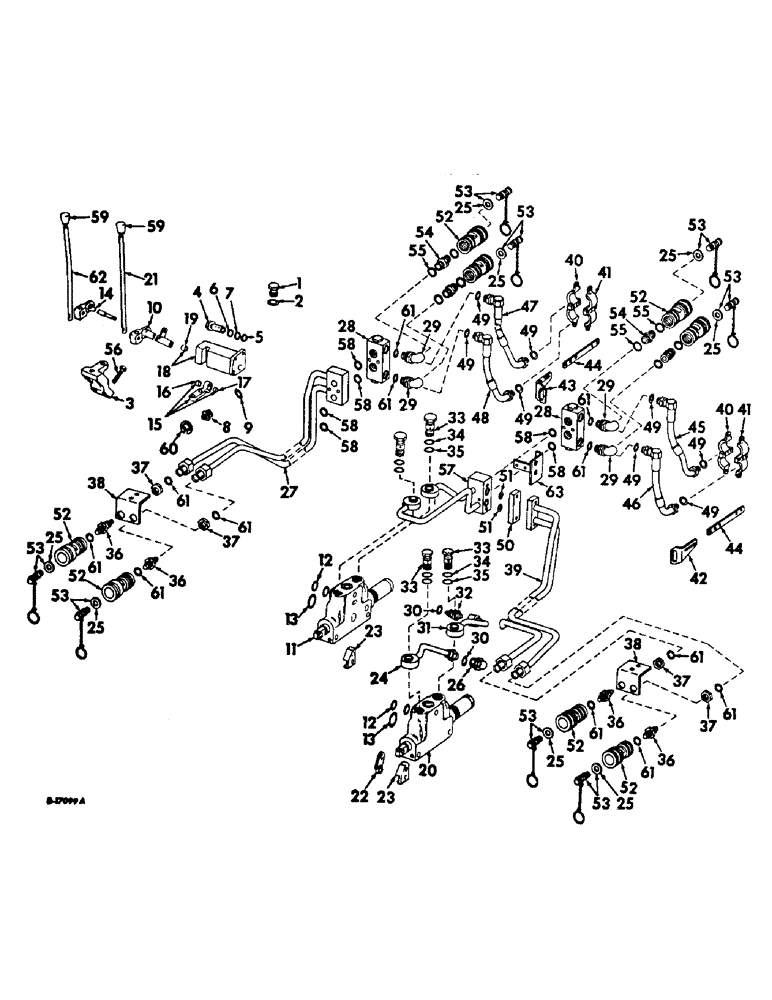

Запчасти Case IH 856 (F-17) - HYDRAULICS SYSTEM, AUXILIARY VALVES AND TUBES (07) - HYDRAULIC SYSTEM

400753R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet, consists of all unmarked parts and those marked unit A

1шт.

400755R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet, tractors w/draft control, consists of all unmarked parts and those marked unit B

1шт.

400759R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet and double acting check valve, consist of all unmarked parts and those marked unit C

1шт.

400761R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet and double acting check valve, tractors w/draft control, consist of all unmarked parts and those marked unit D

1шт.

400765R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet, double acting check valve and breakaway coupling, consist of all unmarked parts and those marked unit E

1шт.

400768R91

PARTS ACCESSORY, single auxiliary hyd valve w/left rear outlet, double acting check valve & breakaway coupling, tractors w/draft control, consists of all unmarked parts and those marked unit F

1шт.

400722R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet, double acting check valve and breakaway coupling, tractors with platform extension, consist of all unmarked parts and those marked unit G

1шт.

400776R91

PARTS ACCESSORY, double auxiliary hydraulic valves w/left and right rear outlets w/double acting check valve, consists of all unmarked parts and those marked unit H

1шт.

400778R91

PARTS ACCESSORY, double auxiliary hydraulic valves w/left and right rear outlets w/double acting check valves, tractors equipped w/draft control, consists of all unmarked parts and those marked unit J

1шт.

400788R91

PARTS ACCESSORY, double auxiliary hydraulic valves w/left and right rear outlet w/double acting check valve on each rear outlet w/left and right front outlet, consists of all unmarked parts and those marked unit K

1шт.

400790R91

PARTS ACCESSORY, double auxiliary hydraulic valves w/left and right rear outlet w/double acting check valve on each outlet w/left and right front outlet, tractors equipped w/draft control, consists of all unmarked parts and those marked unit L

1шт.

400794R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlet w/double acting check valve and breakaway coupling on each outlet, consists of all unmarked parts and those marked unit M

1шт.

400797R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlet w/double acting check valve and breakaway coupling on each outlet, tractors equipped w/draft control, consists of all unmarked parts and those marked unit N

1шт.

400801R91

PARTS ACCESSORY, double auxiliary hyd. valve w/left & right rear outlets w/double acting check valve & breakaway coupling on each rear outlet & left & right front outlet, tractors w/standard drawbar, consists of all unmarked parts and thos marked unit P

1шт.

400804R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left & right rear outlets w/double acting check valve & breakaway coupling on each rear outlet & left & right front outlet, tractors w/draft control, consists of all unmarked parts & those marked unit Q

1шт.

400808R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets w/double acting check valve and breakaway coupling on each outlet, tractors w/platform extension, consists of all unmarked parts and those marked unit R

1шт.

401297R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets, consists of all unmarked parts and those marked unit S

1шт.

401299R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets, tractors w/draft control, consists of all unmarked parts and those marked unit T

1шт.

401303R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets and left and right front outlets, consists of all unmarked parts and those marked unit U

1шт.

401305R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets and left and right front outlets, tractor w/draft control, consists of all unmarked parts and those marked unit V

1шт.

405158R91

LOCK VALVE

PARTS ACCESSORY, second auxiliary hydraulic valve w/right rear outlet, tractors equipped w/single auxiliary hydraulic valve ATT

1шт.

Consists of (1) actuator 384112R11, (1) arm assy 383243R92, (1) base 389166R12, (2) coupling 395150R91, (1) elbow 9410978, (1) handle 389167R1, (1) knob 389168R1, (1) nut 114502, (8) o-ring 364885R1, (2) o-ring 381884R1, (1) o-ring 381885R1, (2) o-ring 384376R1, (1) pin Q875, (1) pin 103384, (1) pin 364436R1, (2) plug 378169R1, (2) plug 401757R11, (1) screw 20641R1, (3) screw 20846R1, (1) screw 179841, (1) support 384111R91, (1) tube 398426R1, (1) tube 398433R1, (3) union 9410204, (1) valve 383267R94

1шт.

403608R91

PARTS ACCESSORY, LH front manifold, for tractors w/single or double auxiliary hydarulic valve ATT, c

1шт.

Consists of (1) angle 398432R1, (2) bolt 15002R1, (2) coupling 395150R91, (2) nut 102635, (2) nut 9403295, (2) o-ring 252707R1, (2) o-ring 364885R1, (2) plug assy 401757R11, (2) screw 179841, (1) tube 398435R1, (2) union 9403256

1шт.

403607R91

PARTS ACCESSORY, RH front manifold, for tractors equipped w/double auxiliary hydraulic valve attachment w/double acting check valve on each rear outlet

1шт.

Consists of (1) angle 398432R1, (2) bolt 15002R1, (2) coupling 395150R91, (2) nut 102635, (2) nut 9403295, (2) o-ring 364885R1, (2) o-ring 379794R1, (2) plug assy 401757R11, (2) screw 186283, (1) tube 398428R1, (2) 9403256

1шт.

1

9410361

PLUG

1-1/16-12 C-Z hyd str thd o-ring boss, check valve port, units A, C, E, G, H, K, M, P, R, S and U

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, check valve port plug, unit A, C, E, G, H, K, M, P, R, S and U

1шт.

3

389605R1

BRACKET

float lockout

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

388208R93

VALVE

ASSY, pilot relief, for components see list of parts under details of pilot relief valve, units A, C, E, G, H, K, M, P, R, S and U

1шт.

5

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner, units A, C, E, G, H, K, M, P, R, S and U

1шт.

6

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve outer, units A, C, E, G, H, K, M, P, R, S and U

1шт.

7

378985R2

BACK-UP RING

relief valve o-ring back-up, units A, C, E, G, H, K, M, P, R, S and U

1шт.

8

391922R1

PLUG

regulator port, units, A, C, E, G, H, K, M, P, R, S and U

1шт.

9

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64, regulator port plug, units A, C, E, G, H, K, M, P, R, S and U

1шт.

10

389164R12

BASE

ASSY, auxiliary valve inner handle

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

383267R94

VALVE

ASSY, hydraulic control, for components see list of parts under details of hydraulic control valve, for units H through V

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap

3шт.

12

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, 2 per valve, open center valve small

1шт.

13

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, 1 per valve, open center valve large

1шт.

14

389166R12

BASE

ASSY, auxiliary valve outer handle, units H thru V

1шт.

15

384111R91

SUPPORT

ASSY, double control lever tube inner

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

383234R1

BUSHING,11.14mm ID x 12.71mm OD x 6.35mm L

control lever shaft

1шт.

17

383233R1

BUSHING,19.15mm ID x 20.65mm OD x 9.65mm L

control lever tube

1шт.

18

383235R21

BRACKET

SUPPORT ASSY, control lever

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

control lever outer

1шт.

20

390826R94

VALVE

ASSY, hydraulic control, for components see list of parts under details of hydraulic control valve

1шт.

631994R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 hex-hd cap

3шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap

3шт.

21

389165R1

SHAFT

HANDLE, auxiliary valve control inner

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

22

383243R92

ARM

ASSY, valve operating outer, units H thru V

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

23

384112R11

DRIVE ASSY.

ACTUATOR ASSY, valve spool

2шт.

24

398433R1

TUBE

ASSY, right rear lift, units H thru V

1шт.

25

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, 2 for units A thru G, 4 for units H, J, M, R, S and T, 8 for units K, L, P, Q, U and V

1шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hydraulic, units H thru V flared tube adj str thd 90 deg right rear lift tube

1шт.

27

398428R1

TUBE

ASSY, right front manifold, units K, L, P, Q, U and N

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

374083R92

VALVE

ASSY, double acting check, 1 for units C, D, E and F, 2 for units H, J, K, K, M, N, P, Q and R, for components see list of parts under details of double acting check valve

1шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Units H, J, M and N Hex, 3/8"-16 x 2", G5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap, units K, L, P and Q

1шт.

29

371357R91

ELBOW

check valve, 2 for unit C and D, 4 for units K, L, P, and Q

1шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, units H thru V

2шт.

31

398426R1

TUBE

ASSY, right rear drop, units H thru V

1шт.

32

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, units H through V

1шт.

33

378169R1

SCREW,Hex, 7/8" - 14 x 1.62"

PLUG, rear tube inlet union short, 2 per valve

1шт.

34

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 per valve, manifold lift pipe union plug smal

1шт.

35

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 x 1/16, 2 per valve, manifold lift pipe union plug large

1шт.

36

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 5/8 tube bulk hd, units K, L, P, Q, U and V

4шт.

37

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 5/8 tube bulk hd union lock, units K, L, P,K Q, U and V

4шт.

38

398432R1

ANGLE, front outlet bracket, units K, L, P, Q, U and V

2шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd Short NK, 3/8"-16 x 7/8", G2, Full Thd

4шт.

102635

NUT,3/8"-16, G5

4шт.

39

398435R1

TUBE

ASSY, left manifold, units K, L, P, Q, U and V

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

40

371114R1

CLAMP

FRAME, self-sealing coupling RH, 1 for units E, F, and L, 2 for units, M, N, P, Q and R

1шт.

Ref #'s 40 (P/N 371114R1), 41 (P/N 371115R1), and 42 (P/N 402316R1) - clamps are too small to fit over new coupling assy. DLR must solve problem locally.

1шт.

41

371115R1

CLAMP

self-sealing coupling, 1 for units E, F, and L, 2 for units M, N, P, Q and R

2шт.

Ref #'s 40 (P/N 371114R1), 41 (P/N 371115R1), and 42 (P/N 402316R1) - clamps are too small to fit over new coupling assy. DLR must solve problem locally.

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 per clamp Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 2 per clamp 1/4"

1шт.

42

402316R1

SUPPORT

BRACKET, self-sealing coupling frame LH, units E, F, M, N, P, Q and R

1шт.

Ref #'s 40 (P/N 371114R1), 41 (P/N 371115R1), and 42 (P/N 402316R1) - clamps are too small to fit over new coupling assy. DLR must solve problem locally.

1шт.

271559

HOOD,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 hex-hd cap

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap type 4, unit F

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap type 4, unit F

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095 plain

1шт.

42

398478R1

BRACE, self-sealing coupling frame, 2 for units G and R

1шт.

Ref #'s 40 (P/N 371114R1), 41 (P/N 371115R1), and 42 (P/N 402316R1) - clamps are too small to fit over new coupling assy. DLR must solve problem locally.

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 hex-hd cap

2шт.

180172

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

43

402317R1

BRACKET, self-sealing coupling RH, units M, N, P and Q

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-5/8 hex-hd cap

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095 plain

2шт.

43

398478R1

BRACE, self-sealing coupling, units G and R

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 hex-hd cap

1шт.

44

402318R1

ARM

self-sealing coupling frame, 1 for units E and F, 2 for units M, N, P and Q

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

45

402226R1

HOSE ASSY.

HOSE ASSY, breakaway upper LH, units E, F, M, N, P and Q

1шт.

45

398485R1

HOSE ASSY.

HOSE ASSY, remote control upper, units G and R

1шт.

46

402227R1

HOSE

ASSY, breakaway lower LH, units E, F, M, N, P and Q

1шт.

46

398486R1

HOSE ASSY.

HOSE ASSY, remote control lower, units G and R

1шт.

47

402224R1

HOSE ASSY.

HOSE ASSY, breakaway upper RH, units M, N, P and Q

1шт.

47

398485R1

HOSE ASSY.

HOSE ASSY, remote control upper, unit R

1шт.

48

402225R1

HOSE

ASSY, breakaway lower RH, units M, N, P and Q

1шт.

48

398486R1

HOSE ASSY.

HOSE ASSY, remote control lower, unit R

1шт.

49

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, units M, N, P, Q and R

8шт.

50

398424R1

BAR, left tube manifold block cap, units A thru HM, N, R, S and T

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

51

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32, manifold block cap

2шт.

52

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self-sealing female, 2 for units A thru G, 4 for units H, J, M, N, R, S and T, 8 for units K, P, Q, U and V

1шт.

53

401757R11

PLUG

ASSY, coupling dust, 2 for units A thru G, 4 for units H, J, M, N, R, S and T, 8 for units K, L, P, Q, U and V

1шт.

54

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, 2 for units A, B, C, and D, 4 for units H, J, K, L, S, T, U and V

1шт.

55

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for units A, B, C and D, 8 for units H, J, K, L, S, T, U and V, 12 for units M & N

1шт.

56

20641R1

SCREW

5/16-18 x 1-3/8 hex-hd mach, adjusting screw, 1 for units A thru G, 2 for units H thru V

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

57

398420R1

MANIFOLD

ASSY, left rear

1шт.

102635

NUT,3/8"-16, G5

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

58

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, 2 for units C, D, E, F, U and V, 4 for units H, J, M, N and R, 6 for units K, L, P and Q

1шт.

59

389168R1

KNOB

auxiliary valve control handle, 1 for units A thru G, 2 for units H thru V

1шт.

60

Not used in this application

1шт.

61

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 used units K, L, P, Q, U and V

1шт.

62

389167R1

LEVER

HANDLE, auxiliary valve control outer, unit H thru V

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

63

398425R1

ANGLE

BRACKET, left rear manifold

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, hyd self-sealing male, 2 for units A thru G, 4 for units H, J, M, N, R, S and T, 8 for units K, L, P, Q, U and V

1шт.

9410360

PLUG

7/8-14 str-thd o-ring boss, 2 used per rear cutlet

1шт.

Required for tractors without hydraulic self sealing coupling assembly.

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 used per rear outlet

1шт.

Required for tractors without hydraulic self sealing coupling assembly.

1шт.

9403373

CAP,37 Degree, 7/8"-14

7/8-14 37 deg hyd flared tube, 2 used per front outlet

1шт.

Required for tractors without hydraulic self sealing coupling assembly.

1шт.
