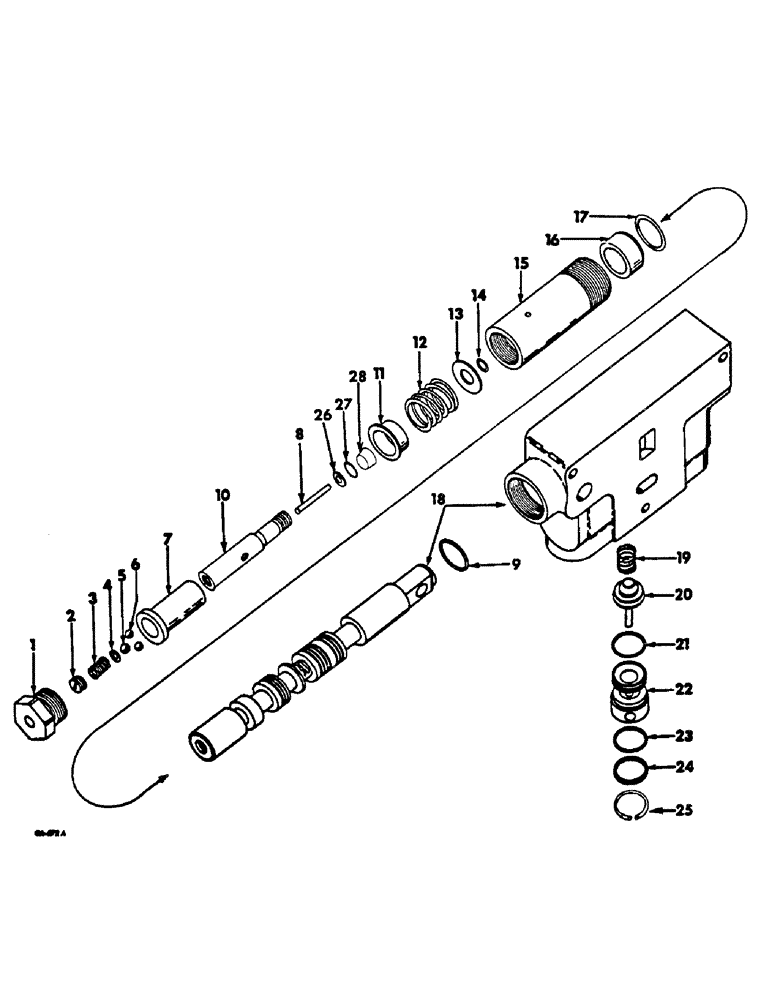

Запчасти Case IH 856 (F-14) - HYDRAULICS SYSTEM, HYDRAULIC CONTROL VALVE, FOR USE WITH 2000 PSI TO 2500 PSI SYSTEMS (07) - HYDRAULIC SYSTEM

529910R93

LOCK VALVE

VALVE ASSY, hydraulic control

1шт.

529911R93

LOCK VALVE

VALVE ASSY, hydraulic control

1шт.

1

376425R1

PLUG

CAP, control valve

1шт.

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 steel button, control valve cap

1шт.

2

377803R1

PLUG

spring retaining

1шт.

3

377802R1

SPRING

detent

1шт.

4

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

5

17010R1

BALL,5/16" Dia

Detent actuating 5/16" Dia

1шт.

6

17008R1

BALL,1/4" Dia

Chrome-Steel, detent 1/4" Dia

3шт.

7

376426R2

SLEEVE

position control

1шт.

8

529905R1

PISTON

unlatching

1шт.

9

406181R1

O-RING,21.82mm ID x 3.53mm Width

7/8 x 1-1/8 x 1/8, S treated, control valve spool upper

1шт.

10

529901R91

ACTUATOR

ASSY, centering spring, includes ref nos 26, 28 and 28

1шт.

11

376423R1

CUP

RETAINER, centering spring

1шт.

12

376422R1

VALVE SPRING

SPRING, centering

1шт.

13

376420R2

WASHER,13.34mm ID x 33.53mm OD x 1.52mm Thk

centering spring thin

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Centering spring actuator

1шт.

15

395783R2

SLEEVE CYLINDER

SLEEVE, cap retaining

1шт.

16

395781R3

DETENT

RETAINER, valve spool o-ring

1шт.

17

528249R1

O-RING

7/8 x 1-1/16 x 3/32, S treated, control valve spool lower

1шт.

18

BODY ASSY, control valve, not serviced separately, order valve assy

1шт.

19

395278R1

SPRING

back flow check poppet valve

1шт.

20

395277R1

VALVE

back flow check poppet

1шт.

21

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, check poppet retainer inner

1шт.

22

383280R1

VALVE

RETAINER, valve back flow check poppet

1шт.

23

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, check poppet retainer outer

1шт.

24

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, check poppet retainer o-ring back-up

1шт.

25

537603R1

RING

1шт.

26

529903R1

WASHER

back-up

1шт.

27

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1/8 x 1/4 x 1/16, centering spring actuator

1шт.

28

529904R1

RETAINER

PLUG, actuator valve

1шт.

383548R92

SET OF PARTS

PACKAGE, hyd open center control valve service

1шт.

Consists of (1) o-ring 359158R1, (1) o-ring 362796R1, (1) o-ring 364879R1, (1) o-ring 406181R1, (1) o-ring 528249R1, (1) retainer 383280R1, (1) ring 537603R1, (1) spring 395278R1, (1) valve 395277R1, (1) washer 376433R1

1шт.

548788R91

STRIPPER PACKAGE

PACKAGE, control valve lower seal, consists of (1) o-ring 548249R1, (1) retainer 395781R3, (1) sleeve 395783R2

1шт.
