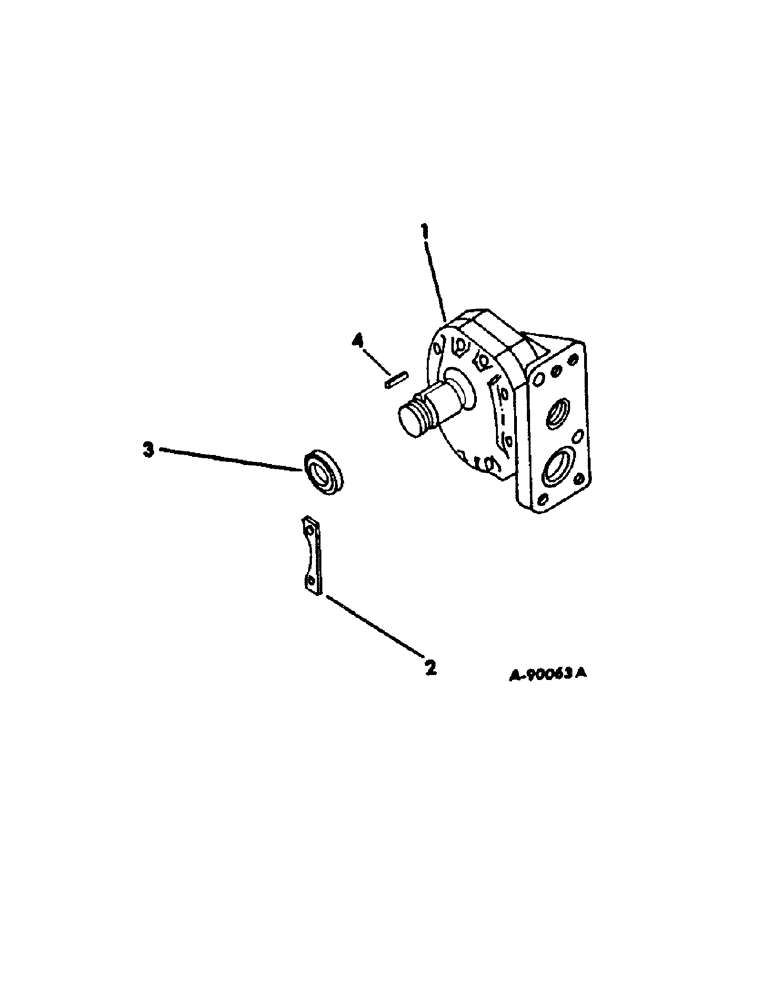

Запчасти Case IH 856 (F-11) - HYDRAULICS SYSTEM, HYDRAULIC PUMP, CESSNA, 9 GPM (07) - HYDRAULIC SYSTEM

1

527397R92

HYDRAULIC PUMP

PUMP ASSY HYDRAULIC

1шт.

1

1949304C1

REMAN-HYD PUMP

Reman for New PN 527397R92

1шт.

1

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

528174R1

SCREW

5/16-18 x 1 special hex-hd cap, pump cover, includes ref nos 2, 3 and 4

2шт.

2

531530R1

LARGE PLATE

PLATE, washer

1шт.

3

383534R91

OIL SEAL

pump drive shaft

1шт.

4

383539R1

KEY

pump drive shaft

1шт.

383530R93

KIT

PACKAGE, hydraulic pump o-ring & gasket, consists of (1) diaphragm 406005R1 (NSS), (1) gasket 406004R1 (NSS), (1) gasket 539769R1 (NSS), (1) o-ring 350667R1, (1) o-ring 372821R1, (1) plate 539768R1 (NSS), (1) seal 383533R1 (NSS), (1) seal 383534R91

1шт.
