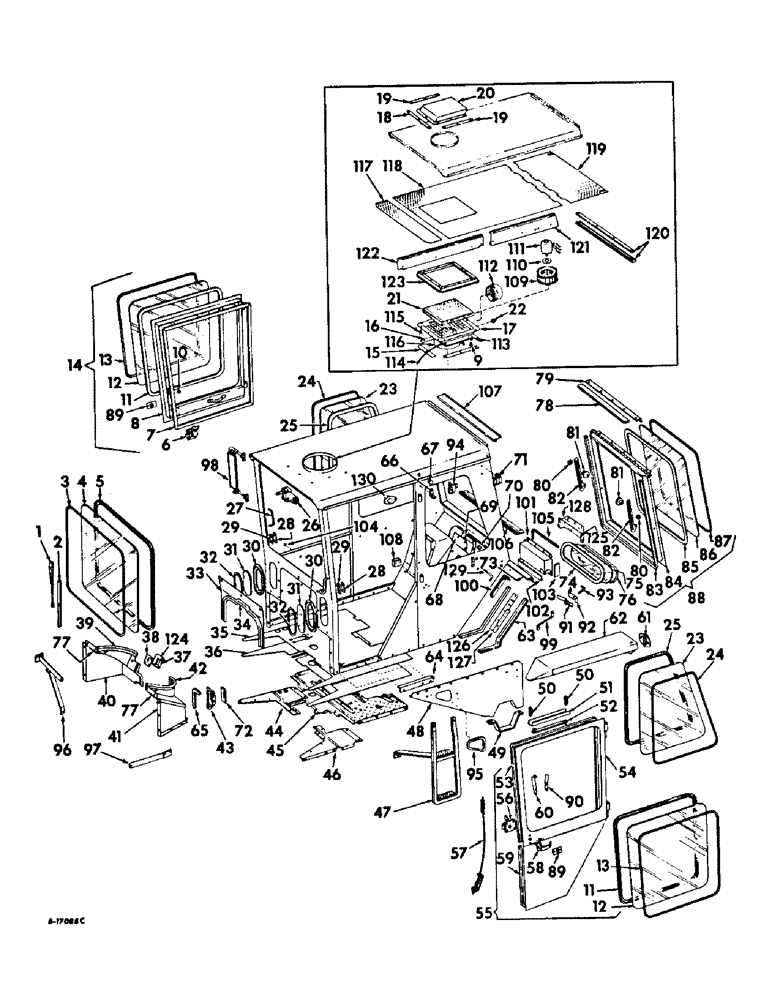

Запчасти Case IH 856 (N-03) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB AND CONNECTIONS, ALLEN CABS Accessories & Attachments

1

404242R1

ARM

ASSY, wiper

1шт.

2

346909C1

WIPER

BLADE ASSY, wiper

1шт.

3

391784R1

SEAL, front windshield filler strip, 128 in. long, purchase locally

1шт.

4

391534R1

GLASS, front windshield, for details, see listing under tractor cab glass dimensions

1шт.

5

391783R1

SEAL, front windshield moulding, 128 in. long, purchase locally

1шт.

6

391530R91

LATCH ASSY, RH door

1шт.

446607

SCREW, 10-32 x 1/2 C-Z cr-rec-truss hd mach

4шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

4шт.

7

391771R1

SEAL, RH door weatherstrip, 135 in. long, purchase locally

1шт.

8

395242R91

FRAME ASSY, RH door

1шт.

9

399350R1

KNOB, fresh air

1шт.

10

391772R2

GROMMET, rubber

1шт.

11

391769R1

SEAL, upper LH & RH window moulding, 114 in. long, purchase locally

1шт.

12

391515R1

GLASS, LH and RH door, For details, see listing under tractor cab glass dimensions

2шт.

13

391770R1

SEAL, upper LH & RH door glass filler strip, 114 in. long, purchase locally

1шт.

14

395234R91

DOOR ASSY, RH

1шт.

15

391752R1

SEAL, pressurizer blower short

2шт.

16

391753R1

SEAL, pressurizer blower long

2шт.

17

391503R92

BLOWER ASSY, pressurizer

1шт.

18

391750R1

SEAL, air intake short

1шт.

19

391751R1

SEAL, air intake long

1шт.

20

391502R91

HOOD ASSY, pressurizer

1шт.

137138

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 C-Z slt-truss hd mach

10шт.

262047C1

NUT, 1/4-20 spin lock flange

10шт.

21

391505R2

FILTER, pressurizer blower

1шт.

22

391504R91

SWITCH

blower toggler

1шт.

23

391787R1

GLASS, cab side window, for details, see listing under tractor cab glass dimensions

2шт.

24

391789R1

SEAL, side window filler strip, 100 in. long, purchase locally

2шт.

25

391788R1

SEAL, cab side window moulding, 100 in. long, purchase locally

2шт.

26

391195R92

WIPER MOTOR

MOTOR ASSY, windshield wiper, for components, see list of parts under details of windshield wiper motor

1шт.

145193

BATTERY

10-16 x 1/2 C-Z slt-pan-hd tap.

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 C-Z int-ext tooth lock

1шт.

27

391761R1

HOOK, RH door

1шт.

27

395012R1

HOOK, LH door

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

446179

WASHER,#12

1/4 x 1/2 x .036

2шт.

28

392801R1

STRIKER PLATE

STRIKER, door

2шт.

134416

BRACKET

SCREW, 1/4-20 x 1/2 C-Z slt-ov-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

138604

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, 1/4 csk ext-tooth lock

4шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 int ext-tooth lock

4шт.

29

392794R91

PLATE ASSY, door striker

2шт.

30

391785R1

SEAL, front lower window moulding, 30 in. long, purchase locally

2шт.

31

391535R1

GLASS

front lower window, for details, see listing under tractor cab glass dimensions

2шт.

32

391786R1

SEAL, front lower window filler strip, 60 in., purchase locally

2шт.

33

391495R91

PANEL ASSY, front filler

1шт.

120376

NUT,5/16"-18, G5

7шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18 x 3/4 C-Z slt-truss hd mach

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

7шт.

34

SEAL, front filler, use 40 in. of seal from 12 foot length marked, 391510R1

1шт.

35

398853R1

MAT, floor

1шт.

36

398854R1

PAD, floor mat

1шт.

37

403886R11

PANEL W/SEAL 403888R1, park lock, for service replacement on 391749R1, also order one shroud 403885R91

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-truss hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

391748R1

SEAL, park lock lever, used w/retainer, 391749R1

1шт.

38

403888R1

SEAL, park lock lever, used with panel, 403886R11

1шт.

39

SEAL, front RH shroud, use 28 in. from 12 foot length marked, 391510R1

1шт.

40

403885R91

SHROUD ASSY, front RH, replaces 398953R91, furnish 403885R91 and 403886R11

1шт.

120376

NUT,5/16"-18, G5

8шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

1шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18 x 3/4 C-Z slt-tryss hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

668569R1

WASHER

11/16 x 1-1/2 x 11 ga C-Z

1шт.

41

398947R91

SHROUD ASSY, front LH

1шт.

41

398950R91

SHROUD ASSY, front LH, tractors with all wheel drive

1шт.

120376

NUT,5/16"-18, G5

8шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x C-Z hex-hd cap

1шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18 x 3/8 C-Z slt-truss hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

668569R1

WASHER

11/16 x 1-1/2 x 11 ga C-Z

1шт.

42

SEAL, front LH shroud, use 30 in. of seal from 12 foot length marked, 391510R1

1шт.

42

SEAL, front shroud LH upper, tractors with all wheel drive, use 15.5 in. for LH upper and 8.3 in. for LH lower from 12 ft. length marked, 391510R1

1шт.

43

392668R91

PANEL ASSY, shift lever, tractors with all wheel drive

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-pan-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

44

406288R1

EXTENSION, platform RH

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

19540R1

SCREW, 3/8-16 x 1 C-Z slt-truss-hd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

45

406279R4

PLATFORM, rear frame, also order front platform, 406280R1, Farmall tractors

1шт.

46

406287R1

EXTENSION, platform LH

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

19540R1

SCREW, 3/8-16 x 1 C-Z slt-truss-hd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

47

391792R91

STEP ASSY, cab mounting

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .122 C-Z

1шт.

48

391151R21

SUPPORT ASSY, cab LH

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext tooth lock

2шт.

48

391152R21

SUPPORT ASSY, cab RH

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

135629

GATHERING CHAIN

1/2 C-Z ext tooth lock

2шт.

49

391153R1

STRAP, cab support mounting

2шт.

50

21983H

SPRING

LH door check

2шт.

17044R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cd-pltd ESNA stop

2шт.

446477

WASHER

7/16 x 1-3/8 x .065 C-Z

2шт.

51

392788R1

CHANNEL, LH door check spring

1шт.

52

392787R91

STRAP ASSY, LH door check

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

1шт.

53

391775R1

SEAL, upper LH door weather, 106 in. long, purchase locally

1шт.

54

395738R1

DOOR, frame LH

1шт.

55

395235R92

DOOR ASSY , LH

1шт.

56

391527R91

LATCH

ASSY, LH door

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

446607

SCREW, 10-32 x 1/2 C-Z cr-rec-truss hd mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

2шт.

57

392792R91

CABLE

ASSY, lower LH door

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

125681

SCREW, 5/16-18 x 5/8 C-Z slt-truss-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

58

393237R1

HANDLE ASSY, LH door

1шт.

436746

SCREW

10-32 x 1/4 C-Z slt-pan-hd mach

2шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

2шт.

59

391777R1

SEAL, lower LH door weather 64 in. long

1шт.

60

395239R1

LATCH, flap

1шт.

61

995170R2

REFLECTOR, fender red

2шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-rd-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

62

391507R91

FENDER ASSY, LH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

62

391508R91

FENDER ASSY, RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

63

391510R1

SEAL

rear filler panel

1шт.

64

398946R2

ANGLE, floor mat retainer

1шт.

65

397211R1

SEAL, shift lever panel

1шт.

66

392790R1

BRACKET, LH door hinge retainer

1шт.

137138

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 C-Z slt-truss hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

67

1017954R1

PLUG,Cap, .485" OD

lift hole, clear

2шт.

68

398823R1

SEAL, hitch quadrant

1шт.

69

398824R1

RETAINER, hitch quadrant seal

1шт.

137138

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 C-Z slt-truss-hd

8шт.

79993R1

NUT

1/4-20 speed

8шт.

70

392796R1

BUMPER, cab rear rubber

1шт.

133043

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 C-Z slt-rd-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

71

2751844R1

PRODUCT GRAPHIC

IH emblem, optional w/2751846R1

2шт.

155097

SCREW, 10-24 x 5/16 cr-rec-rd-hd mach

4шт.

131015

WASHER

3/16 x 7/16 x .049 C-Z

4шт.

71

2751846R1

EMBLEM CASE/IH

PRODUCT GRAPHIC, IH emblem, optional w/2751844R1

2шт.

385129R1

SCREW,Sl Rnd Hd, #10 - 16 x 3/8"

10-16 x 3/8 thd-cutting

4шт.

446152

HYD CONNECTOR

13/64 x 15/32 x .049

4шт.

72

397220R1

SEAL, adhesive back

1шт.

73

391506R1

BAR, fender tie

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

74

391766R1

SEAL, rear lower window moulding, 60 in. long, purchase locally

1шт.

75

391536R1

GLASS, rear lower window, for details, see listing under tractor cab glass dimensions

1шт.

76

391767R1

SEAL, rear lower window filler strip, 60 in. long, purchase locally

1шт.

77

397669R1

PAD, non-slip

2шт.

78

392786R1

SEAL, rear window rain gutter, 31 in. long, purchase locally

1шт.

79

392785R1

SHIELD, rear window rain

1шт.

157733

SCREW, 1/4-20 x 3/4 C-Z truss-hd

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

80

52747R1

SPACER, rear window regulating arm

4шт.

81

391511R1

KNOB

rear window regulating arm

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

82

392800R1

ARM, regulator

2шт.

83

391765R1

SEAL, rear window weather, 93 in. long, purchase locally

1шт.

84

391512R91

FRAME ASSY, rear window

1шт.

85

391763R1

SEAL, rear window glass moulding, 112 in. long, purchase locally

1шт.

86

391513R1

GLASS, rear window, for details, see listing under tractor cab glass dimensions

1шт.

87

391764R1

SEAL, rear window glass filler strip, 112 in. long, purchase locally

1шт.

88

391762R91

WINDOW ASSY, rear

1шт.

89

395241R1

STRIKER, open door anchor

2шт.

157716

SCREW, 1/4-20 x 1/2 C-Z cr-rec-truss hd mach

4шт.

121753

WASHER

1/4 C-Z ext-tooth lock

4шт.

90

395240R1

BAR, stop

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

NLS

NO LONGER SERVICED

1/4 C-Z ext-tooth lock

4шт.

91

395236R1

LATCH

door

2шт.

92

395237R1

SUPPORT

LATCH , spring

2шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

4шт.

121753

WASHER

1/4 C-Z ext-tooth lock

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

93

395238R1

ROD, door release

2шт.

NLS

NO LONGER SERVICED

5/16-18 C-Z hex. jam

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

94

397000R1

HOOK, coat

1шт.

144640

SCREW, 10-12 x 1/2 C-Z slt-f-hd tap.

2шт.

95

398856R1

MOULDING, cab support

2шт.

96

403997R1

BRACE ASSY, RH front

1шт.

L23059

SPACER, 3/4 x 13/16 strong pipe

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

97

401539R1

BRACE ASSY, LH front

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

2шт.

375250R1

SCREW,Flg, 5/8" - 11 x 2 1/4"

5/8-11 x 2-1/4 12 pt cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

98

401538R91

MIRROR ASSY, rear view, optional w/527346R91, for components see list of parts under details of rear view mirror

1шт.

527346R91

MIRROR ASSY, rear view, optional w/401538R91, for components see list of parts under details of rear view mirror

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

99

401545R1

BRACE, rear

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 13 x 1-1/4 hex-hd cap

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

SCREW, 5/8-11 x 3-7/8 hex-hd cap

2шт.

100

398825R1

SUPPORT ASSY, rear panel

1шт.

101

398828R91

FILLER ASSY, rear panel

1шт.

137138

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 C-Z slt-truss-hd mach

8шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

102

398832R1

SEAL, rear panel bottom, 14 in. long

1шт.

103

398833R1

SEAL, rear panel side, 4-5/8 in. long

1шт.

104

432407

PLUG, 13/32 button

4шт.

105

SEAL, left rear panel, use 7-1/2 in. of seal from 12 ft length marked, 391510R1

1шт.

105

SEAL, right rear panel, use 18-1/2 in. of seal from 12 ft length marked, 391510R1

1шт.

106

401562R1

RETAINER ASSY, rear roof top

1шт.

107

401565R1

RETAINER ASSY, rear window top

1шт.

108

401676R1

TRAY, ash

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, 10-24 x 3/8 slt-pan-hd tap.

2шт.

109

224557R91

WHEEL, blower

1шт.

139010

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW, 1/4-28 x 5/16 hex-soc-hd cup-pt set

1шт.

110

213246R1

SHIM, motor mounting

1шт.

111

399353R2

MOTOR

pressurizer blower

1шт.

112

238747R91

OUTLET ASSY, air

1шт.

113

399347R1

GROMMET, rubber

1шт.

114

399345R1

CABLE ASSY, switch to harness connector

1шт.

115

399346R1

SCREW, 1/4-20 x 3/4 thumb

2шт.

116

399354R2

BLOWER AND CASE ASSY, pressurizer

1шт.

399348R1

BUMPER, rubber

1шт.

117

401591R1

HEADLINER, front roof

1шт.

118

401569R1

HEADLINER, rear window top

1шт.

119

401579R1

HEADLINER, rear roof

1шт.

120

401602R1

TRIM, snap

1шт.

145193

BATTERY

10-16 x 1/2 slt-pan-hd tap.

5шт.

121

401580R1

RETAINER, LH top front window

1шт.

121

401581R1

RETAINER, RH top front window

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, 10-24 x 3/8 slt-pan-hd tap.

16шт.

122

401580R1

RETAINER, top side window LH

1шт.

122

401575R1

RETAINER, top side window RH

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, 10-24 x 3/8 slt-pan-hd tap.

8шт.

123

401592R1

RETAINER, pressurizer outer

1шт.

124

SEAL, park lock, use 6 in. of seal from 12 ft length marked, 391510R1, used w/panel, 403886R11

1шт.

125

(Not used in this application)

1шт.

126

(Not used in this application)

1шт.

127

(Not used in this application)

1шт.

128

(Not used in this application)

1шт.

129

(Not used in this application)

1шт.

130

(Not used in this application)

1шт.

432416

PLUG,5/16"

5/16 C-Z button

3шт.

432487

HOLE PLUG BUTTON,11/16"

PLUG, 11/16 C-Z button

2шт.

432571

PLUG, 1-7/8 C-Z button

1шт.
