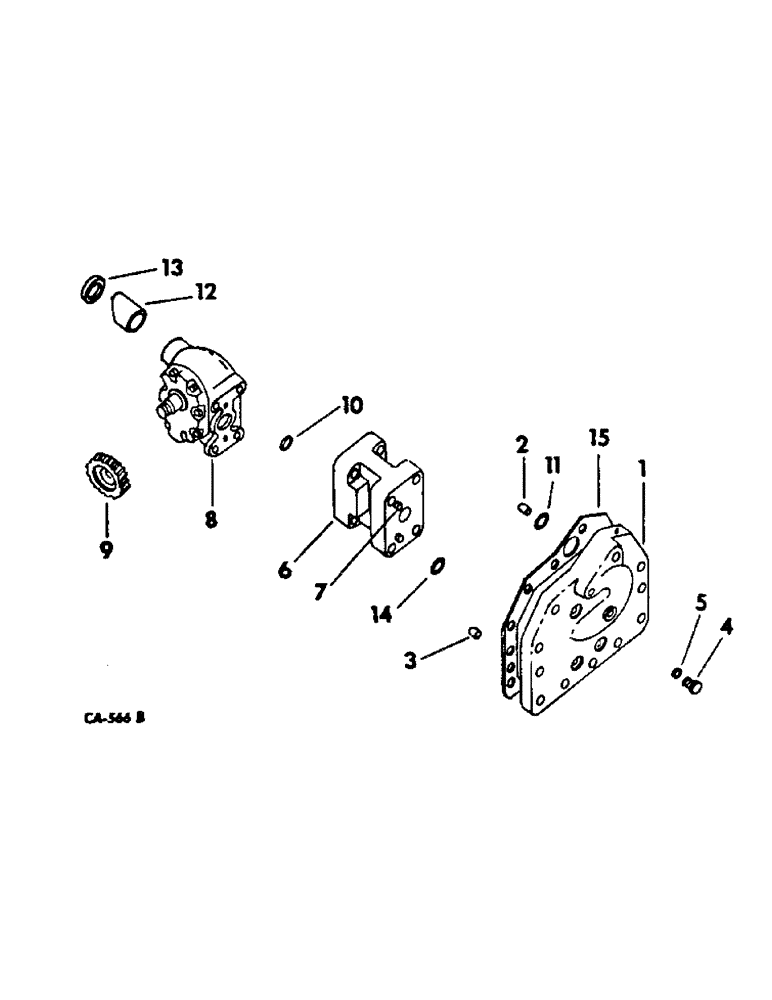

Запчасти Case IH 856 (F-07) - HYDRAULICS SYSTEM, HYDRAULIC POWER SUPPLY, IN REAR FRAME (07) - HYDRAULIC SYSTEM

1

387348R11

FLANGE ASSY, pump mounting, includes ref nos 2 & 3, Farmall tractors, Serial Range: -33897

1шт.

1

387348R11

FLANGE ASSY, pump mounting, includes ref nos 2 & 3, International tractor, Serial Range: -9700

1шт.

1

537166R11

FLANGE

ASSY, pump mounting, includes ref nos 2 & 3, Farmall tractors, Start Serial: 33898

1шт.

1

537166R11

FLANGE

ASSY, pump mounting, includes ref nos 2 & 3, International tractor, Start Serial: 9701

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

10шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

20031R1

DOWEL,3/8" x 5/8"

PIN, 3/8 x 5/8 dowel

2шт.

3

19954R1

DOWEL,5/16" x 5/8"

PIN, 5/16 x 5/8 dowel

2шт.

4

9410358

PLUG

9/16-18 C-Z hyd str thd o-ring boss, pump mounting flange

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pump mounting flange plug

1шт.

6

382753R11

SPACER

ASSY, hyd pump

1шт.

7

384116R1

PIN

hydraulic pump spacer

2шт.

8

373964R94

PUMP

ASSY, hydraulic gear, 12 GPM, cessna, for components see list of parts under details of hydraulic pump, optional with 374483R96

1шт.

8

374483R96

PUMP

ASSY, hydraulic gear, 12 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 373964R94

1шт.

8

373966R94

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 17 GPM, cessna, for components see list of parts under details of hydraulic pump, optional with 527755R91

1шт.

8

1949292C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

8

1949293C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

8

527755R91

PUMP

ASSY, hydraulic gear, 17 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 373966R94

1шт.

52999D

WASHER

GASKET, pump mounting bolt

4шт.

16252R1

SCREW, 7/16-14 x 4-3/4 hex-hd cap Hex, 7/16"-14 x 4 3/4", G5

4шт.

9

382754R2

GEAR

hyd pump drive, 23 teeth

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 nylon insert

1шт.

10

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port large

1шт.

11

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

1 x 1-3/16 x 3/32, pump mtg flange to rear frame, used w/flange, 387348R11

1шт.

11

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

O-RANGE, 1-1/8 x 1-5/16 x 3/32, pump mtg flange to rear frame, used w/flange, 537166R11

1шт.

12

382755R2

TUBE,13.75 mm OD, 58.62 mm Length

pump suction

1шт.

13

537545R92

SEAL

pump suction tube oil

1шт.

14

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, pump mounting flange to spacer

1шт.

15

382244R2

GASKET

pump mounting flange

1шт.
