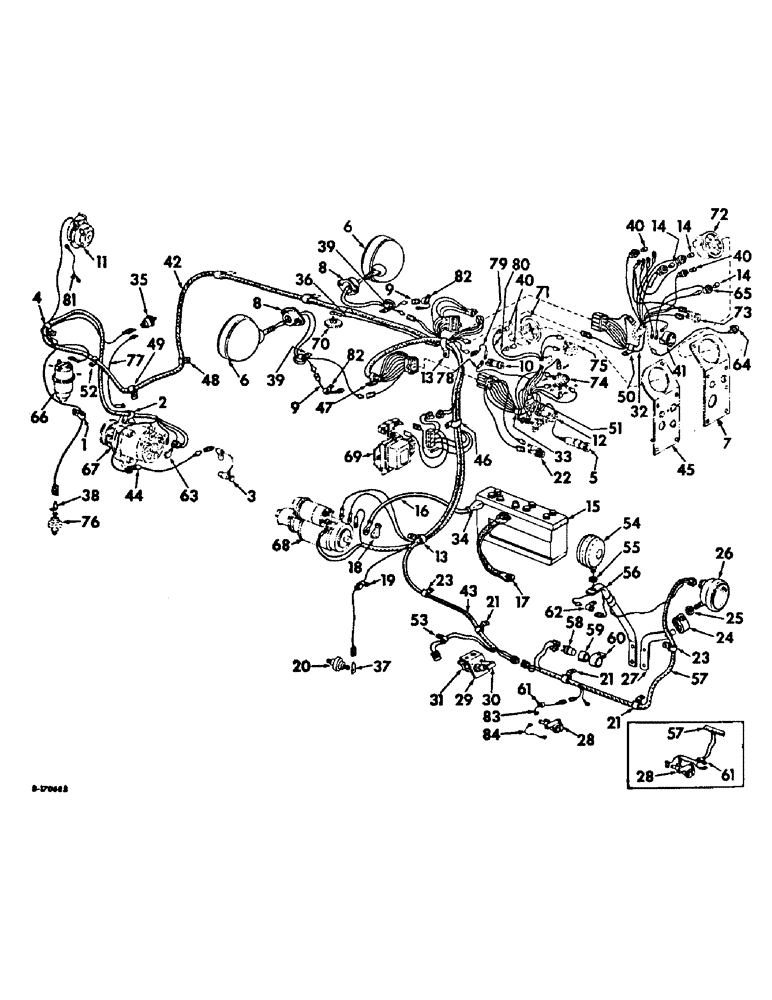

Запчасти Case IH 856 (G-07) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

405883R91

PARTS ACCESSORY, electric breakaway connector socket, tractors not equipped w/deluxe fenders, consists of ref nos 28, 61, 83 84 and attaching hardware, Start Serial: 19960

1шт.

405884R91

PART ACCESSORY, electric breakaway connector socket, tractors equipped w/deluxe fenders, consists of ref nos 28, 83, 84 and attaching hardware, Start Serial: 19959

1шт.

1

370535R1

CLIP

cable, on valve cover front upper mounting bolt

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on alternator adjustment bolt, 2 used LP gas engine tractors

1шт.

102635

NUT,3/8"-16, G5

LP gas engine tractors 3/8"-16, G5

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

3

VALVE ASSY, fuel shut off, refer to carburetor listing in eng, 2 pars catalog

1шт.

4

370383R1

CLIP

cable harness, on water outlet housing LH mounting bolt

1шт.

5

LIGHTER ASSY, cigarette, refer to engine controls and instruments listing, section H

1шт.

6

387728R91

LIGHT

ASSY, shock proof head, only serviceable items are sealed beam unit, 371443R91 and rubber retainer, 313957R1

2шт.

120371

NUT,1/2"-20, G5

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

PANEL ASSY, instrument RH, refer to engine controls and instrument listing, section H

1шт.

8

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113901

SCREW, 5/16-18 x 1/2 slt-f-hd mach

4шт.

9

370387R91

CABLE

ASSY, head light, Serial Range: junction-ground

2шт.

10

SWITCH ASSY, horn, refer to engine controls and instruments listing, section H

1шт.

11

ELECTRIC HORN, refer to electric horn listing, this section

1шт.

12

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

13

362666R1

CLIP

front & rear main harness

2шт.

14

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt

3шт.

15

392236R91

BATTERY, prestolite 3327x 12 volt, replaces 406104R1

1шт.

16

383615R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, battery cable

1шт.

17

629029R92

NEG BATTERY CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

18

364910R1

BOOT

COVER, battery terminal

1шт.

19

384556R1

CLAMP

CLIP, transmission oil pressure switch cable

1шт.

20

376855R92

SWITCH

transmission oil pressure

1шт.

21

383622R1

CLIP

rear main cable harness

3шт.

22

HOUSING ASSY, fuse, refer to engine controls and instruments listing, section H

1шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear main cable harness

2шт.

24

350920R1

CLAMP

combination rear light

1шт.

25

365503R1

SPACER

combination rear light

1шт.

26

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490, sealed beam unit, 371461R91 and rubber retainer, 676078R1

1шт.

102637

NUT,1/2"-13, G5

1шт.

27

397479R11

SUPPORT

ASSY, rear light bracket

1шт.

NLS

NO LONGER SERVICED

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .060) 3/8"

2шт.

28

362002R92

SOCKET

ASSY, breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap, 2 used w/deluxe flat top fenders

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

30

384046R1

STEM

ROD, safety starting switch

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

31

382728R91

SWITCH

safety starting

1шт.

32

405275R1

WIRE HARNESS

HARNESS ASSY, panel cable RH, tractors w/fuel gauge

1шт.

32

405276R1

HARNESS ASSY, panel cable RH, tractors w/o fuel gauge

1шт.

33

405274R1

HARNESS

ASSY, panel cable LH, will work for 398923R1

1шт.

34

383618R1

COVER

battery cable terminal

1шт.

35

SWITCH ASSY, electric air cleaner, refer to air cleaner and connections, section E

1шт.

36

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector, gasoline

1шт.

37

384396R1

SPADE TERMINAL,Male

TERMINAL, transmission oil pressure switch straight

1шт.

38

365501R1

TERMINAL CONNECTOR

TERMINAL, engine oil pressure switch angle

1шт.

39

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on steering and gear selector support

2шт.

40

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster, 3 used on LP gas engine tractors

4шт.

41

INDICATOR, electric air cleaner, refer to engine controls, refer to engine controls and instruments listing, section H

1шт.

42

405277R1

HARNESS

ASSY, front main cable, will work for 398927R1

1шт.

42

405909R1

HARNESS ASSY, front main cable, tractors w/magnetic pulse ignition

1шт.

43

405291R2

HARNESS ASSY, rear main cable

1шт.

44

384556R1

CLAMP

CLIP, solenoid junction cable, on alternator rear mounting bolt

1шт.

45

PANEL ASSY, instrument LH, refer to engine controls and instruments listing, section H

1шт.

46

363117R1

CLIP

front & rear main cable harness

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

47

370383R1

CLIP

rear main harness, on steering and gear selector support LH front mounting bolt, gasoline engine tractors

1шт.

48

399657R1

CLIP

front main harness, on fuel tank lower rear mounting bolt, gasoline engine tractors

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

49

363660R1

CLIP

front main harness, on LH fuel tank support front mounting bolt, gasoline engine tractors

1шт.

50

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, RH panel harness, on range transmission selector drive shaft bushing rear mounting bolt

1шт.

51

384557R1

CLIP

LH panel harness, on junction block RH mounting stud

1шт.

52

362123R1

CLIP

front main harness, on clutch housing cover RH front mounting bolt

1шт.

53

384554R1

CLIP

safety switch cable

1шт.

54

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 8417866 and lens, amber, 899280R1 or lens, red, 899279R1, dietz

1шт.

120371

NUT,1/2"-20, G5

1шт.

135639

WASHER, 1/2 C-Z ext-tooth lock

1шт.

55

394262R1

WASHER

GASKET, flashing warning light

1шт.

56

394135R1

BRACE, flashing warning mounting

1шт.

57

398926R1

HARNESS

ASSY, combination and flashing light, Serial Range: -19958

1шт.

57

405880R1

HARNESS

ASSY, combination and flashing light, Start Serial: 19959

1шт.

58

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

59

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

60

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

61

395228R1

CABLE CLIP

CLIP, breakaway connector cables

1шт.

62

358986R1

CABLE CLIP

CLIP, cable

1шт.

63

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

64

397946R1

LIGHT

ASSY, gear selector

1шт.

65

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

66

IGNITION COIL, refer to spark plugs, coil, cables, and distributor listing, in Eng, 2 parts catalog

1шт.

67

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

68

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

399470R1

BOOT

INSULATOR, terminal cover bolt, on cranking motor, S, terminal

1шт.

69

VOLTAGE REGULATOR, refer to voltage regulator listing, this section

1шт.

70

SENDING UNIT, fuel gauge, refer to fuel tank, piping and connections listing, section E

1шт.

71

TACHOMETER SPEEDOMETER, refer to engine controls and instruments listing, section H

1шт.

72

GAGE ASSY, cluster, refer to engine controls and instruments listing, section H

1шт.

73

SWITCH ASSY, ignition key, refer to engine controls and instruments listing, section H

1шт.

74

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

75

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

76

SWITCH ASSY, engine oil pressure, refer to crankcase and related parts listing, in Eng, 2 parts catalog

1шт.

77

405209R1

CABLE

ASSY, vacuum, Serial Range: switch-ground

1шт.

78

405212R1

HARNESS

CABLE ASSY, horn switch to junction block

1шт.

79

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

80

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

81

405219R1

CABLE

ASSY, Serial Range: horn-ground

1шт.

82

384559R1

CLIP

cable

2шт.

83

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors not equipped w/deluxe fenders, Start Serial: 19959

1шт.

83

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors equipped w/deluxe fenders, Start Serial: 19959

1шт.

84

404395R1

CABLE

ASSY, breakaway connector socket to ground, Start Serial: 19959

1шт.
