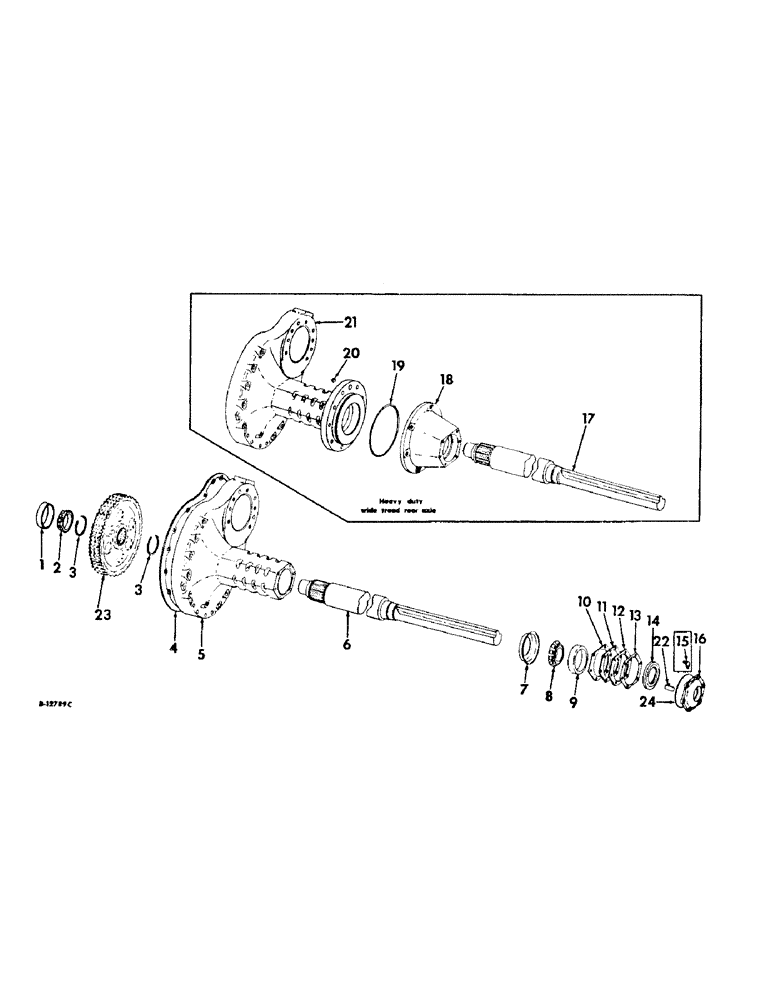

Запчасти Case IH 856 (B-16) - POWER TRAIN, REAR AXLE AND CONNECTIONS, ALL TRACTORS EXCEPT HI-CLEAR (03) - POWER TRAIN

1

ST985

CUP

BEARING, rear axle inner cup

2шт.

2

ST2110

ROLLER BEARING,66.67mm ID x 38.35mm W

BEARING ASSY, rear axle inner cone

2шт.

3

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap

4шт.

4

380225R1

GASKET

rear axle carrier

2шт.

5

380224R5

AXLE CARRIER

CARRIER, rear axle

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 auto. sq-hd drain and filler

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8-11 x 4-1/4 hex-hd cap

8шт.

6

380221R2

SHAFT

AXLE, rear, Farmall tractors

2шт.

6

380222R2

AXLE, rear, International tractors

2шт.

6

391977R2

NO LONGER SERVICED

AXLE, rear, 100 inch, tractors with dual rear wheels or custom or wheatland

2шт.

6

386187R3

SHAFT

AXLE, rear, 118 in. maximum tread, Farmall tractors

2шт.

7

380223R1

DEFLECTOR

RETAINER, rear axle outer brg grease

2шт.

8

ST2040

TAPERED BEARING,3.375" ID x 5.376" OD x 1.2015"

BEARING ASSY, rear axle outer cone

2шт.

9

ST897

BEARING CUP,122.24mm OD x 29.72mm W

BEARING, rear axle outer cup

2шт.

10

380227R2

SHIM

rear axle carrier cap, .007

6шт.

11

380228R2

SHIM

rear axle carrier cap, .012 (or as required)

4шт.

12

380229R2

SHIM

rear axle carrier cap, .030

1шт.

13

380230R2

SHIM

rear axle carrier cap, .004

1шт.

13

385158R2

SHIM

rear axle carrier cap, .003

1шт.

14

378077R91

OIL SEAL

rear axle carrier cap oil

2шт.

15

109457

LUBE NIPPLE,65 Degree, 5/16" NPT x .70" lg, Drive

FITTING, 5/16 65 deg angle drive type lub, rear axle carrier cap

2шт.

16

530033R2

CAP

rear axle carrier

2шт.

445684

PLUG

1/8-27 pipe

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

17

380806R2

AXLE, rear, 114 in. maximum tread, heavy duty

2шт.

18

384249R2

EXTENSION, rear axle carrier

2шт.

19

22423R1

O-RING,0.139" Thk x 9.234" ID, -271, Cl 5, 75 Duro

9-1/4 x 9-1/2 x 1/8, rear axle carrier

2шт.

20

382857R1

PLUG, rear axle carrier

2шт.

21

382856R31

CARRIER

ASSY, rear axle housing

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 automotive sq-hd drain and filler

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

12шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

271571

SEALING RING COLLAR

5/8-11 x 4-1/4 hex-hd cap

8шт.

22

392346R1

BRACKET

rear wheel inner position gage

2шт.

23

GEAR. bull, refer to differential listing this section

1шт.

24

529133R1

RING

rear axle carrier cap sealing

2шт.
