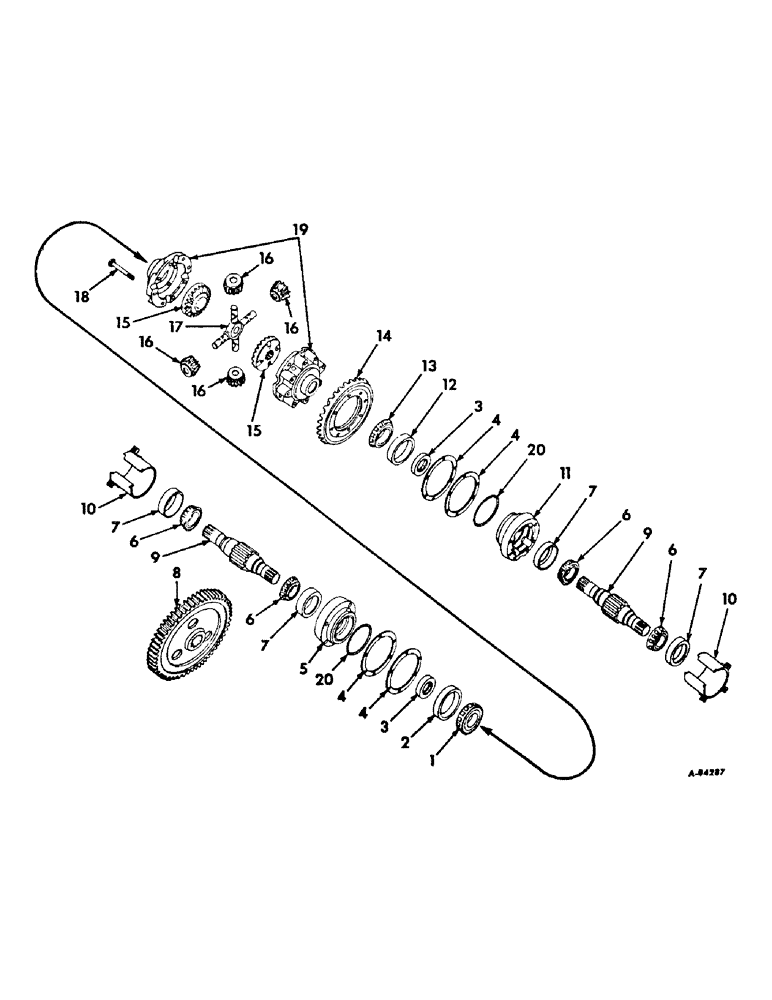

Запчасти Case IH 856 (B-12) - POWER TRAIN, DIFFERENTIAL, FARMALL TRACTORS W/ S/N 10366 & ABOVE, INTL TRACTORS W/ S/N 8014 & ABOVE (03) - POWER TRAIN

1

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

differential roller LH cone

1шт.

2

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential roller LH cup

1шт.

3

380200R91

SEAL

differential roller bearing retainer oil

2шт.

4

380202R1

SHIM

differential roller brg retainer .007

2шт.

4

380203R1

SHIM

differential roller brg retainer .012

4шт.

4

380204R1

SHIM

differential roller brg retainer .030

1шт.

4

380205R1

SHIM

differential roller brg retainer .004

1шт.

4

385155R1

SHIM

differential roller brg retainer .003

1шт.

5

400901R1

RETAINER

differential roller brg LH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING ASSY, bull pinion & brake shaft cone

4шт.

7

13363D

TAPERED BEARING

BEARING, bull pinion and brake shaft cup

4шт.

8

384075R1

GEAR

bull, 73T

2шт.

9

400864R1

SHAFT

bull pinion & brake, 13T

2шт.

9

401276R1

SHAFT

bull pinion & brake, 13T, Farmall hi-clear tractors

2шт.

10

400902R1

SHIELD ASSY, bull pinion brg oil

2шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

w/ext tooth lock washer 10-24 x 7/16 hex-hd mach

2шт.

11

400900R1

RETAINER

differential roller brg RH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

12

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cup

1шт.

13

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

differential roller LH cone

1шт.

14

GEAR, drive bevel, 49T, all tractors except hi-clear, order matched set of bevel gears, 395828R91

1шт.

14

GEAR, drive bevel, 49T, Farmall hi-clear tractors, order matched set of bevel gears, 68529C91

1шт.

15

380190R1

GEAR

differential bevel, 28T

2шт.

16

361061R1

GEAR

PINION, differential bevel, 15T

4шт.

17

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differential case bolt

12шт.

19

380187R91

CASE

ASSY, differential

1шт.

20

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8, differential brg retainer

2шт.

395828R91

SET

BEVEL GEARS, matched set, consists of (1) gear 388916R1 (NSS), (1) shaft 395013R1 (NSS), (1) tag 1084053R1 (NSS)

1шт.

68529C91

GEAR-SET

BEVEL GEARS, matched set, Farmall hi-clear tractors, consists of, (1) gear 380132R1 (NSS), (1) shaft 380160R1 (NSS), (1) tag 1084237R1

1шт.
