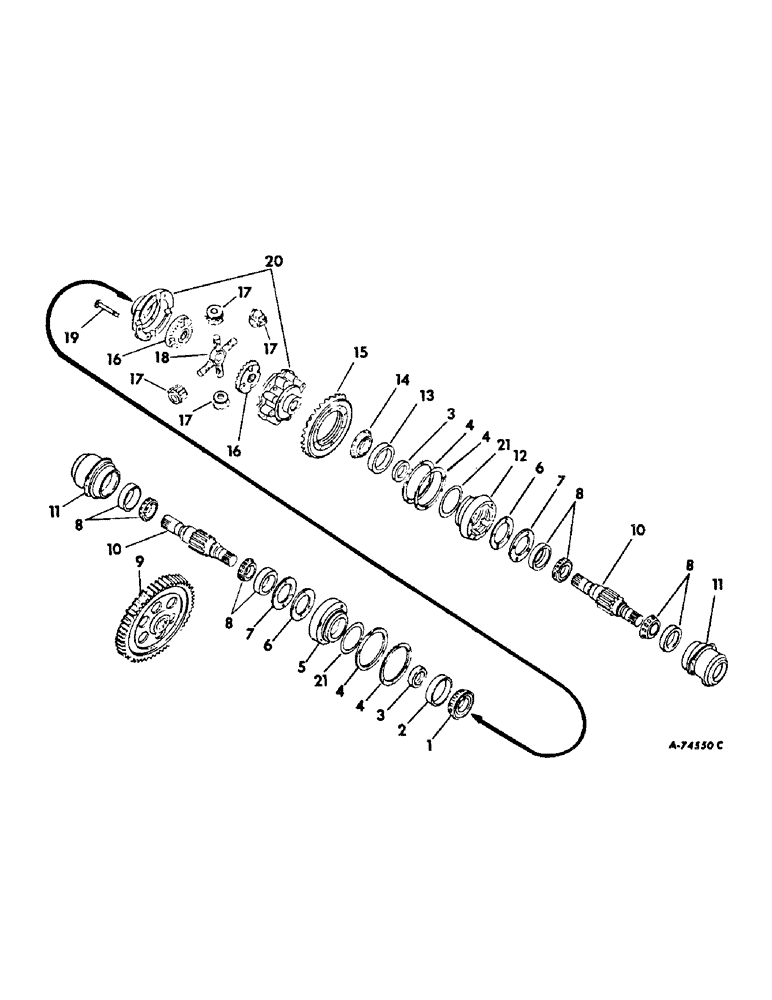

Запчасти Case IH 856 (B-10) - POWER TRAIN, DIFFERENTIAL, FARMALL TRACTORS W/ S/N 10365 & BELOW, INTL TRACTORS W/ S/N 8013 & BELOW (03) - POWER TRAIN

1

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

differential roller LH cone

1шт.

2

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential roller LH cup

1шт.

3

380200R91

SEAL

differential roller bearing retainer oil

2шт.

4

380202R1

SHIM

differential roller brg retainer .007

2шт.

4

380203R1

SHIM

differential roller brg retainer .012

4шт.

4

380204R1

SHIM

differential roller brg retainer .030

1шт.

4

380205R1

SHIM

differential roller brg retainer .004

1шт.

4

385155R1

SHIM

differential roller brg retainer .003

1шт.

5

384086R2

RETAINER, differential roller brg LH

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

6шт.

6

380209R1

SHIM

bull pinion shaft brg retainer (or as required)

2шт.

7

380210R1

RETAINER

bull pinion shaft brg

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

8

ST2138

BEARING ASSY

bull pinion & brake shaft

4шт.

9

384075R1

GEAR

bull, 73T

2шт.

10

393104R1

SHAFT

bull pinion & brake, 13T

2шт.

10

401276R1

SHAFT

bull pinion & brake, 13T, Farmall hi-clear tractors

2шт.

11

380208R1

CAGE, bull pinion shaft brg

2шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

12шт.

12

380199R2

RETAINER, differential roller brg RH

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

6шт.

13

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cup

1шт.

14

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

differential roller LH cone

1шт.

15

GEAR, drive vevel, 49T, all tractors except hi-clear, order matched set of bevel gears, 395828R91

1шт.

15

GEAR, drive bevel, 49T, Farmall hi-clear tractors, order matched set of bevel gears, 68529C91

1шт.

16

380190R1

GEAR

differential bevel, 28T

2шт.

17

361061R1

GEAR

PINION, differential bevel, 15T

4шт.

18

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

19

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differential case bolt

12шт.

20

380187R91

CASE

ASSY, differential

1шт.

21

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8, differential brg retainer

2шт.

395828R91

SET

BEVEL GEARS, matched set, consists of (1) gear 388916R1 (NSS), (1) shaft 395013R1 (NSS), (1) tag 1084053R1 (NSS)

1шт.

68529C91

GEAR-SET

BEVEL GEARS, matched set, Farmall hi-clear tractors, consists of, (1) gear 380132R1 (NSS), (1) shaft 380160R1 (NSS), (1) tag 108437R1 (NSS)

1шт.
