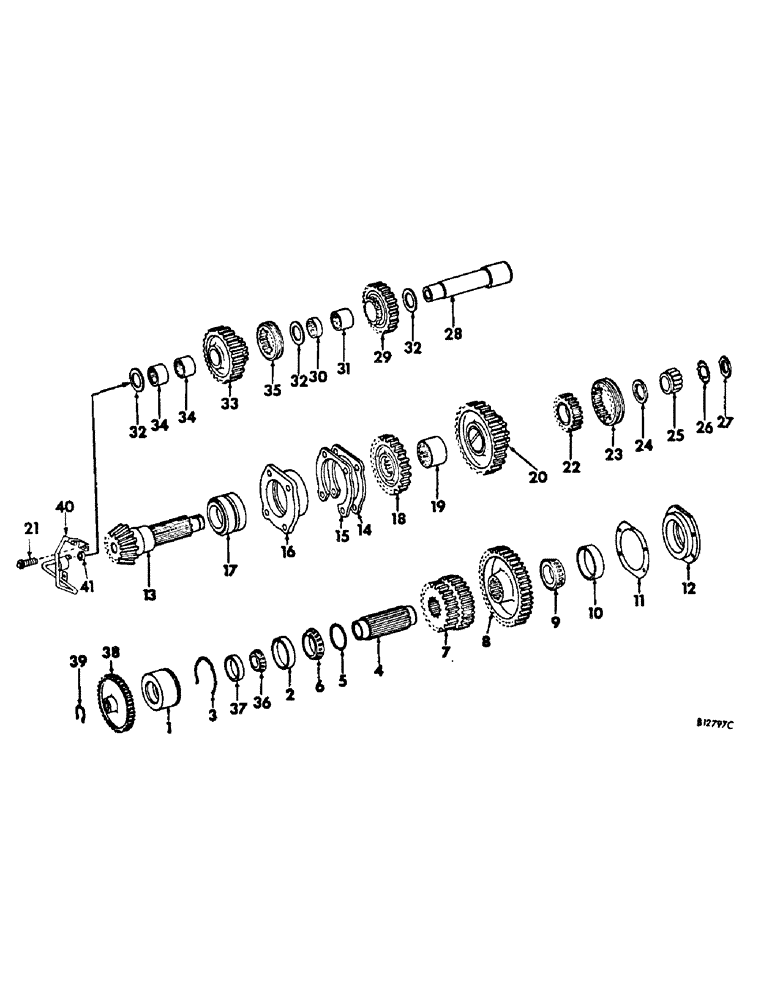

Запчасти Case IH 856 (B-08) - POWER TRAIN, RANGE TRANSMISSION, IN REAR FRAME (03) - POWER TRAIN

1

380274R11

CAGE

ASSY, countershaft rear bearing, Farmall tractors, Serial Range: -27286

1шт.

1

380274R11

CAGE

ASSY, countershaft rear bearing, International tractors, Serial Range: -9492

1шт.

1

528695R1

CAGE

ASSY, countershaft rear bearing, Farmall tractors, Start Serial: 27287

1шт.

1

528695R1

CAGE

ASSY, countershaft rear bearing, International tractors, Start Serial: 9493

1шт.

2

ST970

BEARING SET,88.92mm OD x 16.56mm W

BEARING, countershaft rear cup, Farmall tractors, Serial Range: -27286

1шт.

2

ST970

BEARING SET,88.92mm OD x 16.56mm W

BEARING, countershaft rear cup, International tractors, Serial Range: -9492

1шт.

2

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft rear cup, Farmall tractors, Start Serial: 27287

1шт.

2

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft rear cup, International tractors, Start Serial: 9493

1шт.

3

384340R1

RING, SNAP

RING, brg cage rear retaining

1шт.

4

393159R1

SHAFT

COUNTERSHAFT, Farmall tractors, Serial Range: -27286

1шт.

4

393159R1

SHAFT

COUNTERSHAFT, International tractors, Serial Range: -9492

1шт.

4

528680R2

SHAFT

COUNTERSHAFT, Farmall tractors, Start Serial: 27287

1шт.

4

528680R2

SHAFT

COUNTERSHAFT, International tractors, Start Serial: 9493

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap

1шт.

6

ST2124

BEARING ASSY,51.59mm ID x 22.23mm W

countershaft rear cone, Farmall tractors, Serial Range: -27286

1шт.

6

ST2124

BEARING ASSY,51.59mm ID x 22.23mm W

countershaft rear cone, International tractors, Serial Range: -9492

1шт.

6

625742C91

BEARING

ASSY, countershaft rear cone, Farmall tractors, Start Serial: 27287

1шт.

6

625742C91

BEARING

ASSY, countershaft rear cone, International tractors, Start Serial: 9493

1шт.

7

391883R1

GEAR WHEEL

GEAR, lo drive, 28T & 33T, Farmall tractors, Serial Range: -27286

1шт.

7

391883R1

GEAR WHEEL

GEAR, lo drive, 28T & 33T, International tractors, Serial Range: -9492

1шт.

7

528681R1

GEAR

lo drive, 28T-33T, Farmall tractors, Start Serial: 27287

1шт.

7

528681R1

GEAR

lo drive, 28T-33T, Farmall tractors, Start Serial: 9493

1шт.

8

380161R2

PINION

GEAR, constant mesh, 50T, Farmall tractors, Serial Range: -27286

1шт.

8

380161R2

PINION

GEAR, constant mesh, 50T, International tractors, Serial Range: -9492

1шт.

8

406028R1

GEAR

constant mesh, 50T, Farmall tractors, Start Serial: 27287

1шт.

8

406028R1

GEAR

constant mesh, 50T, International tractors, Start Serial: 9493

1шт.

9

ST2124

BEARING ASSY,51.59mm ID x 22.23mm W

countershaft front cone, Farmall tractors, Serial Range: -27286

1шт.

9

ST2124

BEARING ASSY,51.59mm ID x 22.23mm W

countershaft front cone, International tractors, Serial Range: -9492

1шт.

9

625742C91

BEARING

ASSY, countershaft front cone, Farmall tractors, Start Serial: 27287

1шт.

9

625742C91

BEARING

ASSY, countershaft front cone, International tractors, Start Serial: 9493

1шт.

10

ST970

BEARING SET,88.92mm OD x 16.56mm W

BEARING, countershaft front cup, Farmall tractors, Serial Range: -27286

1шт.

10

ST970

BEARING SET,88.92mm OD x 16.56mm W

BEARING, countershaft front cup, International tractors, Serial Range: -9492

1шт.

10

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft front cup, Farmall tractors, Start Serial: 27287

1шт.

10

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft front cup, International tractors, Start Serial: 9493

1шт.

11

380280R1

SHIM

countershaft bearing, 2 or as required

2шт.

12

393160R1

CAGE, countershaft front bearing, Farmall tractors, Serial Range: -27286

1шт.

12

393160R1

CAGE, countershaft front bearing, International tractors, Serial Range: -9492

1шт.

12

528682R1

CAGE

countershaft front bearing, Farmall tractors, Start Serial: 27287

1шт.

12

528682R1

CAGE

countershaft front bearing, International tractors, Start Serial: 9493

1шт.

NLS

NO LONGER SERVICED

4шт.

13

395828R91

SET

BEVEL GEARS, matched set, consists of (1) gear 388916R1 (NSS), (1) shaft 395013R1 (NSS), (1) tag 1084053R1 (NSS)

1шт.

13

68529C91

GEAR-SET

BEVEL GEARS, matched set, Farmall hi-clear tractors, consists of (1) gear 380132R1 (NSS), (1) shaft 380160R1 (NSS), (1) tag 1084237R1 (NSS)

1шт.

14

380283R2

SHIM

main shaft brg, .004

1шт.

15

380284R2

SHIM

main shaft brg, .007

1шт.

16

380285R1

CAGE

main shaft bearing

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

main shaft brg cage

2шт.

17

ST2127

BEARING ASSY,63.5mm ID x 112.71mm OD x 68.15mm W

BEARING, main shaft rear

1шт.

18

380288R1

GEAR

reverse driven, 35T

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

528683R11

GEAR

ASSY, hi-lo driven, 45T

1шт.

21

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket

2шт.

396323R1

WASHER

17/32 x 7/8 x 16 ga

1шт.

22

393522R1

GEAR

CARRIER, shift collar, Farmall tractors, Serial Range: -27286

1шт.

22

393522R1

GEAR

CARRIER, shift collar, International tractors, Serial Range: -9492

1шт.

22

533927R1

CARRIER

shift collar, Farmall tractors, Start Serial: 27287

1шт.

22

533927R1

CARRIER

shift collar, International tractors, Start Serial: 9493

1шт.

23

393521R1

COLLAR

hi-lo shift

1шт.

24

380294R1

SPACER

main shaft

1шт.

25

391897R91

BEARING ASSY,40mm ID x 77.62mm OD x 30mm W

main shaft front, all tractors except hi-clear

1шт.

25

380295R91

BEARING, ROLLER, CYL,40mm ID x 69.58mm OD x 30.16mm W

main shaft front, hi-clear tractors

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R1

NUT

main shaft

1шт.

28

380296R11

SHAFT

ASSY, reverse idler

1шт.

19954R1

DOWEL,5/16" x 5/8"

PIN, 5/16 x 5/8 dowel

1шт.

29

393523R1

GEAR

reverse idler, 30T

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

32

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

3шт.

33

393525R1

GEAR

reverse drive, 34T

1шт.

34

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, drive gear

2шт.

35

393524R1

COLLAR

foward reverse shift

1шт.

36

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

IPTO driven shaft cup

1шт.

37

ST991

BEARING CUP

BEARING, IPTO driven shaft cup

1шт.

38

380319R1

PINION

GEAR, pump drive, 61T

1шт.

39

384341R1

RING, SNAP

RING, pump drive gear retaining

1шт.

40

65448C1

TUBE

ASSY, pressure lub, replaces 380162R91 & 529561R2, also order ring, 65447C1

1шт.

41

65447C1

RING

lub tube seal

1шт.

372703R5

FLUID, hy-tran, quart can

1шт.

372704R5

FLUID

hy-tran, gallon can

1шт.

372705R5

FLUID

hy-tran, five gallon can

1шт.

407024R5

FLUID, hy-tran, fifteen gallon can

1шт.

68379C91

PACKAGE

ring gear & pinion overhaul

1шт.

Consists of, (1) bearing 391897R91, (1) bearing 528684R91, (1) gear set 528707R92, (1) instructions 1084230R1 (NSS), (1) nut 359082R2, (1) pipe assy 385932R12, (2) retainer 529464R1, (1) ring 65447C1, (4) shim 380283R2, (4) shim 380284R2, (1) spacer 380300R1, (1) tube 65448C1, (1) washer 359081R1

1шт.
