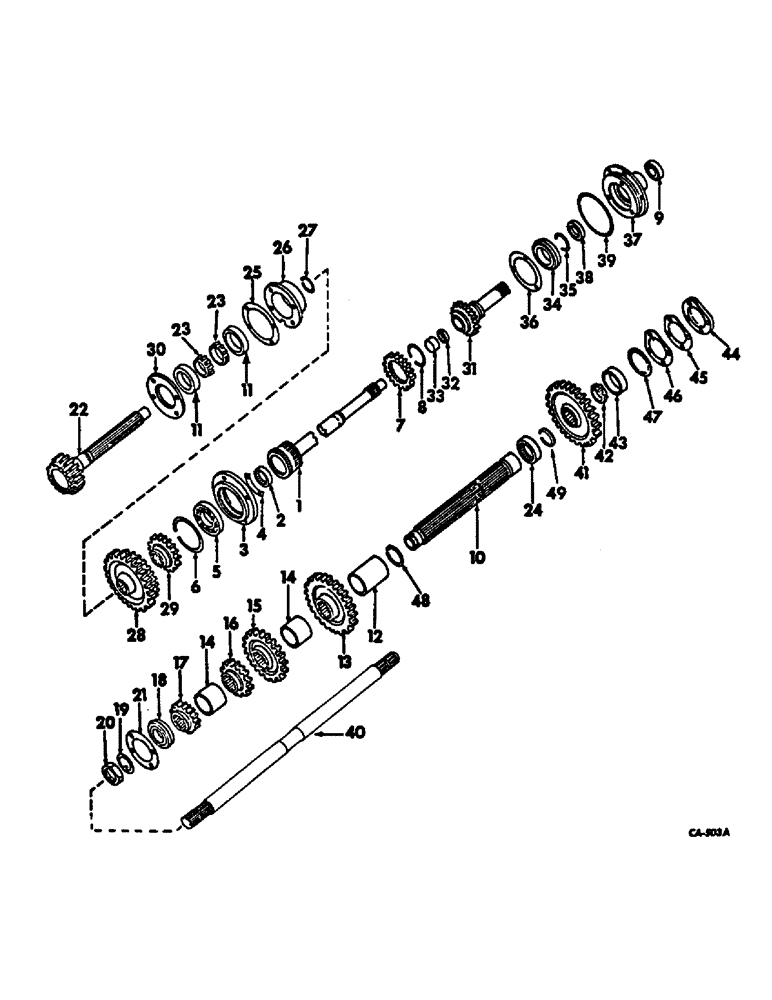

Запчасти Case IH 856 (B-05) - POWER TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (03) - POWER TRAIN

1

380076R3

SHAFT

transmission drive, 26T

1шт.

2

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

main shaft front

1шт.

2

380295R1

BEARING, main shaft front, Farmall tractors with torque amplifier and hi-clear att

1шт.

3

380080R1

CAGE

constant mesh drive gear brg

1шт.

4

380081R1

PLATE

constant mesh drive gear brg cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

5

ST697

BALL BEARING,75 mm ID x 130 mm OD x 22 mm

BEARING, constant mesh drive gear

1шт.

6

392683R1

RING

constant mesh drive brg cage int snap

1шт.

7

381329R2

GEAR

constant mesh drive, 26T, Farmall tractors, Serial Range: -27286

1шт.

7

381329R2

GEAR

constant mesh drive, 26T, International tractors, Serial Range: -9492

1шт.

7

528670R1

GEAR WHEEL

GEAR, constant mesh drive, 26T, Farmall tractors, Start Serial: 27287

1шт.

7

528670R1

GEAR WHEEL

GEAR, constant mesh drive, 26T, International tractors, Start Serial: 9493

1шт.

8

380330R1

COVER

RING, constant mesh drive gear ext snap

1шт.

9

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch shaft pilot

1шт.

9

524598R91GV

BEARING

Value, Ball Bearing

1шт.

10

380082R2

SHAFT

COUNTERSHAFT

1шт.

11

BEARING, main shaft rear cup, all tractors except Farmall hi-clear order bearing assy ST2132

2шт.

11

BEARING, main shaft rear cup, all tractors except Farmall tractors, Serial Range: -27286

2шт.

11

BEARING, main shaft rear cup, all tractors except International tractors, Serial Range: -9492

2шт.

11

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup, all tractors except Farmall hi-clear

2шт.

11

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup, all tractors except Farmall tractors, Start Serial: 27287

2шт.

11

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup, all tractors except International tractors, Start Serial: 9493

2шт.

11

BEARING, main shaft rear cup, Farmall hi-clear tractors, order bearing assy 384169r91

2шт.

12

384091R1

BUSHING

SPACER, constant mesh gear, long, also used for countershaft w/o snap ring groove, for tractors w/torque amplifier

1шт.

13

380086R2

GEAR WHEEL

GEAR, constant mesh, 47T, Farmall tractors, Serial Range: -27286

1шт.

13

380086R2

GEAR WHEEL

GEAR, constant mesh, 47T, International tractors, Serial Range: -9492

1шт.

13

528673R1

GEAR

constant mesh, 47T, Farmall tractors, Start Serial: 27287

1шт.

13

528673R1

GEAR

constant mesh, 47T, International tractors, Start Serial: 9493

1шт.

14

380126R1

BUSHING

SPACER, countershaft gears

2шт.

15

390264R1

GEAR WHEEL

GEAR, 3rd speed driving, 42T, Farmall tractors, Serial Range: -27286

1шт.

15

390264R1

GEAR WHEEL

GEAR, 3rd speed driving, 42T, International tractors, Serial Range: -9492

1шт.

15

528671R1

GEAR

3rd speed driving, 42T, Farmall tractors, Start Serial: 27287

1шт.

15

528671R1

GEAR

3rd speed driving, 42T, International tractors, Start Serial: 9493

1шт.

16

390258R1

PINION

GEAR, 2nd speed driving, 32T, Farmall tractors, Serial Range: -27286

1шт.

16

390258R1

PINION

GEAR, 2nd speed driving, 32T, International tractors, Serial Range: -9492

1шт.

16

528672R1

GEAR

2nd speed driving, 32T, Farmall tractors, Start Serial: 27287

1шт.

16

528672R1

GEAR

2nd speed driving, 32T, International tractors, Start Serial: 9493

1шт.

17

390259R1

PINION

GEAR, 1st speed driving, 27T, Farmall tractors, Serial Range: -27286

1шт.

17

390259R1

PINION

GEAR, 1st speed driving, 27T, International tractors, Serial Range: -9492

1шт.

17

406473R1

GEAR

1st speed driving, 27T, Farmall tractors, Start Serial: 27287

1шт.

17

406473R1

GEAR

1st speed driving, 27T, International tractors, Start Serial: 9493

1шт.

18

ST345A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, countershaft rear

1шт.

19

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

countershaft brg lock nut

1шт.

20

380092R1

NUT

countershaft brg lock

1шт.

21

380093R1

RETAINER

countershaft rear brg

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

391827R2

SHAFT

main, 20 and 23 teeth, all tractors except hi-clear w/o torque amplifier, Farmall tractors, Serial Range: -27286

1шт.

22

391827R2

SHAFT

main, 20 and 23 teeth, all tractors except hi-clear w/o torque amplifier, International tractors, Serial Range: -9492

1шт.

22

529282R1

SHAFT

main, 20 and 23 teeth, all tractors except hi-clear w/o torque amplifier, Farmall tractors, Start Serial: 27287

1шт.

22

529282R1

SHAFT

main, 20 and 23 teeth, all tractors except hi-clear w/o torque amplifier, International tractors, Start Serial: 9493

1шт.

22

392235R2

SHAFT

main, 20 and 23 teeth, all tractors except hi-clear with torque amplifier, Farmall tractors, Serial Range: -27286

1шт.

22

392235R2

SHAFT

main, 20 and 23 teeth, all tractors except hi-clear with torque amplifier, International tractors, Serial Range: -9492

1шт.

22

529434R1

PINION

SHAFT, main, 20 and 23 teeth, all tractors except hi-clear with torque amplifier, Farmall tractors, Start Serial: 27287

1шт.

22

529434R1

PINION

SHAFT, main, 20 and 23 teeth, all tractors except hi-clear with torque amplifier, International tractors, Start Serial: 9493

1шт.

22

380094R2

SHAFT

main, 20 and 23 teeth, Farmall hi-clear tractors without torque amplifier

1шт.

22

382350R2

SHAFT

main, 20 and 23 teeth, Farmall hi-clear tractors with torque amplifier

1шт.

23

ST2132

BEARING ASSY,55mm ID x 90mm OD x 23mm W

main shaft rear w/cup, Farmall tractors, Serial Range: -27286

2шт.

23

ST2132

BEARING ASSY,55mm ID x 90mm OD x 23mm W

main shaft rear w/cup, International tractors, Serial Range: -9492

2шт.

23

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, main shaft rear cone, Farmall tractors, Start Serial: 27287

2шт.

23

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, main shaft rear cone, International tractors, Start Serial: 9493

2шт.

23

384169R91

BEARING ASSY,55.58mm ID x 96.84mm OD x 26.26mm W

ASSY, main shaft rear w/cup, Farmall hi-clear tractors

2шт.

24

384114R91

NEEDLE BEARING

countershaft front

1шт.

25

380095R1

SHIM

main shaft rear bearing

1шт.

26

380096R2

CAGE

main shaft rear bearing, Farmall tractors, Serial Range: -27286

1шт.

26

380096R2

CAGE

main shaft rear bearing, International tractors, Serial Range: -9492

1шт.

26

529283R2

CAGE

main shaft rear bearing, Farmall tractors, Start Serial: 27287

1шт.

26

529283R2

CAGE

main shaft rear bearing, International tractors, Start Serial: 9493

1шт.

26

384089R2

CAGE

main shaft rear bearing, hi-clear tractors

1шт.

27

380097R1

RING

main shaft rear bearing snap

1шт.

28

380124R1

GEAR

1st & 2nd speed sliding, 41 & 46T, Farmall tractors, Serial Range: -27286

1шт.

28

380124R1

GEAR

1st & 2nd speed sliding, 41 & 46T, International tractors, Serial Range: -9492

1шт.

28

528674R1

GEAR

1st & 2nd speed sliding,, 41 & 46T, Farmall tractors, Start Serial: 27287

1шт.

28

528674R1

GEAR

1st & 2nd speed sliding,, 41 & 46T, International tractors, Start Serial: 9493

1шт.

29

380125R2

GEAR WHEEL

GEAR, 3rd & 4th speed sliding, 31T, Farmall tractors, Serial Range: -27286

1шт.

29

528675R1

GEAR

3rd & 4th speed sliding, 31T, International tractors, Serial Range: -9492

1шт.

30

380098R2

RETAINER

main shaft rear brg

1шт.

NLS

NO LONGER SERVICED

4шт.

31

380261R1

SHAFT

independent PTO drive, 28T, Farmall tractors, Serial Range: -27286

1шт.

31

380261R1

SHAFT

independent PTO drive, 28T, International tractors, Serial Range: -9492

1шт.

31

528676R1

SHAFT

independent PTO drive, 28T, Farmall tractors, Start Serial: 27287

1шт.

31

528676R1

SHAFT

independent PTO drive, 28T, International tractors, Start Serial: 9493

1шт.

32

535208R91

SEAL

independent PTO drive shaft oil

1шт.

33

384185R1

BUSHING,38.18mm ID x 44.58mm OD x 12.7mm L

PTO drive shaft, tractors w/o torque amplifier

1шт.

34

ST343

BEARING

PTO drive shaft

1шт.

35

384337R1

RING

PTO shaft brg snap

1шт.

36

384184R1

RETAINER

PTO shaft brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylock

3шт.

37

384079R2

CAGE

PTO drive shaft brg

1шт.

37

384147R2

CAGE, PTO drive shaft brg, tractors withover-center clutch

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

5шт.

37

380101R2

CAGE

PTO drive shaft brg, tractors with torque amplifier

1шт.

37

384135R2

CAGE, PTO drive shaft brg, tractors with torque amplifier and over-center clutch

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

38

535209R91

OIL SEAL

PTO shaft brg cage oil

1шт.

39

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 x 1/8, PTO shaft bearing cage sealing, for cages, 384079R2 and 384147R2

1шт.

39

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

5 x 5-1/4 x 1/8, PTO shaft bearing cage sealing, for cages, 380101R2 and 384135R2

1шт.

40

65357C1

SHAFT

ASSY, PTO driven, replaces 380103R21 by also ordering snap ring, 359141R1

1шт.

41

391828R1

GEAR WHEEL

GEAR, PTO driven, 58T, Farmall tractors, Serial Range: -27286

1шт.

41

391828R1

GEAR WHEEL

GEAR, PTO driven, 58T, International tractors, Serial Range: -9492

1шт.

41

528677R1

GEAR

PTO driven, 58T, Farmall tractors, Start Serial: 27287

1шт.

41

528677R1

GEAR

PTO driven, 58T, International tractors, Start Serial: 9493

1шт.

42

G15215

ROLLER BEARING

BEARING ASSY, PTO driven shaft front cone

1шт.

43

619387R1

BEARING CUP

BEARING, PTO driven shaft front roller cup

1шт.

44

380107R1

RETAINER

PTO driven shaft brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

4шт.

45

384382R1

SHIM

PTO shaft brg retainer, HV

1шт.

46

384106R1

SHIM

PTO driven shaft brg retainer

3шт.

47

384103R1

SEAL RETAINER

SEAL, PTO front brg retainer

1шт.

48

357035R1

RING

constant mesh gear snap, for tractors w/o torque amplifier

1шт.

49

359141R1

RING, SNAP

RING, PTO driven shaft snap, used only w/shaft, 65357C1

1шт.

372703R5

FLUID, hy-tran, quart can

1шт.

372704R5

FLUID

hy-tran, gallon can

1шт.

372705R5

FLUID

hy-tran, five gallon can

1шт.

407024R5

FLUID, hy-tran, fifteen gallon can

1шт.
