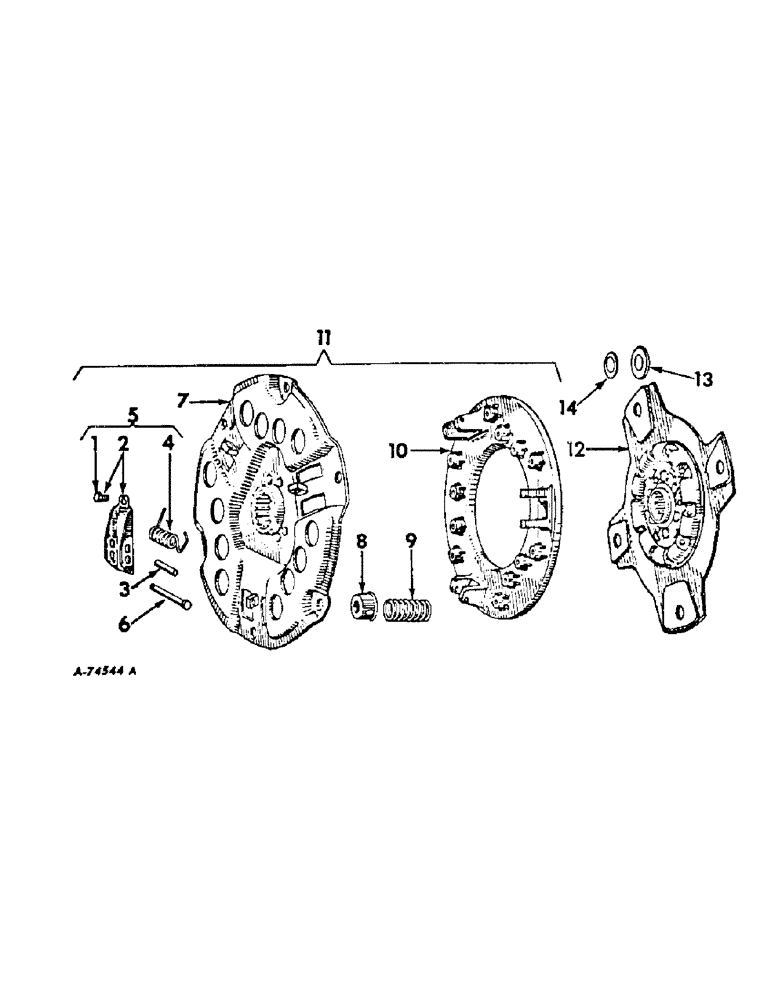

Запчасти Case IH 856 (B-02) - POWER TRAIN, STANDARD CLUTCH (03) - POWER TRAIN

389768A1

REMAN-CLUTCH KIT

Remanufactured, Clutch Kit - Includes 12", 17 Spline pressure plate 405300R92R, 12" disc assy 384395R94R, 69789C91 throwout bearing, 524598R91 pilot bearing

1шт.

389768A1C

CORE-CLUTCH KIT

Return Number

1шт.

1

146806R1

SCREW,Hex, 5/16" - 24 x 15/32"

SCREW, clutch lever adjusting

3шт.

2

375571R91

LEVER

LEVER ASSEMBLY, clutch

3шт.

3

143264R1

PIVOT PIN

PIN, lever pivot

3шт.

4

375572R1

SPRING

SPRING, clutch lever

3шт.

5

375570R91

PACKAGE

PACKAGE, clutch lever assembly

1шт.

6

149487R1

PIN

PIN, clutch lever

3шт.

107762

WASHER,3/32" x 5/8"

3шт.

95-11034

WASHER,1/4"

WASHER, 11/32 x 11/16 x .065

3шт.

7

375569R92

COVER ASSY

PLATE ASSEMBLY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure spring

12шт.

9

349934C1

SPRING

SPRING, clutch pressure

12шт.

10

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE, clutch pressure

1шт.

11

405300R91

PLATE

PLATE ASSY, clutch pressure

1шт.

11

405300R92R

REMAN-CLUTCH PLATE

PLATE ASSY, clutch pressure

1шт.

11

405300R92C

CORE-CLUTCH PLATE

Return Number

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

6шт.

12

384395R92

DISC

DISC ASSY, clutch driven, Dyna life

1шт.

12

384395R94R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 11Tooth hub, 1 13/64 in. OD of splines, 4 paddle

1шт.

12

384395R94C

CORE-CLUTCH DISC

Return Part Number

1шт.

13

311292C1

WASHER

WASHER, retainer

12шт.

14

311291C1

INSULATING WASHER

WASHER, insulating

12шт.
