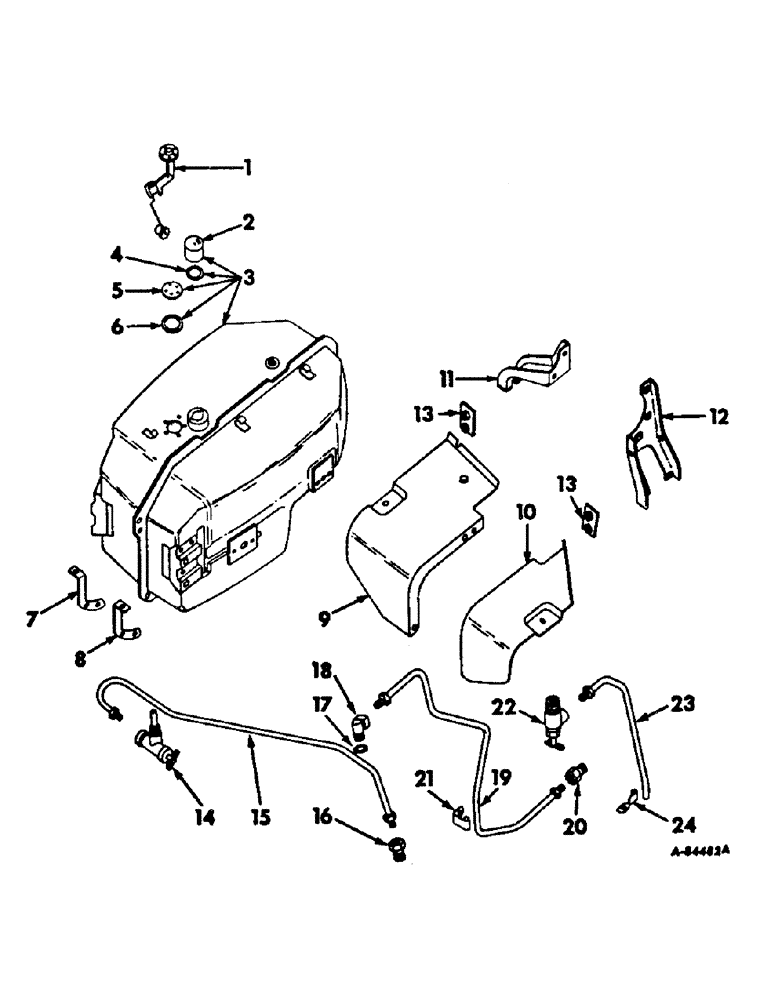

Запчасти Case IH 856 (E-05) - FUEL SYSTEM, FUEL TANK SUPPORTS AND PIPING, DIESEL ENGINE TRACTORS, EXCEPT FARMALL CUSTOM (02) - FUEL SYSTEM

1

378427R91

GAUGE

SENDING UNIT ASSY, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

2

361910R91

PLUG

CAP W/GASKET, fuel tank filler

1шт.

3

381379R93

TANK

ASSY, fuel composed of (2) bracket 531310R11, (1) cap assy 361910R91, (1) cover 369155R1, (1) gasket 369154R1, (4) nut 389117R91, (3) plug 445686, (2) screw 179814, (5) screw 372627R91, (1) tank assy 381393R93

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage, used with .543-.548 square holes

4шт.

389117R91

NUT

5/16-18 floating cage, used with .582-.587 square holes

4шт.

445686

PLUG

3/8-18 auto. sq-hd stl pipe

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

4

23977DB

GASKET

fuel tank filler cap

1шт.

5

369155R1

COVER, fuel gauge sending unit opening, tractors w/o electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Cover mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

6

369154R1

GASKET

sending unit or cover

1шт.

7

384196R1

BRACKET, fuel tank rear support, LH

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

8

384197R1

BRACKET, fuel tank rear support, RH

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

NLS

NO LONGER SERVICED

3/8-16 x 3/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

386117R31

SHIELD ASSY, lower LH heat

1шт.

Also order tab assembly, 386119R11 if tractor is already not so equipped.

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex-washer-hd cap

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

386118R21

SHIELD ASSY, lower RH heat

1шт.

Also order tab assembly, 386119R11 if tractor is already not so equipped.

1шт.

369222R91

SCREW, 5/16-18 x 5/8 hex-washer-hd cap

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

11

382365R11

SUPPORT ASSY, fuel tank LH front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

12

382367R11

SUPPORT ASSY, fuel tank RH front

1шт.

13

386119R11

TAB ASSY, lower heat shield

2шт.

14

390069R91

SHUT-OFF VALVE

VALVE, fuel tank shut-off

1шт.

15

PIPE ASSY, fuel tank to fuel filter, use 22 inches of 3/8 OD copper tubing from 50 ft roll marked 995063R1 & two nuts, 137399

1шт.

16

442323

CONNECTOR, ELEC

CONNECTOR, 1/4-18 brs inverted flared tube hv-service tank to filter end

1шт.

17

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

3/8 x 1/8 reducing pipe

1шт.

18

225810

ELBOW UNION

ELBOW, 7/16-24 90 deg inverted flared tube

1шт.

19

PIPE ASSY, fuel return, use 44 inches of 1/4 OD copper tubing from 50 ft roll marked 995061R1 & two nuts, 137397

1шт.

20

137405

CONNECTOR, ELEC

CONNECTOR, 1/8-27 brs inverted flared tube

1шт.

21

383186R2

CLIP, fuel return pipe

1шт.

Q5035

WASHER

17/32 x 1 x .060

1шт.

22

390076R91

VALVE

fuel tank drain

1шт.

23

390075R11

PIPE ASSY, fuel tank drain, includes nut, 137397

1шт.

24

370740R1

CLAMP

CLIP, fuel tank water drain

1шт.
