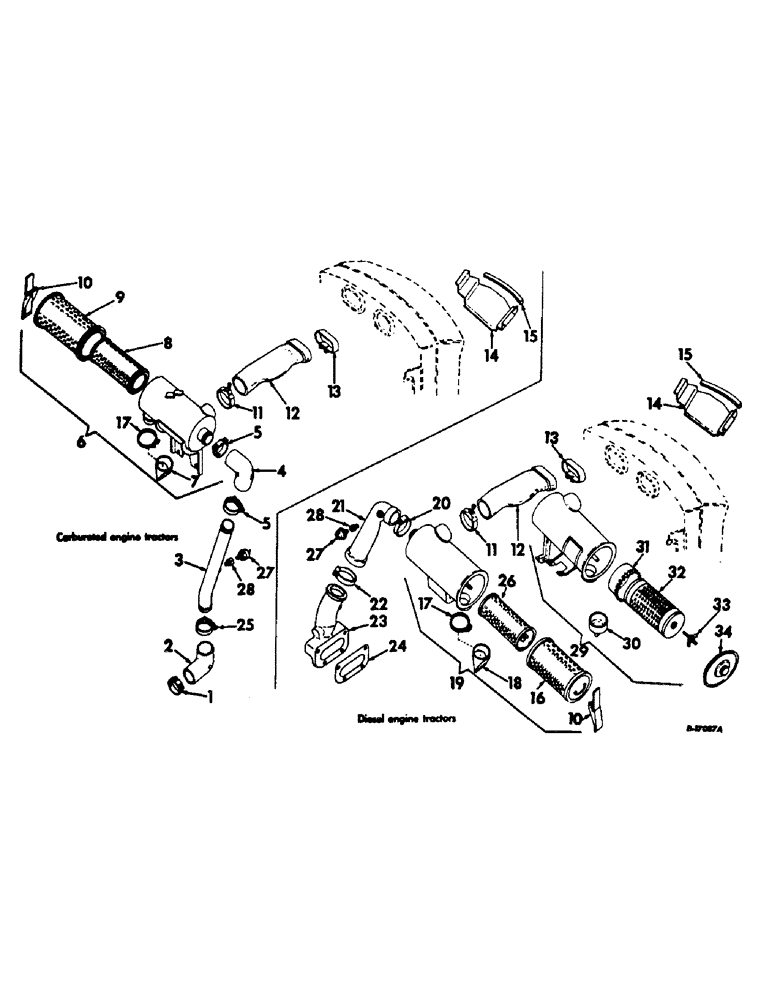

Запчасти Case IH 856 (E-02) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS (02) - FUEL SYSTEM

1

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner pipe hose

1шт.

2

382400R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID, SAE 20R4, Class SC

Air Cleaner Pipe Lower 2.25" ID, 2.50" ID, SAE 20R4, Class SC

1шт.

3

389910R21

PIPE, air, Serial Range: cleaner-carburetor

1шт.

4

306190R1

HOSE ASSY.

HOSE, air cleaner pipe upper

1шт.

5

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, upper hose

2шт.

6

398518R92

CLEANER ASSY, air

1шт.

7

401265R1

LOCK VALVE

VALVE, dust unloader

1шт.

8

401267R1

AIR CLEANER

ELEMENT ASSY, safety

1шт.

9

401269R1

AIR CLEANER

ELEMENT ASSY

1шт.

10

401266R1

FASTENER

CLAMP ASSY

1шт.

11

357870R91

CLAMP

intake hose rear

1шт.

12

380035R2

INTAKE AIR HOSE,2.16" ID, 3.00" ID x 11.20"

Air Cleaner 2.16" ID, 3.00" ID x 11.20"

1шт.

13

380600R91

FASTENER

CLAMP, intake hose front

1шт.

14

396519R1

BAFFLE

pre-cleaner

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

15

528936R1

GASKET

SEAL, air baffle, replaces 389600R1

1шт.

16

401270R1

AIR CLEANER,Round, 4.37" ID x 6.62" OD x 15.12" L

Filter Element, Primary

1шт.

17

305406C91

CLAMP

ASSY, unloader valve

1шт.

18

401265R1

LOCK VALVE

VALVE, dust unloader

1шт.

19

398519R91

CLEANER

ASSY, air

1шт.

20

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, outlet hose to air cleaner

1шт.

21

389912R3

INTAKE AIR HOSE

Air Cleaner Outlet

1шт.

22

397258R1

HOSE CLAMP,#64, 3.56/4.50 Type F Worm, W/liner

CLAMP, outlet hose to elbow

1шт.

23

380045R2

ELBOW, air intake manifold

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 automotive Hex Socket

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

24

327755R1

GASKET

air intake manifold elbow

1шт.

25

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, lower hose upper

1шт.

26

401268R1

AIR CLEANER

ELEMENT ASSY, safety

1шт.

27

389682R91

SWITCH

electric air cleaner vacuum

1шт.

28

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

29

381423R93

CLEANER ASSY, air, Farmall diesel custom tractors

1шт.

30

383734R2

VALVE

dust unloader

1шт.

31

385861R1

SLEEVE

element

1шт.

32

383711R93

ELEMENT

ASSY

1шт.

33

385925R91

NUT

AND GASKET ASSY

1шт.

34

383733R91

COVER

ASSY

1шт.
