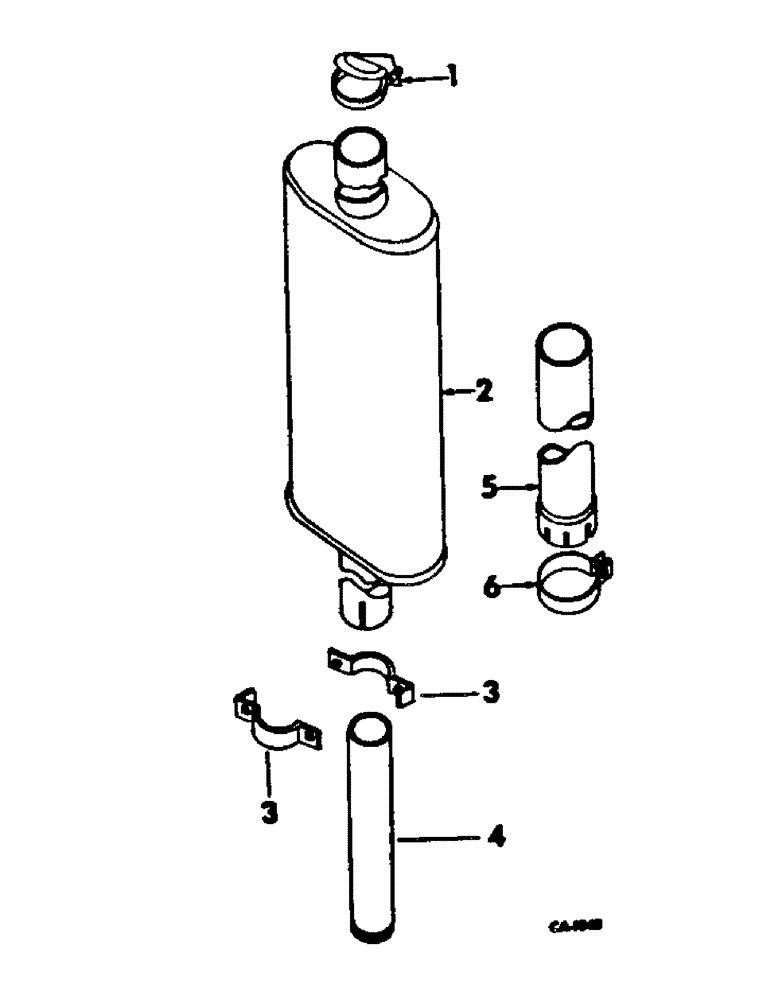

Запчасти Case IH 856 (D-02) - DIESEL ENGINES, EXHAUST SYSTEM (01) - ENGINE

1

321575R91

CAP

ASSY, exhaust, optional with 402308R1

1шт.

1

402308R1

CAP

ASSY, exhaust, optional with 321575R91

1шт.

1

999579R91

CYLINDER END CAP

CAP ASSY, exhaust, tractors with cab or protective frame, used only w/pipe, 402983R1, optional with 402678R1

1шт.

1

402678R1

CAP

ASSY, exhaust, tractors with cab or protective frame, used only w/pipe, 402983R1, optional with 999579R91

1шт.

2

530578R3

MUFFLER

ASSY, exhaust

1шт.

3

402310R1

FASTENER

CLAMP, exhaust muffler

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-3/8 short sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

383974R2

TUBE,17.8" Length

PIPE, exhaust

1шт.

5

402983R1

EXTENSION

PIPE, muffler extension, tractors with cab or protective frame, Farmall tractors, order pipe, 527703R1, cap, 321575R91 and clamp, 527704R1, Serial Range: -26055

1шт.

5

402983R1

EXTENSION

PIPE, muffler extension, tractors with cab or protective frame, International tractors, order pipe, 527703R1, cap, 321575R91 and clamp, 527704R1, Serial Range: -9462

1шт.

5

527703R1

EXTENSION

PIPE, muffler extension, tractors with cab or protective frame

1шт.

6

527704R1

CLAMP

muffler extension pipe, tractors with cab or protective frame

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22524R1

SCREW, 3/8-16 x 1-1/2 CDP hex-hd cap

1шт.

103382

WASHER, 3/8 C-Z reg lock

1шт.
