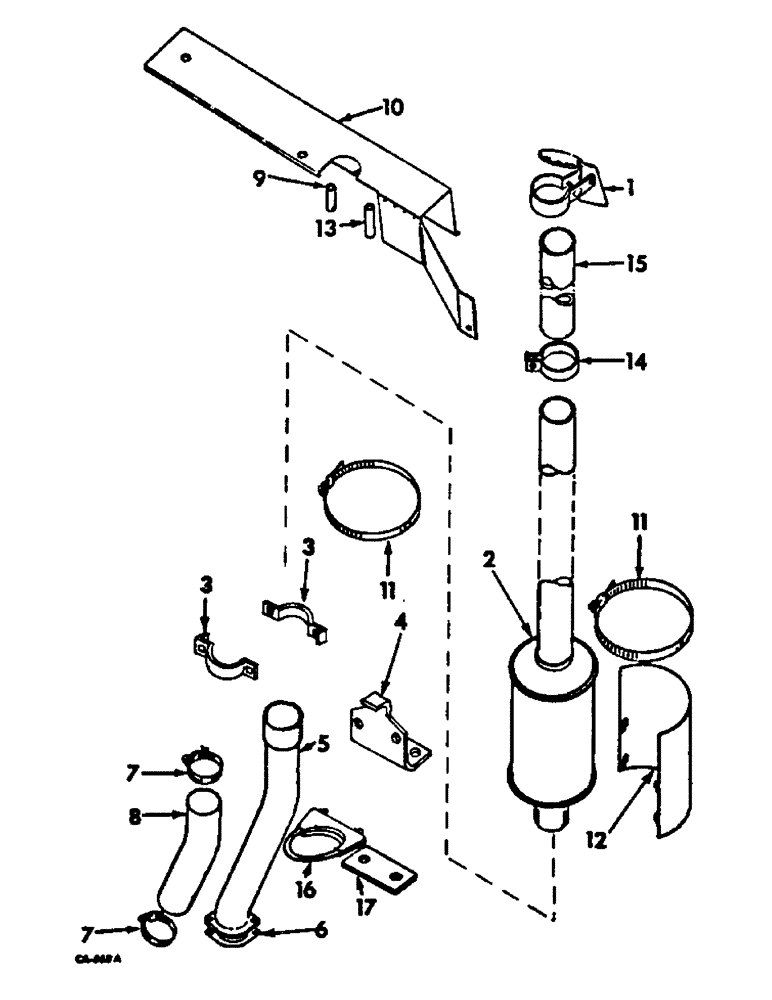

Запчасти Case IH 856 (C-03) - CARBURETED ENGINES, EXHAUST SYSTEM, LP GAS ENGINE TRACTORS (01) - ENGINE

1

321575R91

CAP

ASSY, exhaust, optional with 402308R1

1шт.

1

402308R1

CAP

ASSY, exhaust, optional with 321575R91

1шт.

1

999579R91

CYLINDER END CAP

CAP ASSY, exhaust, tractors with cab or protective frame, used only w/pipe, 402983R1, optional with 402678R1

1шт.

1

402678R1

CAP

ASSY, exhaust, tractors with cab or protective frame, used only w/pipe, 402983R1, optional with 999579R91

1шт.

2

398511R1

MUFFLER

exhaust

1шт.

2

398511R1GV

MUFFLER

Value, Muffler

1шт.

3

402310R1

FASTENER

CLAMP, exhaust muffler

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-3/8 short sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

397369R1

SUPPORT, exhaust pipe

1шт.

5

381404R21

PIPE ASSY, exhaust

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

6

383977R2

GASKET

exhaust pipe

2шт.

7

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLAMP, asbestos

2шт.

8

387857R1

SLEEVE, asbestos

1шт.

9

600373R1

SPACER

heat shield rear

1шт.

10

387852R12

SHIELD ASSY, exhaust manifold heat

1шт.

102635

NUT,3/8"-16, G5

3шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

5шт.

11

402312R1

CLAMP

muffler shield

2шт.

12

387855R11

SHIELD ASSY, heat

1шт.

13

S3780

SPACER,3/8" Pipe x 1 3/4"

Heat shield front 3/8" Pipe x 1 3/4"

1шт.

14

527704R1

CLAMP

muffler extension pipe, tractors with cab or protective frame

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22524R1

SCREW, 3/8-16 x 1-1/2 CDP hex-hd cap

1шт.

103382

WASHER, 3/8 C-Z reg lock

1шт.

15

402983R1

EXTENSION

PIPE, muffler extension, tractors with cab or protective frame, Farmall tractors, order pipe, 527703R1, cap 321575R91 and clamp, 527704R1, Serial Range: -26055

1шт.

15

402983R1

EXTENSION

PIPE, muffler extension, tractors with cab or protective frame, International tractors, order pipe, 527703R1, cap 321575R91 and clamp, 527704R1, Serial Range: -9462

1шт.

15

527703R1

EXTENSION

PIPE, muffler extension, tractors with cab or protective frame

1шт.

16

170571R91

CLAMP

ASSY, exhaust pipe

1шт.

17

397368R1

BAR, exhaust pipe support

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW W/WASHER, 5/16-18 x 3/4 C-Z hex-hd cap

2шт.
