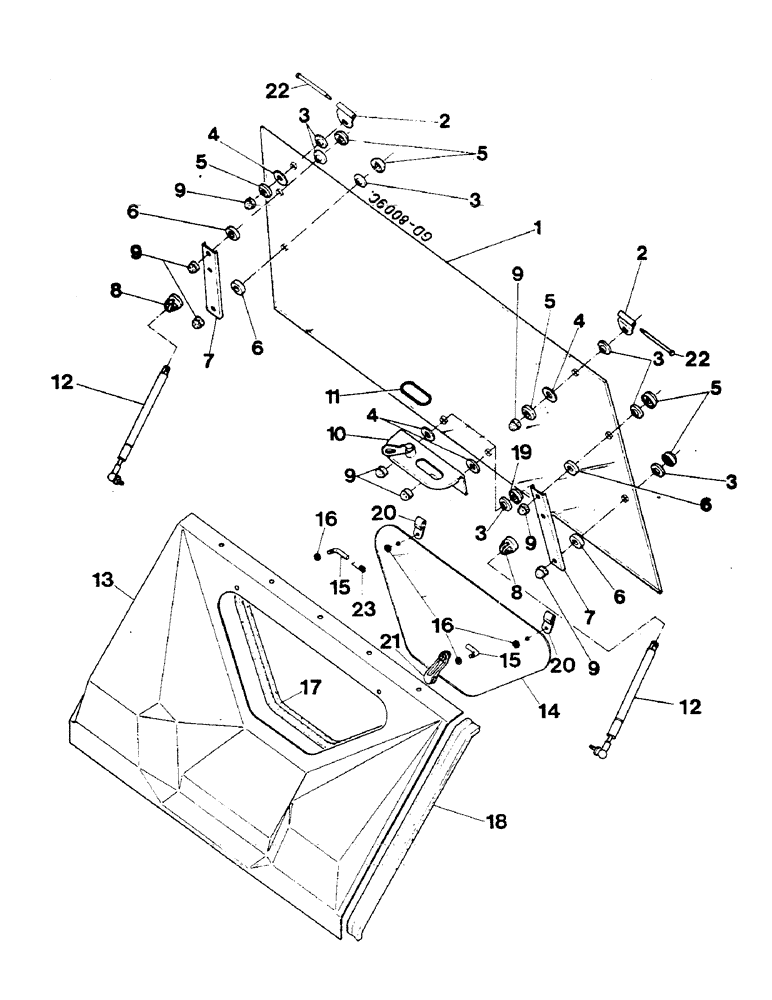

Запчасти Case IH 844S (13-52) - CAB, REAR WINDOW (05) - SUPERSTRUCTURE

1

3221542R1

GLASS

1шт.

1

3221510R1

GLASS, - WITH 2-11

1шт.

2

3224459R1

HINGE

HALF

2шт.

934878R1

CARRIAGE BOLT,Square Neck, M8 x 30mm, Class 4.6

2шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

3221578R1

BELLEVILLE WASHER

2шт.

3

3221543R1

SPACER,10.2mm ID x 36mm OD x 10mm L

SEAL

8шт.

4

3221544R1

RUBBER WASHER,8.5mm ID x 39mm OD x 2mm Thk

SEAL

6шт.

5

3221545R1

WASHER

6шт.

6

3221546R1

WASHER

4шт.

7

3221547R1

CHANNEL

"U"

2шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

934879R1

CARRIAGE BOLT,Square Neck, M8 x 40mm, Class 4.9

4шт.

934286R1

THIN NUT,M8 x 1.25, Thin

4шт.

8

3221548R1

BEARING HOUSING

2шт.

9

3221592R1

CAP

8шт.

10

3221549R1

HANDLE, - WITH 11

1шт.

934878R1

CARRIAGE BOLT,Square Neck, M8 x 30mm, Class 4.6

2шт.

934286R1

THIN NUT,M8 x 1.25, Thin

2шт.

934657R1

RING,M110, Ext

WASHER

6шт.

11

3223868R1

PROTECTION STRIP

BULK LENGTH 200 M - AS REQUIRED

1шт.

12

3221531R1

GAS STRUT,500mm Extended, 300mm Compressed

PNEUMATIC

2шт.

905268R1

NUT,M8 x 1.25, Cl 8

2шт.

905158R1

PIN,M8 x 28

HEADED

2шт.

3221573R1

FASTENER

2шт.

13

3226215R2

COVER

REAR

1шт.

13

3225117R92

COVER ASSY

REAR - WITH 14-18

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

905265R1

NUT,M6 x 1, Cl 8

AS REQUIRED

1шт.

14

3224315R1

GLASS

1шт.

14

3224581R1

GLASS, - WITH 20, 21

1шт.

15

3232275R1

RETAINER

2шт.

905265R1

NUT,M6 x 1, Cl 8

2шт.

832-10406

NUT,M6 x 1, Cl 8

2шт.

16

934850R1

WASHER

AS REQUIRED

1шт.

17

3221574R1

SEAL

SEAL, RUBBER, BULK LENGTH 50 M - AS REQUIRED

1шт.

18

3223747R1

SEAL

SEAL, RUBBER, BULK LENGTH 50 M - AS REQUIRED

1шт.

19

3226083R1

WASHER

2шт.

20

3224612R1

HINGE

HALF

2шт.

905252R1

CARRIAGE BOLT,Sq Nk, M6 x 20mm, Cl 4.6

BOLT, M6 X 20 MM

2шт.

905255R1

NUT,M6 x 1

M6

2шт.

3224614R1

WASHER,7mm ID x 20mm OD x 2.5mm Thk

2шт.

21

3224613R1

SUPPORT

STRUT, VENTING WINDOW

1шт.

934876R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

905255R1

NUT,M6 x 1

M6

1шт.

3224614R1

WASHER,7mm ID x 20mm OD x 2.5mm Thk

1шт.

3221725R1

CAP

1шт.

22

3223698R1

BOLT

PIN

2шт.

934286R1

THIN NUT,M8 x 1.25, Thin

2шт.

934675R1

WASHER,M8 x 16 x 1.6

2шт.

23

3232276R1

SPRING

LH

1шт.

23

3232277R1

SPRING

RH

1шт.
