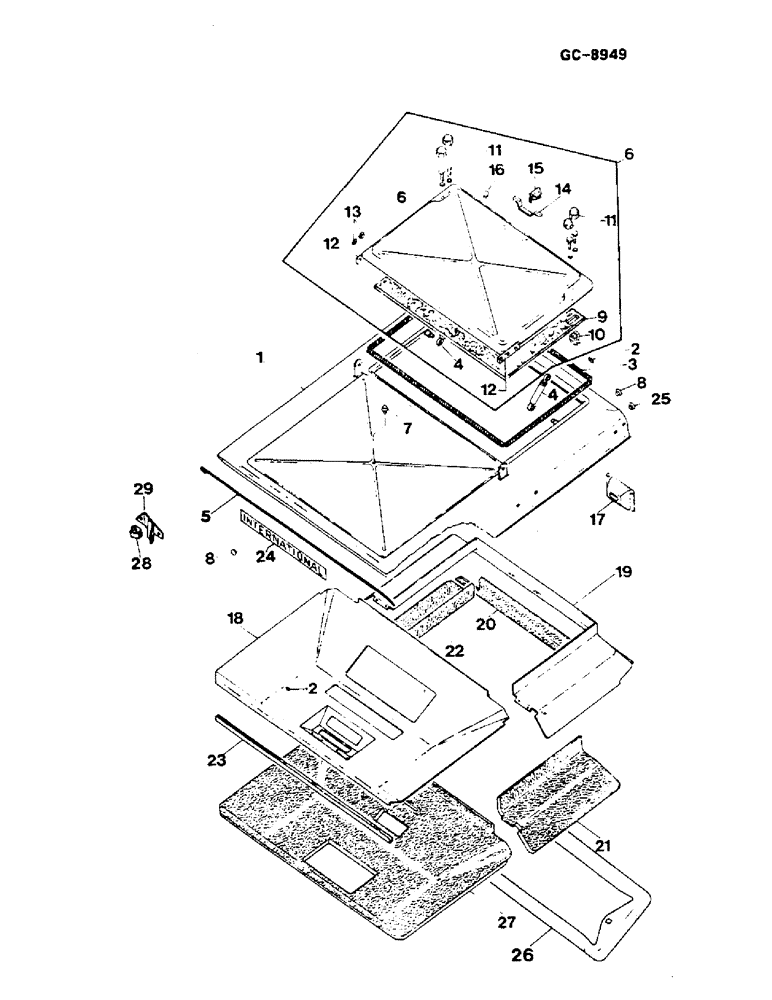

Запчасти Case IH 844S (13-45) - CAB, ROOF FRAME (05) - SUPERSTRUCTURE

1

3226071R1

FRAME, ROOF

1шт.

1

3221504R92

FRAME

ROOF - WITH 2-6 AND 3221577R1

1шт.

1

3229451R91

FRAME, ROOF - WITH 2-8, 25 AND 3221577R1 - FOR SCANDINAVIA -

1шт.

3223697R1

WASHER

SHEET, SLIDING

4шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

3221581R1

SPRING WASHER

10 MM

2шт.

993963R1

WASHER

8шт.

2

3221575R1

GROMMET

2шт.

3

3221574R1

SEAL

SEAL, BULK LENGTH 50 M - AS REQUIRED

1шт.

4

3221572R1

GAS STRUT

CYLINDER, PNEUMATIC - GASFEDER -

2шт.

3221573R1

FASTENER

2шт.

30404R1

LOCK PIN,M6 x 20, Slotted

2шт.

5

STRAP, PROTECTION 1450 MM - ORDER - 3216370R1 - AS REQUIRED

1шт.

6

3225991R91

COVER

1шт.

6

3226072R91

COVER

- WITH 9-16 - FOR SCANDINAVIA -

1шт.

3221573R1

FASTENER

2шт.

905171R1

HEADED PIN,M8 x 14

HEADED

2шт.

7

3226069R1

BUMPER

RUBBER

1шт.

8

3225157R1

CAP

- FOR SCANDINAVIA -

2шт.

9

COVER, 560 X 890 MM

1шт.

10

3223791R1

SUPPORT

2шт.

905265R1

NUT,M6 x 1, Cl 8

4шт.

934850R1

WASHER

4шт.

11

3221725R1

CAP

4шт.

12

3226073R1

PLATE

2шт.

905212R1

SCREW,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

4шт.

905179R1

NUT,M4 x .7, Cl 8

4шт.

905177R1

WASHER,M4.3 x 12 x 1

4шт.

13

3224298R1

CAP

SPARE PART

4шт.

14

3145327R1

HANDLE

1шт.

905163R1

SCREW,Round Squre Neck, M5 x 30mm, Class 4.6

BOLT, M5 X 30 MM

2шт.

905425R1

NUT

M5

2шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

2шт.

15

3226084R1

LATCH, PEDALS

SPARE PART LOCK, - FOR SCANDINAVIA -

1шт.

905178R1

SCREW,Round Square Neck, M5 x 25mm, Class 4.6

BOLT, M5 X 25 MM

1шт.

905425R1

NUT

M5

1шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

1шт.

16

3225160R1

CYLINDER END CAP

1шт.

17

3226985R1

SHEET

SUPPORT, - FOR SCANDINAVIA -

1шт.

934941R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 19

2шт.

18

3225962R1

ROOF LINING

SPARE PART PANEL, WITH INSULATOR - ITEM 27 -

1шт.

18

3225374R1

PANEL, ROOF, WITH INSULATOR ITEM 27 - - FOR SCANDINAVIA -

1шт.

19

3223879R1

ROOF LINING

SHEET, COVERING

1шт.

3224433R1

SHEET

2шт.

934850R1

WASHER

6шт.

905170R1

SCREW,Pan Cross Recess, M6 x 20mm, Cl 4.8

6шт.

3223701R1

RIVET

3 X 10 MM

4шт.

19

3225915R1

COVER, ROOF FRAME, - WITH 19-22

1шт.

20

3225918R1

PADDING

INSULATOR, 350 X 1195 MM

1шт.

21

3225916R1

PADDING

SPARE PART INSULATOR, LH 430 X 700 MM

1шт.

22

3225917R1

PADDING

SPARE PART INSULATOR, RH 430 X 700 MM

1шт.

23

3223746R1

SEAL

SEAL, BULK LENGTH 50 M - AS REQUIRED

1шт.

24

1091408R1

PRODUCT GRAPHIC

- INTERNATIONAL -

2шт.

25

3225158R1

FASTENER

CAP, - FOR SCANDINAVIA -

1шт.

26

3225907R1

SHROUD

SWITCH BOX

1шт.

905366R1

LOCK SCREW,Cross Pan Hd, M6 x 12, 8.8

2шт.

27

INSULATOR, ROOF

1шт.

28

3221527R1

SPRING

RETAINER

2шт.

934872R1

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

905267R1

NUT,M5 x .8, Cl 8

2шт.

29

3221529R1

BRACKET

RH

1шт.

29

3221528R1

BRACKET

LH

1шт.

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

3221581R1

SPRING WASHER

10 MM

2шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

934675R1

WASHER,M8 x 16 x 1.6

2шт.
