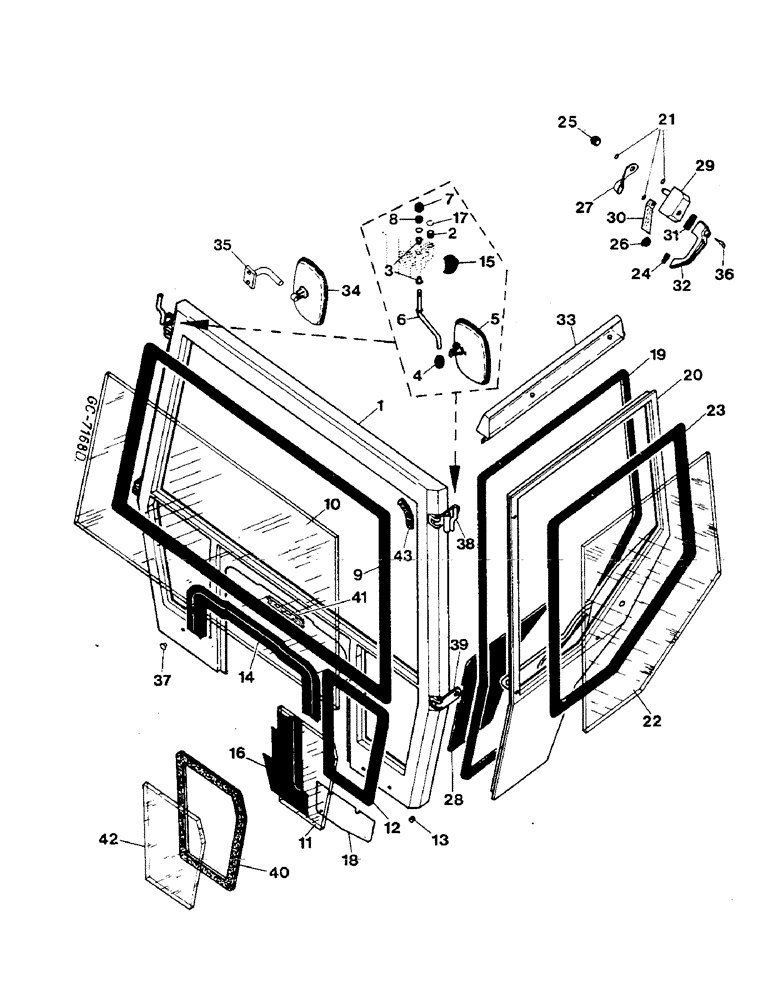

Запчасти Case IH 844S (13-38) - CAB, FRONT FRAME, DOORS (05) - SUPERSTRUCTURE

1

3230809R91

FRAME

FRONT, - WITH 2, 3, 9-14, 17, 38, 39 AND 3223754R1 / 3223756R1 / 3223818R1 / 3224827R1 -

1шт.

1

3226353R92

FRAME, FRONT, - FOR SCANDINAVIA - - WITH 2, 3, 9-14, 17, 38, 39 AND 3226355R1 / 3226356R1 / 3226357R1 3226358R1 / 3226359R1 / 3223756R1 / 3223818R1 -

1шт.

1

3232750R91

SPARE PART

FRAME, FRONT - FOR CABS W/TILTABLE WINDSCREEN - WITH ITEMS 2, 3, 9, 13, 14, 40 - 42 AND 3223698R1/3223756R1/3223818R1/3224845R1/3226355R1/3226356R1/3226357R1/3226358R1/3232756R91/3232760R1/3232761R1/3232762R1/3232763R1 -

1шт.

2

3223753R1

BUSHING

2шт.

3

3223752R1

SUPPORT

BUSHING

4шт.

4

3221521R1

CAP

2шт.

5

3221522R1

MIRROR

2шт.

6

3221523R1

HOLDER

MIRROR

2шт.

905266R1

NUT,M10 x 1.5, Cl 8

2шт.

7

3221520R1

CAP

2шт.

8

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

2шт.

9

3223751R1

FRAME

FRONT GLASS

1шт.

9

3223757R1

FRAME

FRONT GLASS - FOR CAB W/TILTING WINDSCREEN -

1шт.

10

GLASS, FRONT - SEE CAB WINDSCREEN

1шт.

11

3223749R1

GLASS

FRONT LOWER

1шт.

12

3223748R1

FRAME

FRONT GLASS, LOWER

2шт.

13

3223612R1

GROMMET

2шт.

14

3230810R1

SEAL SHEET

1шт.

14

3232049R1

SEAL

FOR SCANDINAVIA -

1шт.

15

3221532R1

CAP

4шт.

16

3232046R1

PLATE

SPARE PART RUBBER LH

1шт.

16

3232047R1

PLATE

SPARE PART RUBBER, RH

1шт.

832-10406

NUT,M6 x 1, Cl 8

1шт.

934850R1

WASHER

AS REQUIRED

1шт.

17

934451R1

CIRCLIP,M9

2шт.

18

3221723R1

COVER

LH

1шт.

18

3224243R1

COVER, RH

1шт.

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

3221578R1

BELLEVILLE WASHER

LOCK 8 MM

4шт.

43362

NUT,M8 x 1.25, Cl 10

4шт.

934673R1

WASHER,M8.4 x 25 x 2

4шт.

19

3224241R1

DOOR SEAL

SEAL, RUBBER LH

1шт.

19

3224242R1

DOOR SEAL

SEAL, RUBBER, RH

1шт.

20

3223757R1

FRAME

DOOR, LH

1шт.

20

3221506R1

DOOR, LH WITH 21-32, 36

1шт.

933968R1

NUT,M12 x 1.25, Cl 6

2шт.

934195R1

NUT

M12

2шт.

3223099R1

WASHER

2шт.

20

3223758R1

DOOR

RH

1шт.

20

3221507R1

DOOR, RH WITH 21-32

1шт.

933968R1

NUT,M12 x 1.25, Cl 6

2шт.

934195R1

NUT

M12

2шт.

3223099R1

WASHER

2шт.

21

934948R1

WASHER,M6

AS REQUIRED

1шт.

22

3223761R1

GLASS

DOOR

2шт.

23

3223759R1

FRAME

DOOR GLASS, LH

1шт.

23

3223760R1

FRAME

DOOR GLASS, RH

1шт.

24

3223770R1

PLASTIC PLATE

2шт.

25

3221725R1

CAP

2шт.

26

3223767R1

PLUG

CAP

2шт.

27

3223762R91

HANDLE

DOOR LOCK, INNER, LH

1шт.

27

3223763R91

GRIP

HANDLE, DOOR LOCK, INNER, RH

1шт.

3234425R1

KNOB

2шт.

905255R1

NUT,M6 x 1

M6

2шт.

28

3229260R1

MAT

COVER, DOOR PANEL, LH

1шт.

28

3229259R1

COVER

DOOR PANEL, RH

1шт.

29

3223764R1

FIXING STRIP

LOCK, LH

1шт.

29

3223765R1

LOCK

RH

1шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

5шт.

905152R1

SCREW,M6 x 4.80mm

BOLT, M6 X 12 MM

2шт.

30

3223773R1

COVER

DOOR LOCK, LH

1шт.

30

3223774R1

COVER

DOOR LOCK, RH

1шт.

31

3223766R1

PLASTIC PLATE

2шт.

32

3229218R1

HANDLE

DOOR LOCK, OUTER, LH

1шт.

32

3223769R1

HANDLE

DOOR LOCK, OUTER, RH

1шт.

33

3221525R1

COVER

DOOR, LH

1шт.

33

3221526R1

COVER

DOOR, RH

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

934997R1

NUT,Crown, M6, Cl6

1шт.

934850R1

WASHER

AS REQUIRED

1шт.

34

3224516R1

REAR VIEW MIRROR

- FOR SCANDINAVIA -

1шт.

35

3225119R1

HOLDER, MIRROR - FOR SCANDINAVIA -

1шт.

3225053R1

SCREW

BOLT, M6 X 16 MM

2шт.

36

3229219R1

KEY

1шт.

37

3225157R1

CAP

- FOR SCANDINAVIA -

1шт.

38

3225703R1

HINGE

LH

1шт.

38

3225704R1

HINGE

RH

1шт.

39

3225701R1

HINGE

LH

1шт.

39

3225702R1

HINGE

RH

1шт.

40

3232758R1

SEAL

FRAME, FRONT GLASS, LOWER, LH - FOR CABS W/TILTABLE WINDSCREEN -

1шт.

40

3232759R1

SEAL

FRAME, FRONT GLASS, LOWER, RH - FOR CABS W/TILTABLE WINDSCREEN -

1шт.

41

3232299R1

STRAP

STRIP, PROTECTION - FOR CABS W/TILTING WINDSCREEN -

1шт.

41

3230861R1

STRIP, PROTECTION

1шт.

42

3232755R1

GLASS

FRONT, LOWER - FOR CABS W/TILTING WINDSCREEN -

2шт.

43

STRIP, PROTECTION 150 MM - ORDER - 3216370R1 - AS REQUIRED

1шт.
