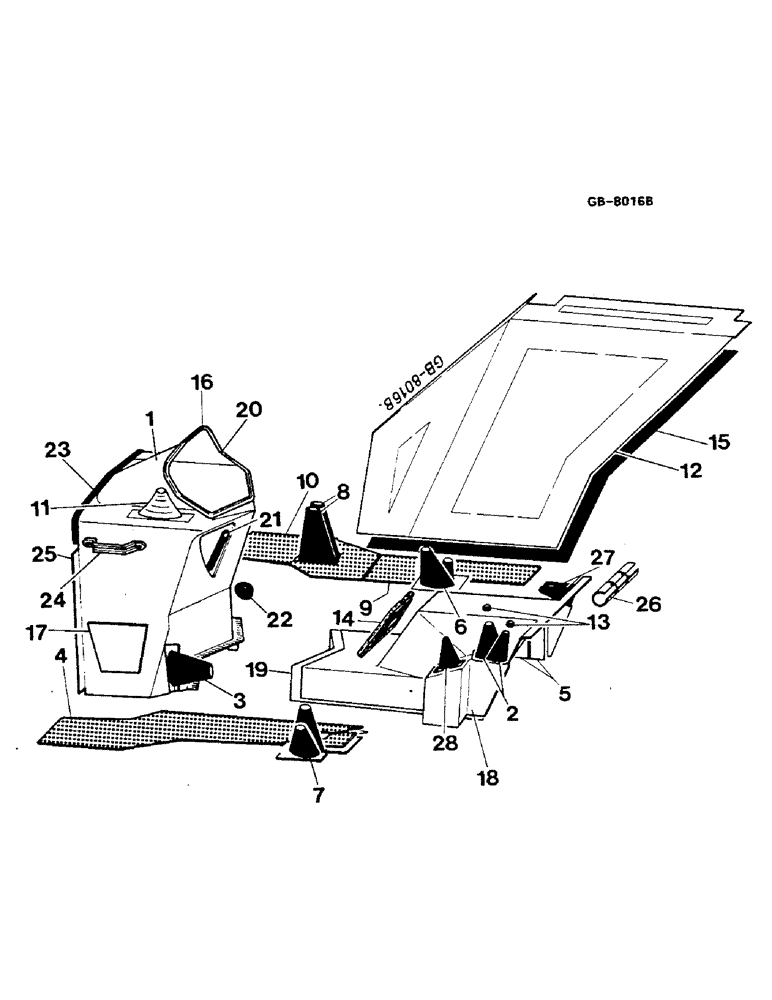

Запчасти Case IH 844S (13-32) - OPERATORS COMPARTMENT COVERINGFOR TRACTORS WITH CAB, FOR SCANDINAVIA (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
3225124R91
COVER
INSTRUMENT PANEL SUPPORT WITH ITEMS 3, 11, 16, 17, 20 THRU 25 -
1шт.
2
3229349R2
BOOT
1шт.
3
3225723R1
SEAL SHEET
BOOT, CLUTCH PEDAL
1шт.
3223701R1
RIVET
3 X 10 MM
7шт.
3223846R1
WASHER
SPRING
7шт.
4
3226213R2
FLOOR MAT
LH
1шт.
5
3226308R1
COVER, FOR SEGMENT - 3145246R92 -
1шт.
6
3225101R1
BOOT, DIFFERENTIAL LOCK, PTO.
1шт.
7
3225981R1
BOOT
FOUR-WHEEL DRIVE LEVER AND HAND BRAKE LEVER -
1шт.
8
3223712R2
BOOT
BRAKE PEDALS
1шт.
3223701R1
RIVET
3 X 10 MM
9шт.
9
3230672R1
MAT
FLOOR, RH REAR
1шт.
10
3230673R1
MAT
FLOOR RH FRONT
1шт.
11
3225728R1
BOOT
CLUTCH LEVER
1шт.
12
3225969R1
COWL
COVER, LH FENDER
1шт.
12
3225970R1
COVER
RH FENDER
1шт.
13
3223612R1
GROMMET
2шт.
14
3226306R1
COVER
1шт.
3229352R1
BOLT, M4 X 16 MM
2шт.
905179R1
NUT,M4 x .7, Cl 8
2шт.
30289R1
WASHER,M4
2шт.
3226307R1
HOLDER
1шт.
3217585R1
RIVET
3.2 X 10 MM
2шт.
3225252R1
INSULATOR
SHEET
1шт.
15
3221828R1
COVER, FENDER, REAR INSIDE
2шт.
16
3225723R1
SEAL SHEET
1шт.
17
3225252R1
INSULATOR
SHEET
1шт.
18
3225116R94
PROTECTIVE COVER
TRANSMISSION HOUSING, - WITH ITEMS 2, 5, 14, 19, 27, 28
1шт.
3223701R1
RIVET
3 X 10 MM - AS REQUIRED
1шт.
3223846R1
WASHER
SPRING - AS REQUIRED
1шт.
19
3224312R1
COVER, TRANSMISSION HOUSING, INNER
1шт.
20
3224307R1
SEAL
1шт.
21
3224301R1
COVER
SPARE PART THROTTLE
1шт.
22
3225733R1
COVER
ACCELERATOR PEDAL
1шт.
23
3225729R1
SEAL
SPARE PART
1шт.
24
3145327R1
HANDLE
1шт.
934966R1
SCREW,M6 x 20mm
BOLT, M6 X 20 MM
4шт.
905265R1
NUT,M6 x 1, Cl 8
4шт.
934948R1
WASHER,M6
4шт.
25
3225209R1
ANGLE, LH
1шт.
25
3225208R1
ANGLE, RH
1шт.
931105R1
HEX SOC SCREW,M8 x 25mm, Cl 8.8
BOLT, M6 X 20 MM
4шт.
934850R1
WASHER
4шт.
26
3225105R1
COVER, CONTROL SHAFT BEARING
1шт.
3225106R1
STRAP, CABLE
2шт.
27
3229590R1
BOOT
1шт.
28
3229349R2
BOOT
1шт.
3226309R1
SHEET, INSULATING
1шт.
Выбрано товаров: 48
