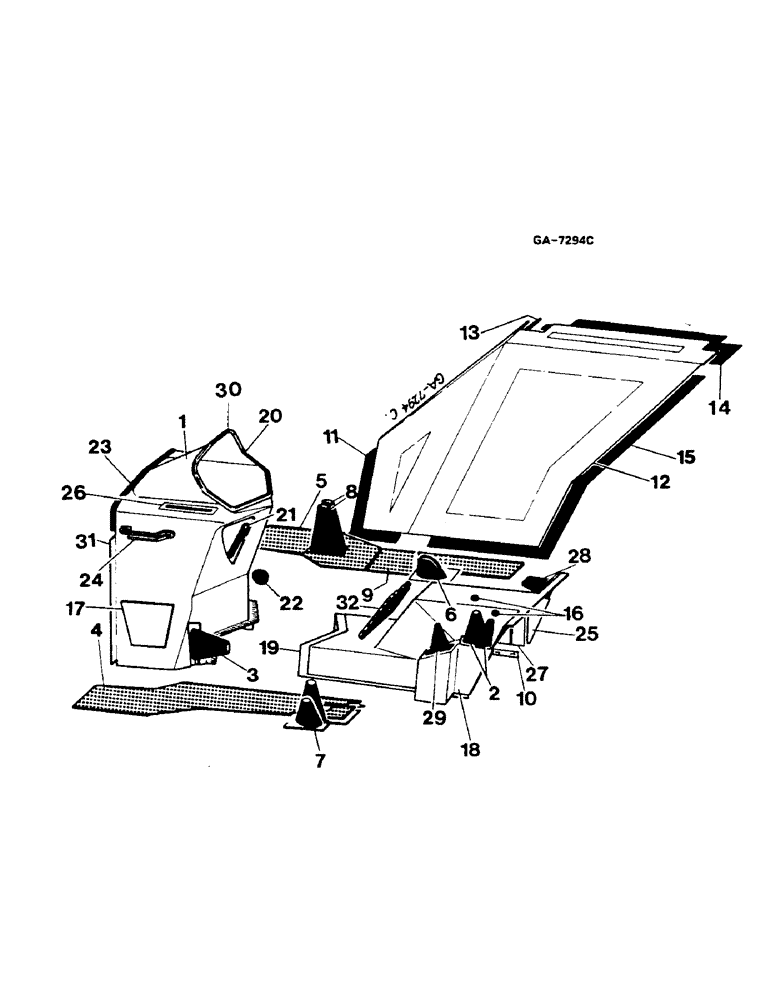

Запчасти Case IH 844S (13-28) - OPERATORS COMPARTMENT COVERING, FOR TRACTORS W/CAB, FRTIZMEIER (05) - SUPERSTRUCTURE

1

3221826R91

COVER

INSTRUMENT PANEL SUPPORT - WITH ITEMS 3, 17, 20 THRU 24,26, 30, 31 -

1шт.

2

3229328R2

BOOT

1шт.

3

3224303R1

BOOT

SPARE PART CLUTCH PEDAL

1шт.

3223701R1

RIVET

3 X 10 MM

7шт.

3223846R1

WASHER

SPRING

7шт.

4

3226213R2

FLOOR MAT

LH

1шт.

5

3230673R1

MAT

FLOOR, RH FRONT

1шт.

6

3223708R1

BOOT

COVER, DIFFERENTIAL LOCK

1шт.

7

3225981R1

BOOT

FOUR-WHEEL DRIVE LEVER

1шт.

8

3223712R2

BOOT

BRAKE PEDALS

1шт.

3223701R1

RIVET

3 X 10 MM

9шт.

9

3230672R1

MAT

FLOOR, RH REAR

1шт.

10

3229329R1

BAR

1шт.

3221721R1

HOUSING

RIVET, 3 X 12 M

3шт.

11

3221814R1

COVER

LH FENDER, INSIDE

1шт.

11

3221815R1

COVER

SPARE PART RH FENDER, INSIDE

1шт.

12

3224969R1

COVER, LH FENDER

1шт.

12

3225970R1

COVER

RH FENDER

1шт.

13

3221816R1

COVER

SPARE PART LH FENDER, UPPER PART FRONT

1шт.

13

3221817R1

COVER

RH FENDER, UPPER PART, FRONT

1шт.

14

3221818R1

COVER

LH FENDER, UPPER PART

1шт.

14

3221819R1

COVER

RH FENDER, UPPER PART

1шт.

15

3221828R1

COVER, LH FENDER, REAR INSIDE

1шт.

15

3221829R1

MAT

COVER, RH FENDER, REAR INSIDE

1шт.

16

3223612R1

GROMMET

2шт.

17

3225252R1

INSULATOR

SHEET

1шт.

18

3221827R95

COVER

TRANSMISSION HOUSING - INCLUDES 3221595R1 - WITH ITEMS 2, 10, 19, 25,27 THRU 29, 32 -

1шт.

3223701R1

RIVET

3 X 10 MM

38шт.

3223846R1

WASHER

SPRING

38шт.

2230888R1

ANGLE

1шт.

19

COVER, TRANSMISSION HOUSING, INNER - ORDER 3221827R95 -

1шт.

20

3224307R1

SEAL

1шт.

21

3224301R1

COVER

SPARE PART THROTTLE

1шт.

22

3225733R1

COVER

ACCELERATOR PEDAL

1шт.

23

3223780R1

PACKAGE

SEAL, BULK 50 M LENGTH

1шт.

24

3145327R1

HANDLE

1шт.

934966R1

SCREW,M6 x 20mm

BOLT, M6 X 20 MM

4шт.

905265R1

NUT,M6 x 1, Cl 8

4шт.

934948R1

WASHER,M6

4шт.

25

3224313R1

BRUSH, COMMUTATOR

BRUSH

1шт.

3223701R1

RIVET

3 X 10 MM

3шт.

26

3224306R1

BRUSH, COMMUTATOR

BRUSH 39 DEG. - AS REQUIRED

1шт.

26

3224305R1

BRUSH, COMMUTATOR

BRUSH 45 DEG. - AS REQUIRED

1шт.

3223701R1

RIVET

3 X 10 MM

12шт.

27

3224309R1

COVER

CONTROL SHAFT BEARING

1шт.

28

3229786R1

BOOT

1шт.

29

3229328R1

BOOT

1шт.

30

3225723R1

SEAL SHEET

1шт.

31

3223837R1

ANGLE

LH

1шт.

31

3223836R1

ANGLE

RH

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

934850R1

WASHER

4шт.

32

3226306R1

COVER

1шт.

3229352R1

BOLT, M4 X 16 MM

2шт.

905179R1

NUT,M4 x .7, Cl 8

2шт.

30289R1

WASHER,M4

2шт.

3226307R1

HOLDER

1шт.

3217585R1

RIVET

3.2 X 10 MM

2шт.

3225252R1

INSULATOR

SHEET

1шт.
