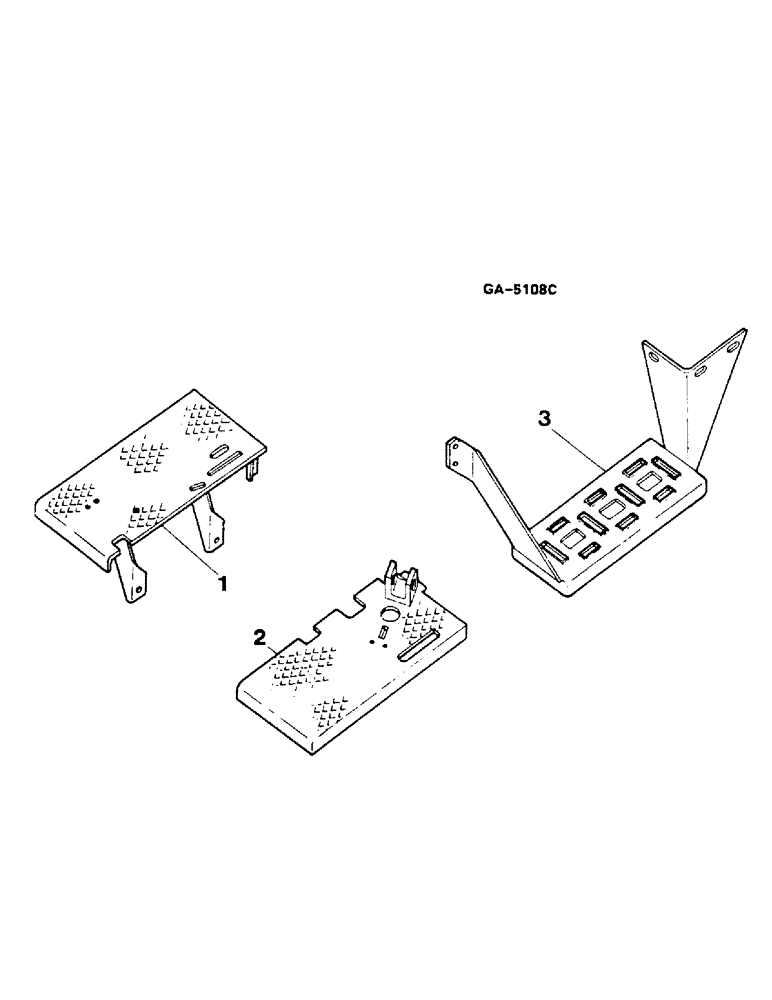

Запчасти Case IH 844S (13-08) - PLATFORM (05) - SUPERSTRUCTURE

1

3145671R93

PLATFORM

RH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

2

3223602R93

PLATFORM

LH

1шт.

930395R1

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8, Full Thd

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

3

3145634R91

STEP

LADDER

1шт.

3

3145635R91

STEP

LADDER - FOR FOUR-WHEEL DRIVE -

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

611346R1

WASHER

3шт.
