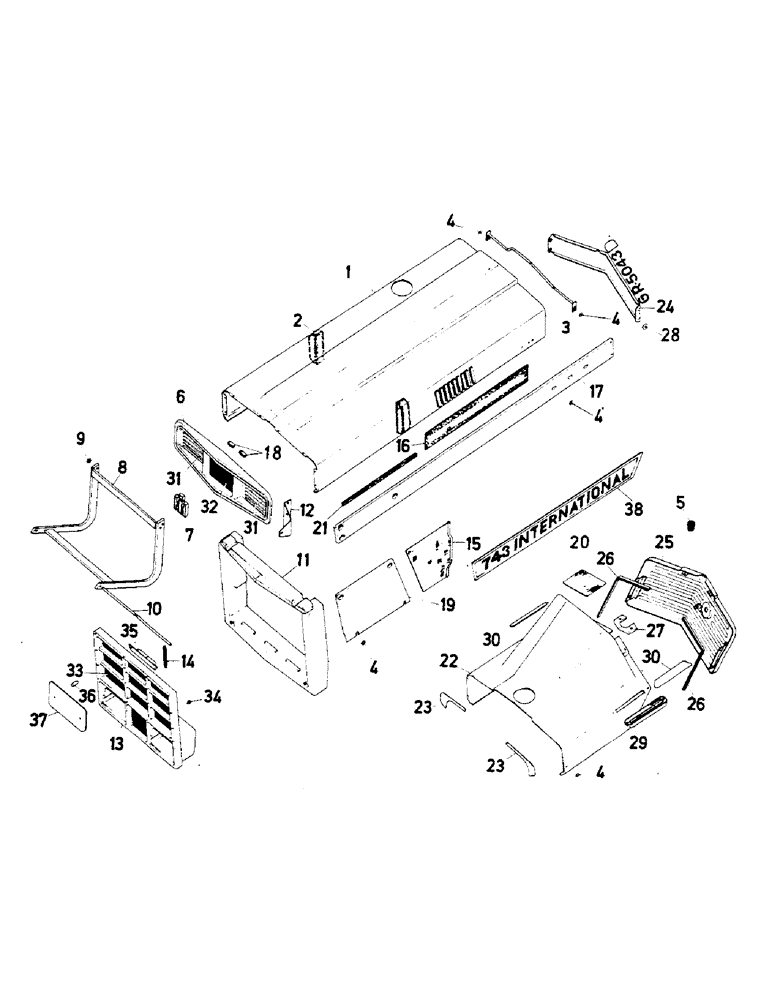

Запчасти Case IH 844S (13-02) - ENGINE HOOD, RADIATOR GRILLE (05) - SUPERSTRUCTURE

1

3140090R22

HOOD ASSY.

ENGINE - 743/745S/844S -

1шт.

1

3225517R91

COWL

HOOD, ENGINE - 743/745S - - FOR FRANCE -

1шт.

1

3226302R92

HOOD

ENGINE - 844S - - FOR SWEDEN -

1шт.

1

3225003R92

HOOD ASSY.

ENGINE - 743/745S/844S - - USED WITH 3224882R91 -

1шт.

2

3216841R1

STRIP-GASKET

PLASTIC

2шт.

3

3147870R91

SUPPORT

BRACKET, "U" - FOR HOOD LOCK

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

4

3058250R1

WASHER

22шт.

5

716494R1

PLUG

2шт.

6

3141013R91

GRILLE

UPPER - WITH ITEMS 31, 32, 40 -

1шт.

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

BOLT, M5 X 12 MM

8шт.

934871R1

NUT,M5, Cl 5

8шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

8шт.

7

120397C1

EMBLEM CASE/IH

PLATE, NAME -IH-

1шт.

931373R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 9.5

2шт.

8

3140719R12

BRACKET

HINGE

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

9

20803R1

WASHER

AS REQUIRED

1шт.

10

3140721R1

ROD

HINGE

1шт.

11

3145687R2

FRAME

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Course Threads

2шт.

12258R1

WASHER

2шт.

12

3140728R11

BRACKET

ANGLE, LH

1шт.

12

3140729R11

BRACKET

ANGLE, RH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

1шт.

13

3141785R91

GRILLE ASSY

WITH 33-35

1шт.

14

716294R1

SPRING

1шт.

15

3145667R1

GRATE

LH

1шт.

15

3145668R1

GRATE

RH

1шт.

16

3224360R2

STRIP

PLATE, INSULATING

1шт.

17

3145693R1

PANEL, SIDE

LH - 743/745S -

1шт.

17

3145691R1

PANEL, SIDE

LH - 844S -

1шт.

17

3145694R1

PANEL, SIDE

RH - 743/745S -

1шт.

17

3145692R1

PANEL, SIDE

SPARE PART RH - 844S -

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

18

3217816R1

CAP

4шт.

19

3145688R1

SIDE PLATE

PANEL, LH

1шт.

19

3145689R1

SIDE PLATE

PANEL, RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

20

3217504R1

SEALING STRIP

PLATE, RUBBER

1шт.

21

3233428R1

STRIP

RUBBER

2шт.

22

3221766R1

SHEET, FUEL TANK - 743/745S -

1шт.

22

3225515R92

HOOD ASSY.

SHEET, FUEL TANK - 743/745S - - FOR FRANCE -

1шт.

22

3225516R91

COWL

SHEET, FUEL TANK - 844S -

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

711793R1

GROMMET

1шт.

3148524R1

SEALING STRIP

STRIP, PROTECTION 210 MM LENGTH

1шт.

23

3145701R1

SUPPORT

HOOD

2шт.

24

3145981R91

PANEL

WITHOUT CAB

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

2шт.

25

3145702R92

PANEL

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

10шт.

120385

WASHER,3/16"

10шт.

26

3145707R1

STRIP

RUBBER

2шт.

27

3146378R1

SUPPORT

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120385

WASHER,3/16"

4шт.

28

16038R1

WASHER

2шт.

29

3145759R1

GUIDE

PTO LEVER

1шт.

931601R1

SELF-TAP SCREW,Slotted Oval Hd, M5.5 x 25

2шт.

30

3145708R1

COVER

2шт.

31

3141922R1

GRILLE

2шт.

32

3141923R1

GRILLE

1шт.

33

3141780R1

GRILLE

1шт.

931519R1

SELF-TAP SCREW,Hex Hd, M6.3 x 25

2шт.

34

3141783R1

PIN

1шт.

35

3141776R1

BRACKET

1шт.

36

905284R1

LOCK PIN,M10 x 30, Slotted

SLEEVE, SPACER

2шт.

37

3146234R2

SUPPORT

FOR NUMBER PLATE

1шт.

931374R1

SELF-TAP SCREW,Pan Hd, M6.3 x 45

2шт.

38

1091668R1

PRODUCT GRAPHIC

LH - INTERNATIONAL 743 -

1шт.

38

1091670R1

PRODUCT GRAPHIC

LH - INTERNATIONAL 745S -

1шт.

38

1091221R1

PRODUCT GRAPHIC

LH - INTERNATIONAL 844S -

1шт.

38

1091473R1

DECAL

PRODUCT-GRAPHIC, LH - INTERNATIONAL 845 - - FOR FRANCE -

1шт.

38

1091669R1

PRODUCT GRAPHIC

RH - INTERNATIONAL 743 -

1шт.

38

1091671R1

PRODUCT GRAPHIC

RH - INTERNATIONAL 745S -

1шт.

38

1091222R1

PRODUCT GRAPHIC

RH - INTERNATIONAL 844S -

1шт.

38

1091474R1

DECAL

PRODUCT-GRAPHIC, RH - INTERNATIONAL 845 - - FOR FRANCE -

1шт.
